Product Description

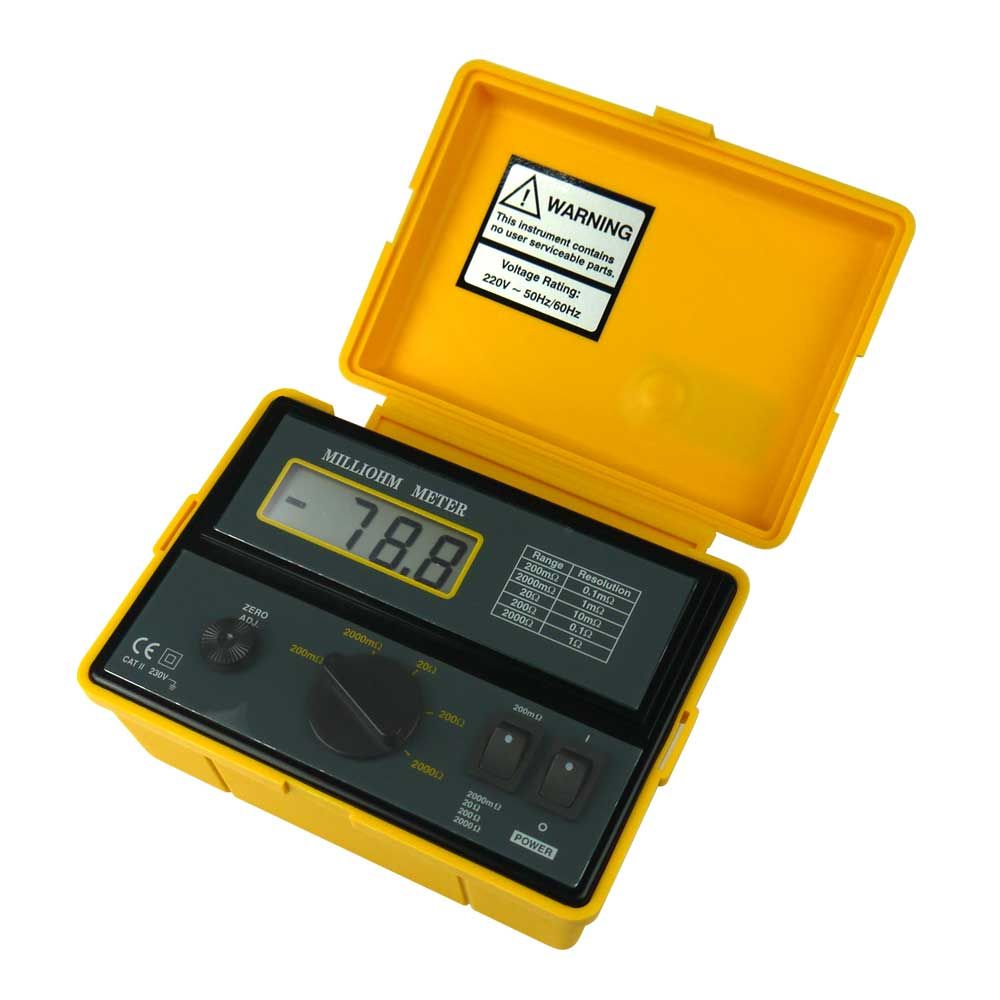

Lutron MO-2001 MilliOhm Meter

CV. Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Features Lutron MO-2001 MilliOhm Meter

4 terminal devices for accurate measurement of very low resistance.
Ideal for measuring the resistance of the motor coil, transformer, PCB layout.
Ideal for testing protective conductors, lightning conductors and welded points.
Wide measuring range, 0.1 m ohm – 2000 ohm, 5 ranges.
18 mm, large size LCD display, easy to read-out.
LSI circuit provides high accuracy, reliability and durability.
Built-in over input indication.

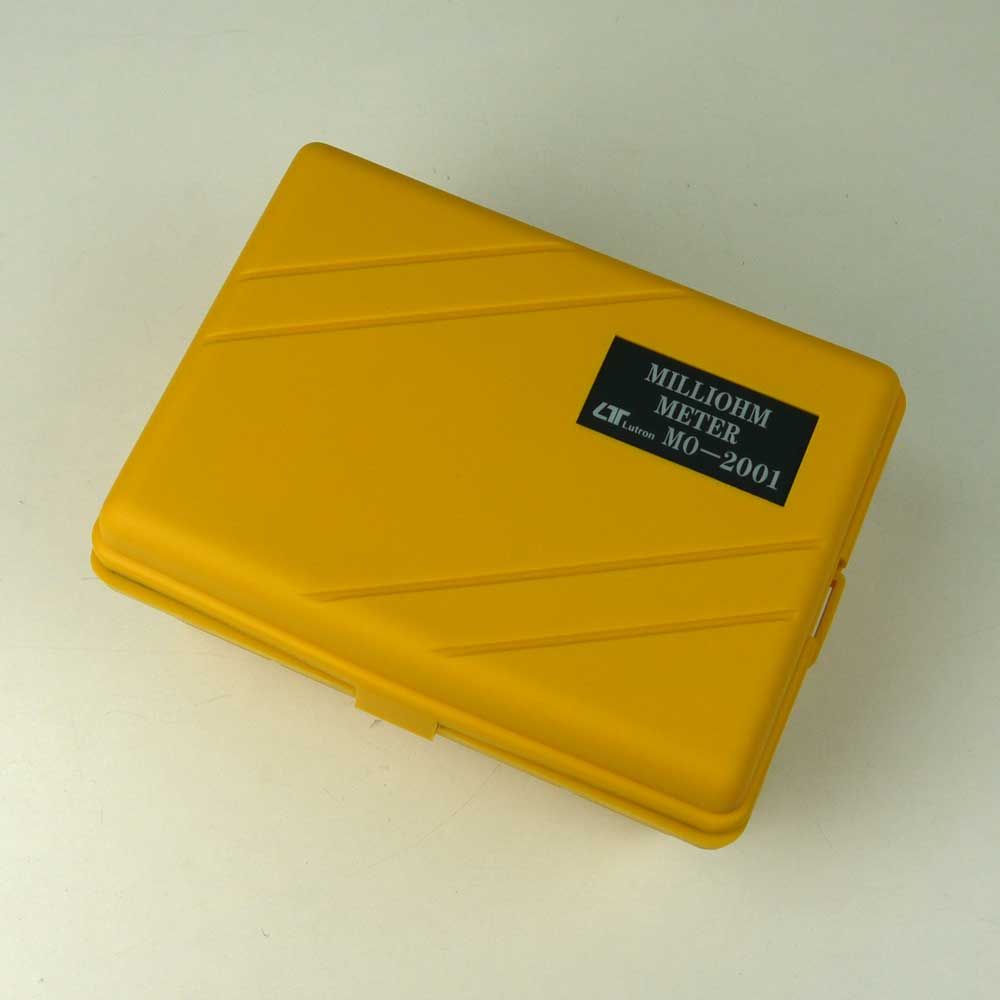

Durable & portable housing plastic case with the front protective cover.

Specifications Lutron MO-2001 MilliOhm Meter

Display: 18 mm (0.7″) LCD ( Liquid Crystal Display). Max. indication 1999.
Range: 200 m ohm, 2,000 m ohm, 20 ohm, 200 ohm, 2000 ohm.
Zero Adjustment: External adjustment for zero value of the display.
Input Terminal: 4 terminal input, accurate for low ohms measuring.
Over: input Indication Indication of “1”.
Sampling Time: Approx. 0.4 sec.
Operating Temp.: 0 to 50 ( 32 to 122 ). ℃ ℃℉ ℉
Operating Humidity: Less than 80 % R.H..
Power Supply: AC 110V 15%, 50/60 Hz or AC 220V/240V 15%, 50/60 Hz.
Power Consumption: Approx. 2 VA.
Dimension: 160 x 120 x 85 mm, with housing front cover.
Weight: Approx. 680 g (1.5 LB).

Standard Accessories:

Power cable………………………………….. 1 PC.
4 wire with 2 clips…………………………… 1 pair
Instruction Manual………………………….. 1 PC.

Lutron MO-2001 – Datasheet
