Description

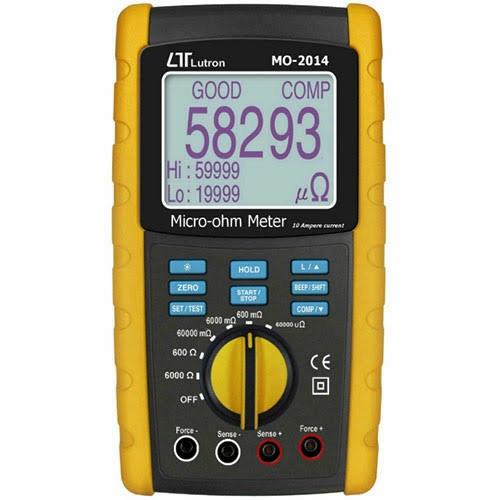

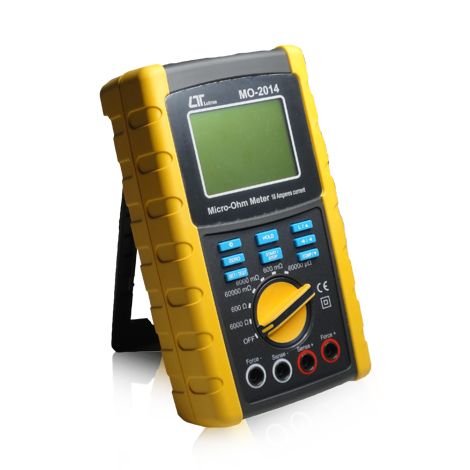

Lutron MO-2014 Micro Ohm Meter
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
4 Terminal devices for accurate measurement of very low resistance
Features Lutron MO-2014 Micro Ohm Meter
- 4 terminal devices for accurate measurement of very low resistance
- Ideal for measuring the resistance of components precisely
- Ideal for testing protective conductors, lightning conductors and welded points
- Maximum test current is 10A (60000uΩ range only)
- Have two working mode , Resistive and Inductive mode, Normal is resistive mode
- Good / Fail set-function for input quality control
- Built-in in buzzer sound (GOOD STATUS) to assist the Q.C. judgment
- Especial “CALCULATE” function to measure cable / wire length
- Wide measuring range, 1 uΩ – 6K Ω , 6 ranges
- Large size and back-light LCM display, easy read-out
- Built-in over input protection
- Durable bench type housing plastic case stand
- Warning Setup : Warning LCD Indicator, Buzzer
Specifications Lutron MO-2014 Micro Ohm Meter
| Test Range (Test Current) | * 60000 uΩ ( 10 A DC ) * 600 m Ω ( 1 A DC ) * 6000 mΩ ( 100 mA DC ) * 600000 mΩ ( 10 mA DC ) * 600 Ω ( 1 mA DC ) * 6000 Ω ( 100 uA DC ) |
|---|---|
| Warning Setup | * Warning LCD Indicator * Buzzer |
| Operating Temp | 0 to 50℃ ( 32 to 122℉ ) |
| Operating Humidity | Less than 80 % R.H |
| Power Supply | * DC 1.5 V , AA (UM-3)Battery X 8 PCs * AC to DC 9V Power adapter |
| Fuse protect | * 10 A / 250 V * Size : 6.3 X 32 mm dia |
| Dimension | 225 x 125 x 64 mm ( 8.86 x 4.92 x 2.52 inch) |
| Weight | Approx. 790 g ( 1.74 LB ) |

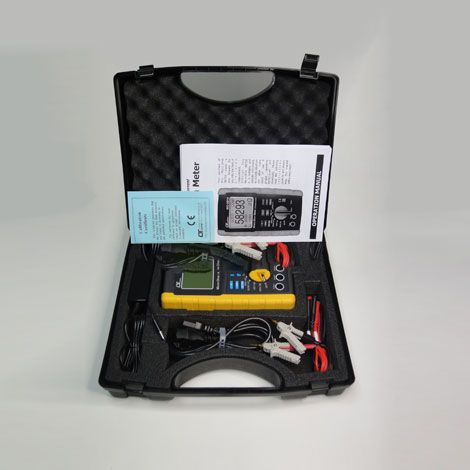

Standard Accessories:
- 4 wire with 2 Kelvin clips………………1 pair
- Instruction Manual………………………1 PC
- AC/DC 9V power adapter………………… 1 set
- Carrying case, CA-08……………………… 1 PC
Optional Accessories:
- USB cable, USB-01
- RS232 cable, UPCB-02
- Data Acquisition software, SW-U801-WIN., SW-E802
- SD card data recorder, DL-9602SD
Lutron MO-2014 – Datasheet
