Product Description

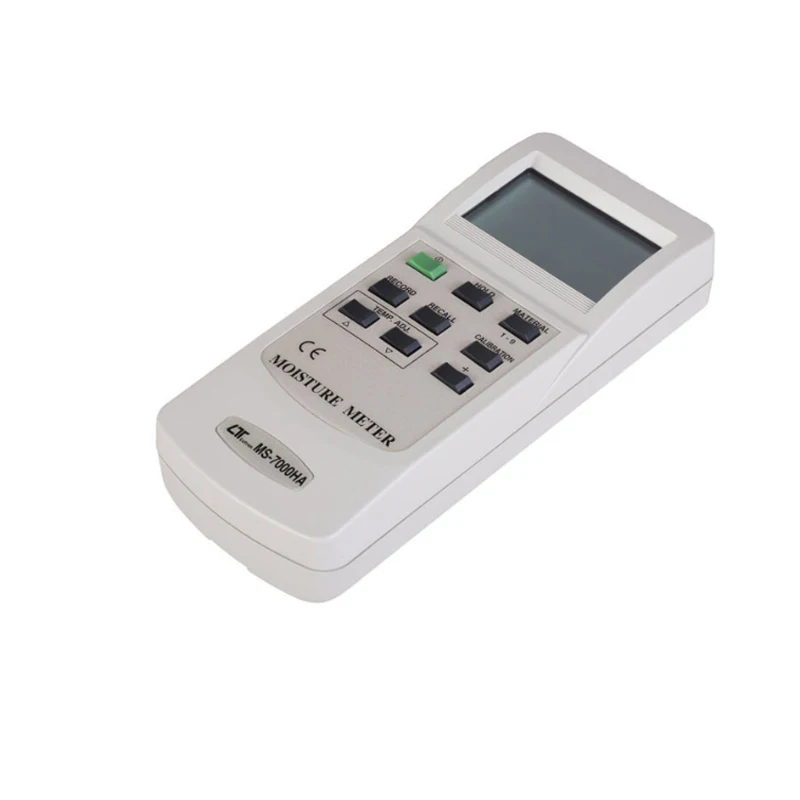

Lutron MS-7000HA Moisture Meter
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Features Lutron MS-7000HA Moisture Meter
- Measure moisture content over range 9 % to 30 %
- 9 material species groups in memory, calibrations for about 150 different species of wood/timber are provided
- Built-in self-calibration circuit
- 0 to 50 manual temp. compensation setting
- Microprocessor circuit assures maximum possible accuracy, provides special functions and features
- Super large LCD with dual display
- Heavy duty & compact housing case, designed for easy carry out & operation
- Records Maximum & Minimum reading with recall
- Data hold function to freeze the desired value on display
- Auto shut off saves battery life
- Built-in low battery indicator
- Separate pin type moisture probe, easy operation. & remote measurement
Specifications Lutron MS-7000HA Moisture Meter
- Applications: For surveying buildings for dampness and for the rapid determination of the moisture content of wood/timber
- Principal: Used the 2 pins electrode to measure the conductive ability of the species, then converter to the reading of % ” Moisture of Content “
- Default Memory for the species: 9 material species groups in memory, calibrations for about 150 different species of wood are provided
- Circuit: Custom one-chip of microprocessor LSI circuit
- Display: 13 mm ( 0.5″ ) super large LCD display, dual function meter’s display
- Measurement: Measure moisture content over range 9 % to 30 %
- Probe: Separate 2 pins moisture electrode
- Temperature Compensation: Manual temperature compensation of the meter in the range of 0 to 50 ℃
- Calibration: Built-in self-calibration circuit by push button on front panel
- Data Hold: By push button on front panel
- Memory Recall: Records Maximum & Minimum reading value
- Power off: Auto shut off, saves battery life, or manual off by push button
- Sampling Time: Approx. 0.8 second
- Operating Temperature: 0 to 50 . ℃
- Operating Humidity: Less than 80% R.H
- Power Supply: 006P, MN1604 ( PP3 ) DC 9V battery or equivalent, recommend use the alkaline or heavy duty battery
- Power Current: Approx. DC 6.5 mA
- Weight: 330 g/0.73 LB
- Dimension:
º Main instrument: 180 x 72 x 32 mm ( 7.1 x 2.8 x 1.3 inch )
º Moisture Probe: Round 23 mm Dia. x 165 mm. ( ROUND 0.9 inch Dia. X 6.5 inch )
Accessories Included
- Instruction manual………………………………………………….. 1 PC
- Moisture probe………………………………………………………..1 PC
- Extra contact pins…………………………………………………….10 PC
- Hard Carrying Case…………………………………………………..1 PC
Lutron MS-7000HA – Datasheet
