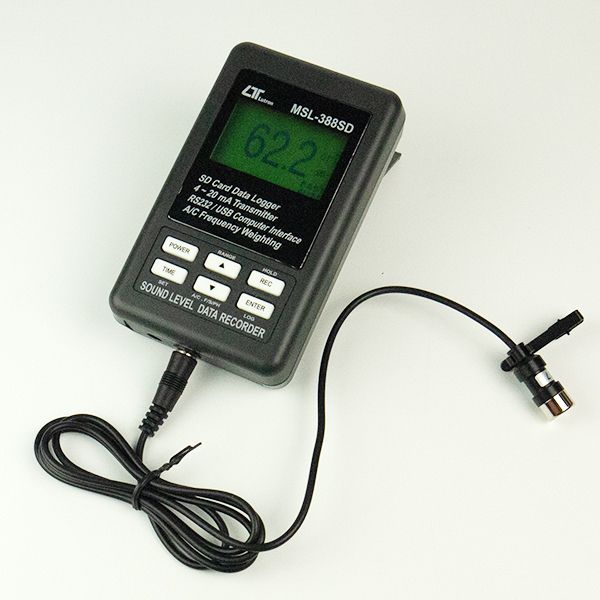

Lutron MSL-388SD Sound Level Data Recorder

Category Brand

Lutron MSL-388SD Sound Level Data Recorder

  • Frequency and Time weighting is designed to comply with IEC 61672 class 2.
  • The A&C weighting network is standard compliant.
  • The LCD is dot-matrix with backlight and easy reading.
  • Data logger and sound level meter.
  • Standard 0.5″ microphone head.
  • Time-weighted dynamic characteristics mode (Fast & Slow).
  • Condenser microphone for high accuracy & long term stability.

Product Description

Lutron MSL-388SD Sound Level Data Recorder

Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Innovation and easy operation, the computer doesn’t need to prepare extra software, after running the datalogger, just take out the SD card from the meter and plug the SD card into the computer, it can download all measured values ​​with time information (year/month/date/hour/minute /sec ) to Excel directly, then users create further data or chart analysis themselves.

Features Lutron MSL-388SD Sound Level Data Recorder

  • Frequency and Time weighting is designed to comply with IEC 61672 class 2
  • The A&C weighting network is standard compliant
  • The LCD is dot-matrix with backlight and easy reading
  • Data logger and sound level meter
  • Standard 0.5″ microphone head
  • Time-weighted dynamic characteristics mode (Fast & Slow)
  • Condenser microphone for high accuracy & long term stability
  • Memory function to store Max. & Min. mark
  • Hold function
  • Real time data logger. Recording device from external memory device (SD memory card), Real-time
  • Datalogger, Built-in Clock and Calendar, Real-time data recorder, sampling time set from 5,10,30,60,120,300,600,1800,3600 seconds
  • PEAK Hold function
  • SD card capacity: 1GB to 16GB
  • Can auto power off or manual power off

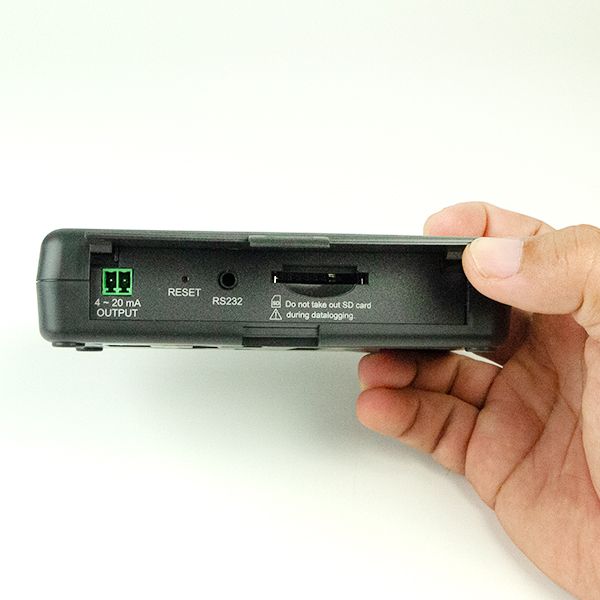

  • Analog output 4-20 mA
  • Microcomputer circuit, high accuracy
  • Powered by UM4/AAA ( 1.5 V ) x 6 batteries or 9V DC adapter
  • RS232/USB PC PC interface

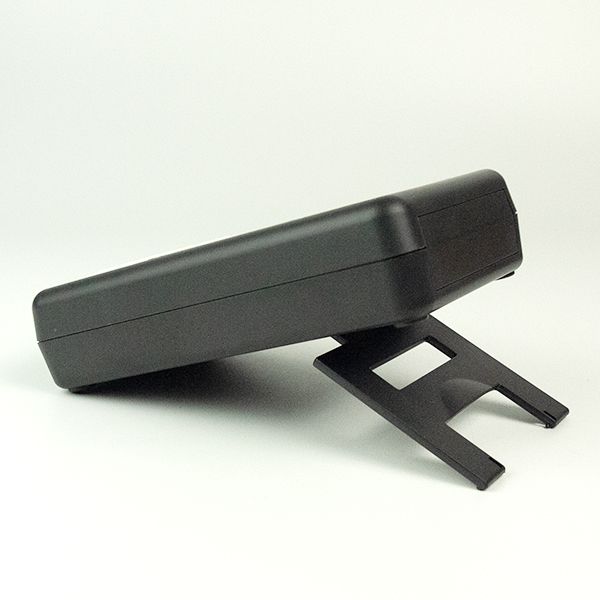

  • Heavy duty & compact housing case

Specifications Lutron MSL-388SD Sound Level Data Recorder

CircuitCustom one-chip LSI microprocessor circuit
Featuring* LCD Size: 50 mm x 30 mm
* LCD with backlight (ON/OFF)
Measurement TypeSPL : Sound pressure level
Measuring RangeSPL:30-80.50-100.80-130 , Auto 30 – 130 dB
Resolution0.1 dB
Function* dB (frequency weighting A & C)
* Time weighting (Fast, Slow)
* Data hold, PEAK HOLD
* Record (Max., Min.)
Accuracy* The characteristics of the “A” frequency weighted network comply with IEC 61672-1-2013 class 2.
* Under 94 dB input signal, the accuracy is:
– 31.5 Hz reading ± 3.0 dB
– 63 Hz reading ± 2.0 dB
– 125 Hz reading ± 1.5 dB
– 250 Hz reading ± 1.5 dB
– 500 Hz reading ± 1.5 dB
– 1 KHz reading ± 1.0 dB
– 2 KHz reading ± 2.0 dB
– 4 KHz reading ± 3.0 dB
– 8 KHz reading ± 5.0 dB
Frequency Weighting Network* Characteristics A & C.
* Weighting : Characteristics simulated in response to “Listen to Human Ears”. Usually, when measuring environmental noise levels, always select the A weighting.
* Weighting C: Characteristics close to the response “FLAT”. Typical, suitable for checking engine noise (Q.C.check) & knowing the sound pressure level of the equipment being tested.
Data storageTo freeze measurement values
PEAK HoldTo Maintain the peak measurement value (max.)
Time weighting (FAST & SLOW)* Fast – t = 125 ms The “Fast” range is simulated by weighting human ear response times.
* Slow – t = 1 s The “Slow” range is easy to get the average value of the sound vibration level.
SPL selector function* Range: 30-80dB, 50-100dB, 80-130dB
* Auto range:30~130dB
Frequency31.5 to 8000 Hz
Microphone typeElectric condenser microphone
Microphone sizeOuter size, DIA 12.7 mm. (1/2 inch)
VR calibrationBuild in external calibration (lock), easy to calibrate at 94 dB level with lock button
CalibratorB & K (Bruel & kjaer), MULTIFUNCTIONAL ACOUSTIC CALIBRATOR Type 4226
Datalogger Sampling Timing RangeAuto 5,10,30,60,120,300,600,1800, 3600 seconds
Memory deviceexternal memory device: SD memory card. 1GB to 16GB
Advanced settings* Set clock time (Year/Month/Date, Hour/Minute/Second)
* Set sampling time
* Automatic shutdown management
* Set Beep sound ON/OFF
* SD card setting decimal point
* Format SD memory card
More IndicationShow ” – – – -“
Data StoreFreezes display reading
Memory RecallMaximum & Minimum values
Display Sampling TimeApprox. 1 second
Data OutputPC PC RS 232/USB interface
Power OffAuto power off (Approx. 10 Minutes) saves battery life or manual power off at the push of a button
Operating Temperature0 to 50℃
Operating HumidityLess than 85% R.H
Power Supply* Alkaline or heavy duty DC 1.5 V batteries ( UM4, AAA ) x 6 PCs, or equivalent
* DC 9V adapter input. (AC/DC power adapter is optional)
Power CurrentNormal operation (without SD card saving data and LCD Backlight OFF)
Approximately. DC 8.1 mA* When SD card saves data but and LCD Backlight is OFF): Approx. DC 22~34 mA.
* If the LCD backlight is on, the power consumption will increase by approx. DC 2.4 mA.
Weight230 g/ 0.51 LB. (without battery)
Dimensions132 x 80 x 32mm. (5.2 x 3.1 x 1.3 inches)



Accessories Included

  • Instruction manual…………………………………..1 PC
  • Plug of 4 to 20 mA output ( SKT-AS385 )…….. 1 PC
  • Micophone with clip…………………………………1 PC
  • AC to DC 9V adapter………………………………..1 PC

Optional Accessories

  • Sound calibrator ( 94 dB ), SC-941
  • Sound calibrator ( 94/114 dB ), SC-942
  • Sound wind shield ball, SB-01
  • SD Card
  • USB cable, USB-01
  • RS232 cable, UPCB-02
  • Data Acquisition software, SW-U801-WIN
  • Excel data Acquisition software, SW-E802





Lutron MSL-388SD – Datasheet


Produk asli Kami distributor langsung Lutron. Harga murah dan berkualitas bergaransi tentunya. dapat di kirim ke seluruh wilayah indonesia.

Dalam pengiriman produk yang pelanggan beli, sebelumnya sudah kami cek untuk memastikan produk dalam keadaan baik dan siap kirim.




Additional Information

Brand

Lutron

Model

MSL-388SD

Made In

Taiwan

Weight

1 kg

Accessories Included

Instruction manual
Plug of 4 to 20 mA output ( SKT-AS385 )
Micophone with clip
AC to DC 9V adapter
