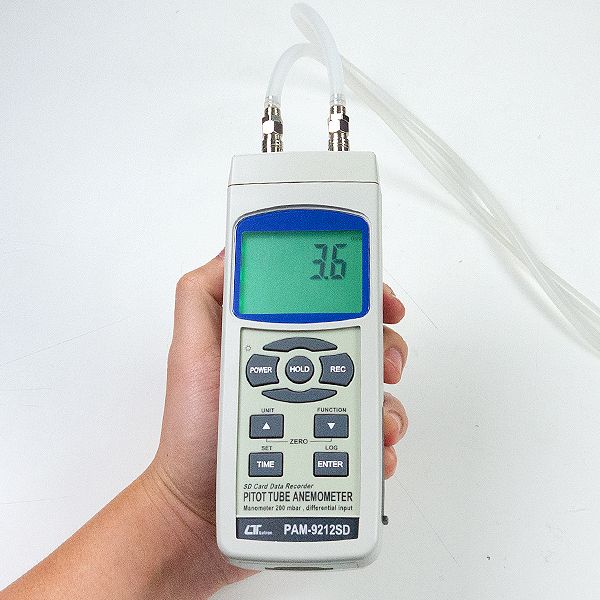

Lutron PAM-9212SD Pitot Tube Anemometer

Category Brand

Lutron PAM-9212SD Pitot Tube Anemometer

  • Air Velocity : 1 to 100.0 m/s
  • Dual & differential input, 200 mbar max. range
  • Auto shut off saves battery life
  • Zero button on the front panel, easy to offset the zero value
  • Microprocessor circuit assures maximum possible accuracy, provides special functions and features
  • Super large LCD display with contrast adjustment for best viewing angle

Product Description

Lutron PAM-9212SD Pitot Tube Anemometer

Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Pitot anemometers for Air Velocity and Air pressure cover a wide range of applications. To measure the wind speed, such as industrial plants, laboratories (labs),
ventilation systems or hospitals, etc.

Features Lutron PAM-9212SD Pitot Tube Anemometer

  • Air Velocity : 1 to 100.0 m/s

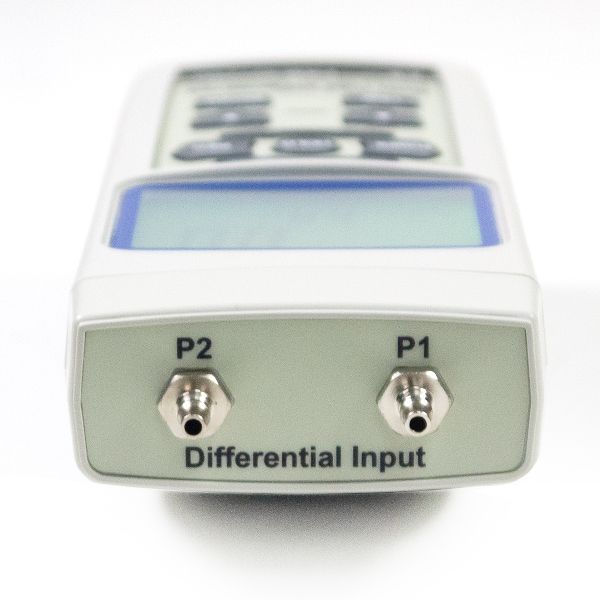

  • Dual & differential input, 200 mbar max. range
  • Application : Industrial, laboratory, heating, ventilation, medical hospital, used for air or not corrosive and not ionized gas & liquid
  • Sensor is built inside the housing
  • Single plugs for pipe connection
  • Auto shut off saves battery life
  • Zero button on the front panel, easy to offset the zero value
  • Microprocessor circuit assures maximum possible accuracy, provides special functions and features
  • Super large LCD display with contrast adjustment for best viewing angle.
  • Real time data logger, save the data into the SD memory card and can be downloaded to the Excel, extra software is no need
  •  LCD with green light backlight, easy reading
  • It can default auto power off or manual power off
  • Data hold, record max. and min. reading
  • Power by UM3/AA (1.5 V) x 6 batteries or DC 9V adapter

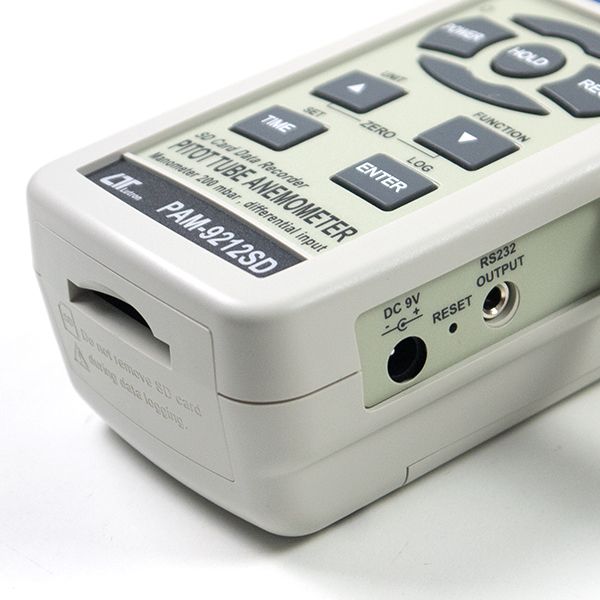

  • RS232/USB PC COMPUTER interface

Specifications Lutron PAM-9212SD Pitot Tube Anemometer

  • Circuit: Custom one-chip of microprocessor LSI circuit.
  • Display:
    * LCD size : 51 mm x 37 mm
    * LCD with green backlight ( ON/OFF ).
  • Display units:
    * Air vilocity : m/s, km/h, FPM, mph, knots
    * Air pressure: psi , inch Hg , inch H2O , h PA , kPA mbar, Kg/cm2, mm Hg , meter H2O , Atmosphere
  • Measurement Function: Air vilocity & Dual differential input, data hold, zero/relative, memory.
  • Zero adjust: Push button on the front panel.
  • Sensor:
    * Sensor is built inside the housing
    * Piezoelectric sensor.
    * Used for dry, non-corrosive and non-ionic air and gas only.Liquid is prohibited.
  • Datalogger Sampling Time Setting range:
    * Auto 1 sec to 8 Hour 59 Minute 59 sec.
    * Manual: Push the data logger button once will save data one time.
  • Data error no.: ≦ 0.1 % no. Of total saved data typically.
  • Memory Card: SD memory card. 1 GB to 16 GB.
  • Advanced setting:
    * Set clock time (Year/Month/Date,Hour/Minute/ Second )
    * Set sampling time
    * Auto power OFF management
    * Set beep Sound ON/OFF
    * Decimal point of SD card setting
    * SD memory card Format
    * Air density setting
  • Data Hold: Freeze the display reading.
  • Memory Recall: Maximum & Minimum value.
  • Sampling Time of Display: Approx. 1 second.
  • Data Output: RS 232/USB PC computer interface
  • Operating Temperature: Meter: 0 to 50 ℃.
  • Operating Humidity: Less than 85% R.H.
  • Power Supply:
    * Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
    * DC 9V adapter input. ( AC/DC power adapter is optional ).
  • Power Current:
    * Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 7 mA.
    * When SD card save the data and LCD Backlight is OFF) : Approx. DC 25 mA.
  • Weight: 265 g / 0.59 LB
  • Dimension: Meter: 190 x 68 x 45 mm (7.5 x 2.7x 1.8 inch)

Accessories Included:

  •  Instruction manual…………………………………..
  • PLug for quick coupler…………………………… 2 PCs.
  • Pito tube 018……………………………………..1 PC
  • Silicon Soft tube 01( 50 cm )…………………2 PCs

Optional Accessories:

  • SD memory card
  • AC to DC 9V adapter
  • USB cable, USB-01
  • RS232 cable, UPCB-02
  • Data Acquisition software, SW-U801-WIN





Lutron PAM-9212SD – Datasheet


Produk asli Kami distributor langsung Lutron. Harga murah dan berkualitas bergaransi tentunya. dapat di kirim ke seluruh wilayah indonesia.

Dalam pengiriman produk yang pelanggan beli, sebelumnya sudah kami cek untuk memastikan produk dalam keadaan baik dan siap kirim.




Additional Information

Brand

Lutron

Model

PAM-9212SD

Made In

Taiwan

Weight

1,4 kg

Accessories Included

Instruction manual
PLug for quick coupler
Pito tube 018
Silicon Soft tube 01( 50 cm )
