Product Description

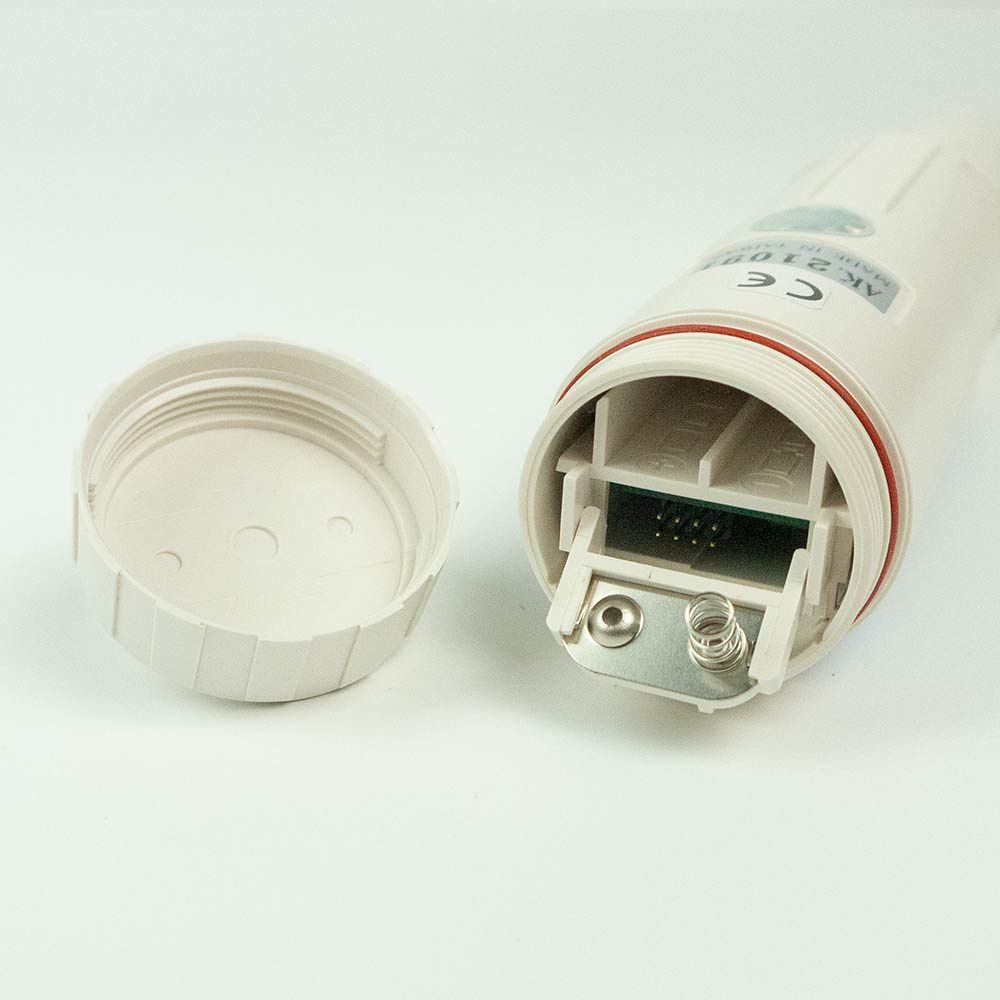

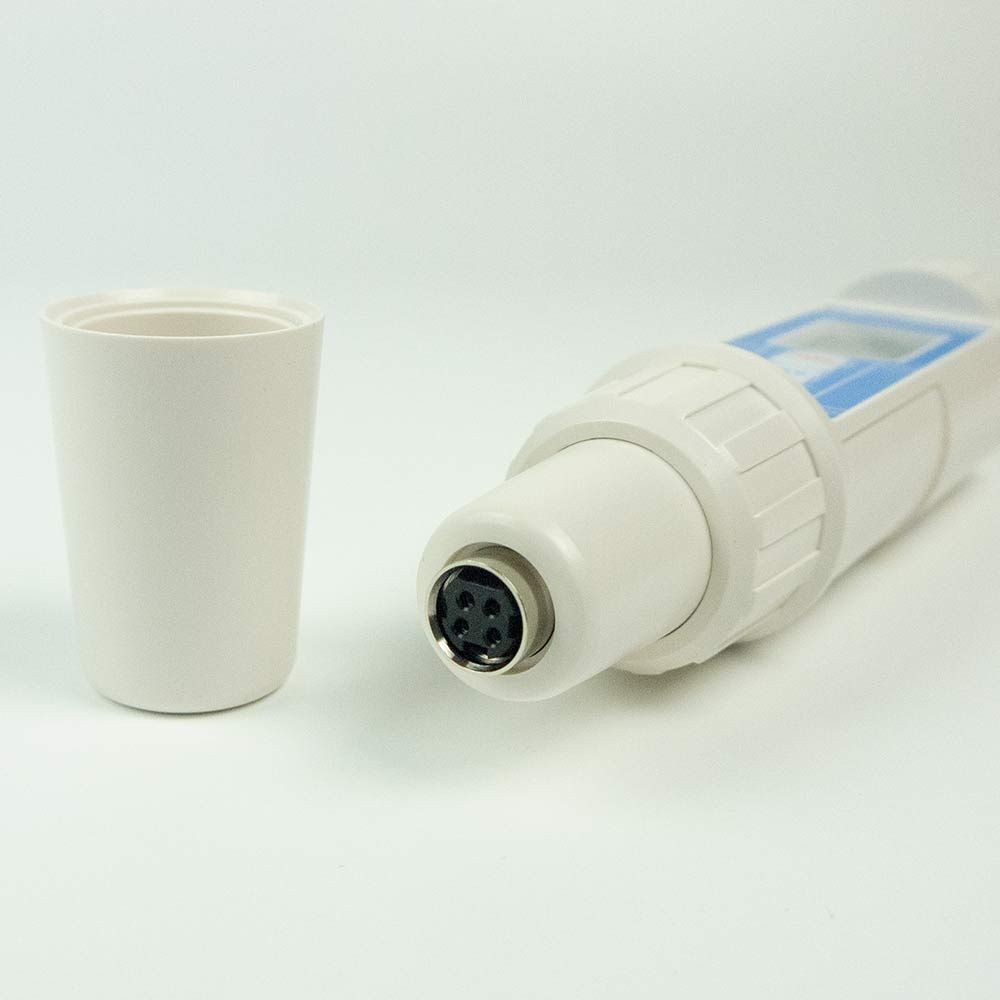

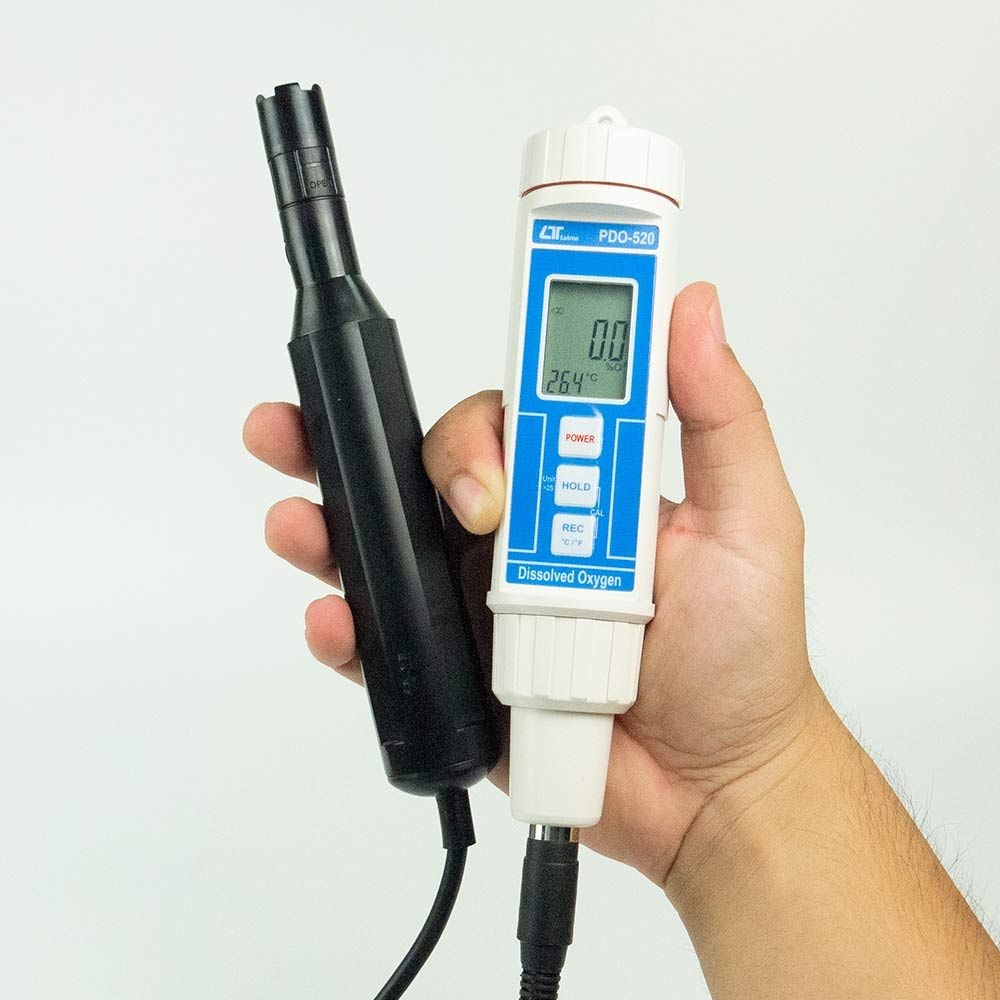

Lutron PDO-520 Dissolved Oxygen Meter
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
PDO-520 Separate probe cable length 4M
Dissolved Oxygen Meter with Separate probe cable length 4M (changeable sensor). The Polarograpic Cell sensor to measure oxygen in the water and temperature with high-accurate. Auto calibration, Auto temperature compensation, Data hold, Record Max./Min., Auto power off. LCD display with the simultaneous value in the same time. Light weight, compact size, portable, design for one-hand used with IP67 dust & water proof.
Available for wide applications, such as aquarium, beverage, fish hatcheries, food processing, photography, laboratory, quality control, school & colleges, swimming pools, water conditions.
Features Lutron PDO-520 Dissolved Oxygen Meter
- This Digital Oxygen Meter is supplied with a polarographic type probe with an incorporated Temp. sensor which serves for precise Dissolved Oxygen ( DO ) and Temp. measurement
- Heavy duty dissolved oxygen probe, probe head size can connect with BOD bottle
- Separate probe with 4 meters cable
- Automatic Temp. compensation from 0 to 50 ℃ for sensor
- Build in temperature ℃,℉ measurement
- Auto power off to save the battery life
- Data hold function for freezing the desired value
Specifications Lutron PDO-520 Dissolved Oxygen Meter
| Measurement | Range | Resolution | Accuracy (23 ± 5°C) |
| Dissolved Oxygen | 0 to 20.0 mg/L | 0.1 mg/L | ± 0.4 mg/L |
| Oxygen in Air (For reference only) |
0 to 100.0% | 0.1% O2 | ± 0.7% O2 |
| Temperature | 0 to 50°C | 0.1°C | ± 0.8°C |
| Circuit | Custom one-chip of microprocessor LSI circuit | ||
| Sensor Structure | The polarographic type oxygen probe with an incorporated Temp. sensor. | ||
| Sampling Time | Approx. 1 second | ||
| Probe Dimension/ Length | ø28 x 190 mm/ 4 meters | ||
| Power Requirement | DC 1.5V, Battery AAA x 4 | ||
| Dimension / Weight | 180 x 40 x 40mm / 176g | ||
More Information
| Dimension | 180 x 40 x 40 mm |
|---|---|
| Manufacturer | Lutron |
| Data logger | No |
| Resolution | Dissolved Oxygen: 0.1mg/L. Air Oxygen (For reference only): 0.1% O2 Temperature: 0.1℃ |
| Measurement Range | Dissolved Oxygen: 0 to 20.0 mg/L Air Oxygen (For reference only): 0 to 100.0% Temperature: 0 to 50 ℃ |
| Other Function | ■ Automatic Temp. compensation (ATC.) 0 to 50 ■ Multi-display, show Dissolved oxygen and temperature ■ IP65 Water resistance ■ Records Maximum and Minimum readings with recall. ■ Data hold function for freezing the desired value. |
| Power Supply | Battery AAA x 4 |
| Water resistance | IP65 |
| Sensor Output Interface | No |
| Accuracy | Dissolved Oxygen: ±0.4 mg/L Air Oxygen (For reference only): ±0.7% O2 Temperature: ±0.8℃ |
Accessories Inlcuded
- Oxygen probe, OXPB-11 1 PC
- Soft carrying case 1 PC
- Operation manual .1 PC
- Spare Probe head OXHD-04 2 PC
- Probe-filling Electrolyte OXEL-03 , 1 PC
Optional accesorries
- Battery ( UM-4/AAA ) 1,5 Volt x 4 PCs.
Lutron PDO-520 – Datasheet
