Product Description

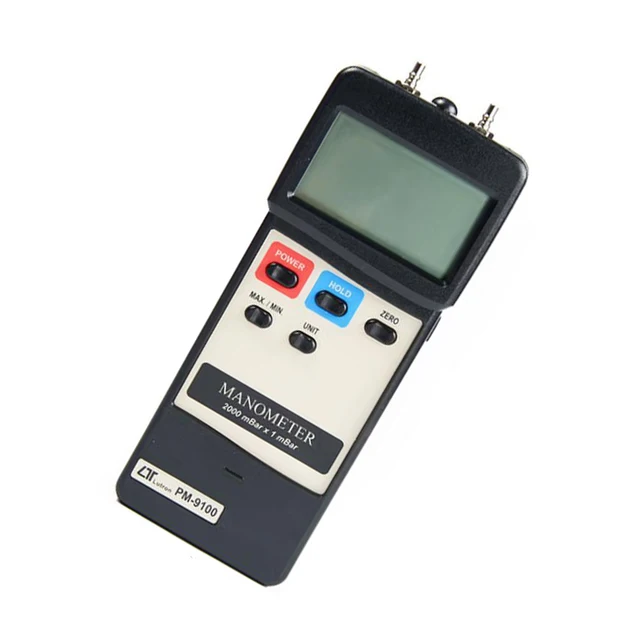

Lutron PM-9100 Manometer 2000 mbar, Dual & differential input
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Manometersare mostly suitable for differential pressure measurements. (Differential Pressure) to measure and calculate the differential pressure between two areas in the same system. which after getting the differential pressure The machine will calculate the flow rate.
Features Lutron PM-9100 Manometer 2000 mbar, Dual & differential input

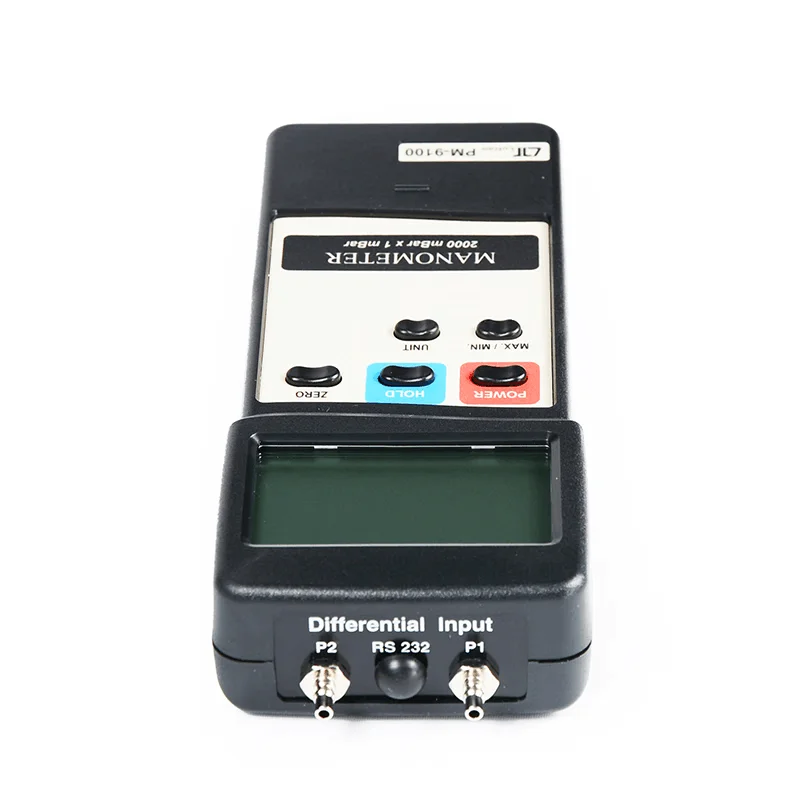

- Dual & differential input, 2000 mbar max. range
- Application : Industrial, laboratory, heating, ventilation, medical hospital, used for air or not corrosive and not ionized gas
- Sensor is built inside the housing
- Single lugs for pipe connection
- 8 kind display units ( m bar, psi, Kg/cm^2, mm/Hg, inch/Hg, meter/H2O, inch/H20, Atmosphere ) select by push button on the front panel
- Auto shut off saves battery life
- Zero button on the front panel, easy to offset the zero value
- Push button gain adjustment, usage for calibration precisely if necessary
- Microprocessor circuit assures maximum possible accuracy, provides special functions and features
- Super large LCD display with contrast adjustment for best viewing angle
- Records maximum & minimum readings with recall
- Data Hold function for stored the desired value on display
- Built-in low battery indicator
- RS 232 PC serial interface, can match the personal computer used as the Data Logger, Recorder…. & other modern pressure measuring system
Specifications Lutron PM-9100 Manometer 2000 mbar, Dual & differential input
Circuit | Microprocessor LSI circuit | |
Display | 61 mm x 34 mm supper large LCD display. 15 mm ( 0.6″ ) digit size | |
Display units | mbar, psi, Kg/cm^2, mm/Hg, inch/Hg meter/H2O, inch/H2O, Atmosphere | |
Function | Dual & differential input, data hold, zero/relative, memory | |
Zero adjust | Push button on the front panel | |
Span adjust | Push button gain adjustment, usage for calibration precisely if necessary | |
Sensor | * Sensor is built inside the housing * Piezoelectric sensor * Used for dry, non-corrosive and non-ionic air and gas only * Liquid is prohibited |
|
Data hold | By push button | |
Data record | Record maximum & minimum readings | |
Data output | RS 232 PC serial interface | |
Power off | Auto shut off, saves battery life, or manual off by push button | |
Sampling time | Approx. 0.8 second | |
Operating temperature | 0 to 50℃ ( 32 to 122℉ ) | |
Operating humidity | Less than 80% R.H | |
Power supply | 006P DC 9V battery(heavy duty) | |
Power current | Approx. DC 8.5 mA | |
Weight | 345 g/0.76 LB | |
Dimension | 180 x 72 x 32 mm ( 7.1 x 2.8 x 1.3 inch ) |
Accessories included:
- Instruction manual…………. 1 PC.
- Hard carrying case………….. 1 PC.
Optional accessories:
- Data acquisition software ( Windows version ), SW-U801-WIN
- RS232 cable, UPCB-01
- USB cable, USB-01
Lutron PM-9100 – Datasheet
