Lutron PM-9117SD Manometer 7000 mbar

Category Brand

Lutron PM-9117SD Manometer 7000 mbar

Differential pressure meter (Difference Pressure) for finding the difference in pressure at 2 points, which is often used in various industries such as hydraulic system pressure measurement, flow direction measurement by different values. pressure resistant, baking industry, paint spraying, etc.

Product Description

Lutron PM-9117SD Manometer 7000 mbar

Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Differential pressure meter (Difference Pressure) for finding the difference in pressure at 2 points, which is often used in various industries such as hydraulic system pressure measurement, flow direction measurement by different values. pressure resistant, baking industry, paint spraying, etc.

Features Lutron PM-9117SD Manometer 7000 mbar

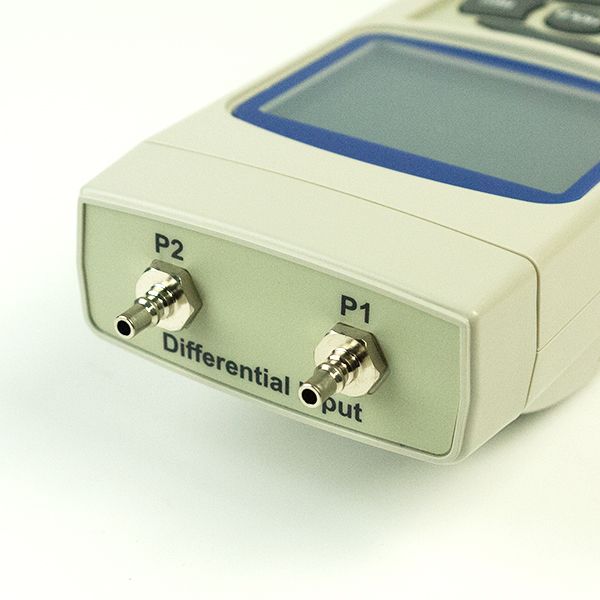

  • Dual & differential input, 7000 mbar max. range
  • Application : Industrial, laboratory, heating, ventilation, medical hospital, used for air or not corrosive and not ionized gas & liquid
  • Sensor is built inside the housing
  • Single lugs for pipe connection
  • 10 kind display units ( mbar, psi, Kg/cm^2 , mm Hg, inch Hg, meter H2O, inch H2O, Atmosphere, hpa , kpa ) select by push button on the front panel
  • Auto shut off saves battery life
  • Zero button on the front panel, easy to offset the zero value
  • Microprocessor circuit assures maximum possible accuracy, provides special functions and features
  • Super large LCD display with contrast adjustment for best viewing angle
  • Setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/hour/minute/second ) to the Excel directly, thenuser can make the further data or graphic analysis by themselves
  • SD card capacity : 1 GB to 16 GB
  • LCD with green light backlight, easy reading
  • It can default auto power off or manual power off
  • Data hold, record max. and min. reading
  • Microcomputer circuit, high accuracy
  • Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter
  • RS232/USB PC COMPUTER interface

Specifications Lutron PM-9117SD Manometer 7000 mbar

Circuit Custom one-chip of microprocessor LSI circuit
Display * LCD size : 51 mm x 37 mm
* LCD with green backlight ( ON/OFF )
Display units psi , inch Hg , inch H2O , hPA , KPA, mbar, Kg/cm^2 , mm Hg , meter H2O , Atmosphere
Measurement Function Dual & differential input, data hold, zero/relative, memory
Zero adjust Push button on the front panel
Sensor * Sensor is built inside the housing
* Piezoelectric sensor
* Used for dry, non-corrosive and non-ionic air and gas only. Liquid is prohibited
Datalogger Sampling Time Setting range * Auto: 1 sec to 8 Hour 59 Minute 59 sec
* Manual : Push the data logger button once will save data one time
Memory Card Advanced setting: SD memory card. 1 GB to 16 GB * Set clock time (Year/Month/Date,Hour/Minute/ Second )
* Set sampling time
* Auto power OFF management
* Set beep Sound ON/OFF
* Decimal point of SD card setting
* SD memory card Format
Data Hold Freeze the display reading
Memory Recall Maximum & Minimum value
Sampling Time of Display Approx. 1 second
Operating Temperature 0 to 50℃
Operating Humidity Less than 85% R.H
Data Output RS 232/USB PC computer interface
Power Supply * Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent
* DC 9V adapter input. ( AC/DC power adapter is optional )
Power Current * Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 7 mA
* When SD card save the data and LCD Backlight is OFF) : Approx. DC 25 mA
* If LCD backlight on, the power consumption will increase approx. 10 mA
Weight 265 g/0.59 LB
Dimension 190 x 68 x 45 mm (7.5 x 2.7x 1.8 inch)



Accessories included

  • Instruction manual……………………..1 PC
  • Hard carrying case……….. 1 PC
  • PLug for quick coupler….. 2 PC

Optional accessories

  • SD memory card ( 4 GB )
  • AC to DC 9V adapter
  • USB cable, USB-01
  • RS232 cable, UPCB-02
  • Data Acquisition software,SW-U801-WIN



Lutron PM-9117SD – Datasheet


Produk asli Kami distributor langsung Lutron. Harga murah dan berkualitas bergaransi tentunya. dapat di kirim ke seluruh wilayah indonesia.

Dalam pengiriman produk yang pelanggan beli, sebelumnya sudah kami cek untuk memastikan produk dalam keadaan baik dan siap kirim.




Additional Information

Brand

Lutron

Model

PM-9117SD

Made In

Taiwan

Weight

1,5 kg

Accessories Included

Instruction manual
Hard carrying case
PLug for quick coupler
