Product Description
Lutron PO2-250 O2 Meter
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

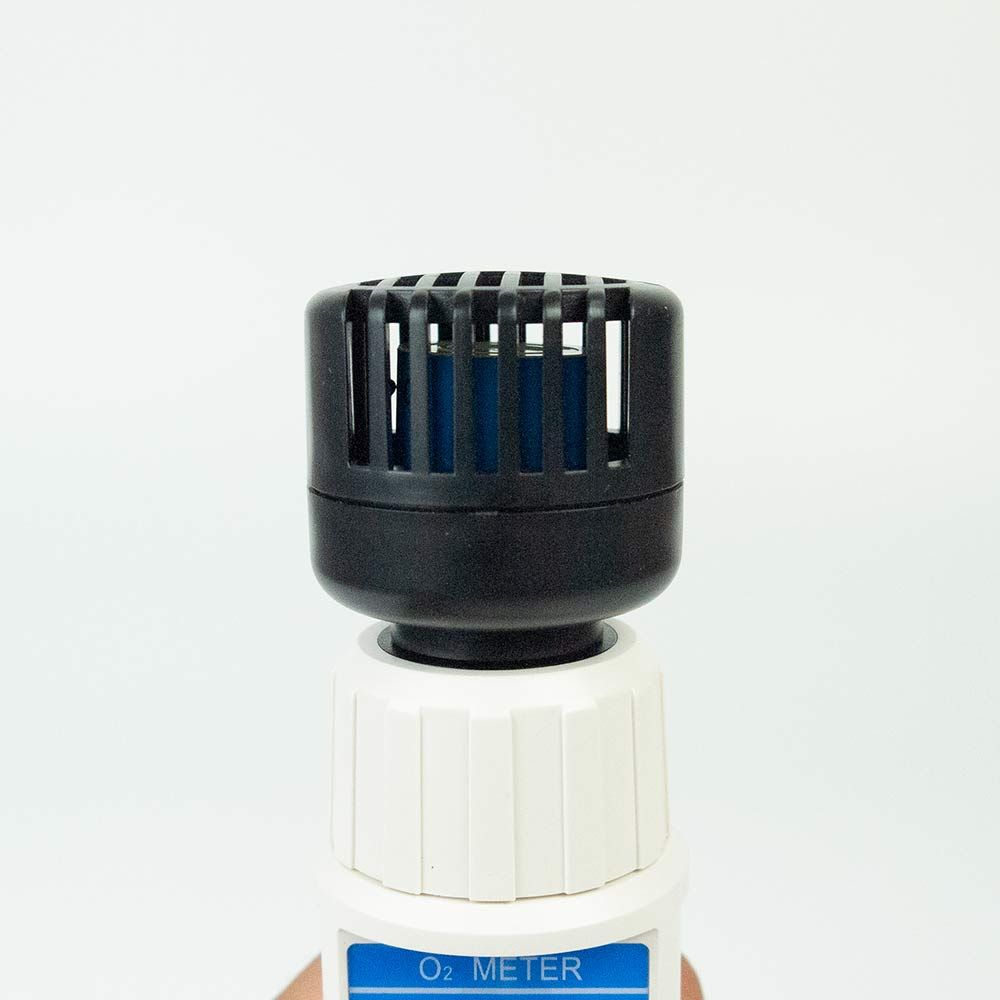

Lutron PO2-250 is a Pen type Oxygen (O 2 ) and Temperature Meter. Galvanic cell type oxygen (O 2 ) sensor with Automatic temperature compensation, high reliability without being affected by CO 2 . Simultaneous value LCD display at the same time, compact size, lightweight design for one hand use, durable ABS plastic housing.
Application such as O 2 monitor, Food industrial (Refrigerator, Vegetable factory), Bio-Technology (Oxygen incubator, Anaerobic cultivator), Security system (Air conditioner and Oxygen shortage alarm system, Fire alarm system), Fuel cell system.
Features Lutron PO2-250 O2 Meter
- O2 ( Air oxygen ) and Temp. ( Air Temp. ) measurement
- O2 measurement range : 0 to 30.0 % x 0.1 %
- Temp. measurement range : 0 to 50 , /
- O2 Buzzer warning : If the measurement value < 18.0 %O2, the buzzer will sound for warning
- Galvanic cell type for O2 sensor
- High reliability Oxygen sensor, not be affected by acidic gases like CO2
- Oxygen sensor with temperature compensated
- Data hold, to freeze the desired reading value
- Auto power off saves battery life
- Operates from DC 1.5V ( UM4/AAA ) x 4 PCs batteries
- Microprocessor circuit ensure high accuracy, and also and also provides special functions and features
- Durable and compact ABS-plastic housing
Specifications Lutron PO2-250 O2 Meter
| Display | LCD size : 28 mm x 19 mm |
|---|---|
| Measurement | O2 ( Air oxygen ) Temperature ( Air Temp. ) |
| Sensor | Oxygen | Galvanic cell type Temperature | Thermistor |
| Circuit | Custom one-chip of microprocessor LSI circuit |
| Data Hold | Freeze the display reading |
| Power off | Auto shut off saves battery life |
| Operating Temperature | 0 to 50 ℃ |
| Operating Humidity | Less than 80% R.H |
| Power Supply | DC 1.5 V battery ( UM4/AAA ) x 4 PCs |
| Power Current | Approx. DC 4.0 mA |
| Weight | 194 g/ 0.43 LB |
| Dimension | 180 x 40 x 40 mm (7.1″ x 1.6″ x 1.6″) |
| Accessories Included | Instruction manual 1 P.C Soft carrying case ( CA-52A ) 1 PC |
Electrical Specifications (23± 5 ℃)
O2 ( Air oxygen )
| Range | 0 to 30 %O2 |
|---|---|
| Resolution | 0.1 %O2 |
| Accuracy | ± 0.7 % O2 @ After calibration |
| Response time | ≦ 15 seconds. @ t 90 |
| Overload protection | 100 %O2 |
| Environment pressure range | 0.9 to 1.1 atmosphere |
| Expected life time | ≧2 years |
| Alarm | If the measurement Air oxygen value < 18.0 %O2, the buzzer wll sound for warning |
Temperature ( Air Temp. )
| Range | 0 ℃ to 50 ℃,32 ℉ to 122 ℉ |
|---|---|
| Resolution | 0.1 degree |
| Accuracy | ℃ – ± 0.8 ℃ ℉ – ± 1.5 ℉ |
Lutron PO2-250 – Datasheet
