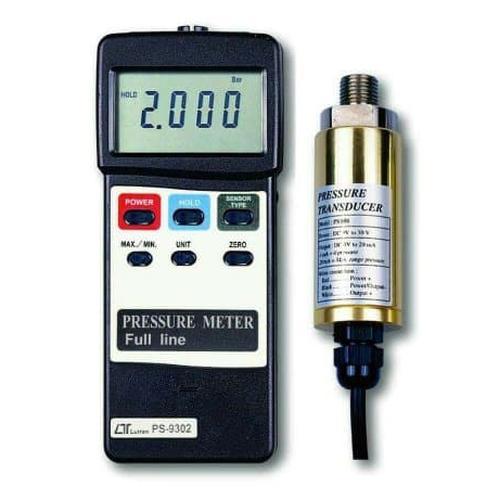

Lutron PS-9302 Pressure Meter

Category Brand
Lutron PS-9302 Pressure Meter
  • Zero button on the front panel, easy adjust the zero value of pressure sensor
  • Push button gain adjustment, usage for calibration precisely if necessary
  • Separate pressure sensor, easy operation. & remote measurement
  • Microprocessor circuit assures maximum possible accuracy, provides special functions and features
  • Super large LCD display with contrast adjustment for best viewing angle
  • Records maximum & minimum readings with recall
  • Data Hold function for stored the desired value on display

Product Description

Lutron PS-9302 Pressure Meter

Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Features Lutron PS-9302 Pressure Meter

  • Meter can cooperate with 2, 5, 10, 20, 50, 100, 400 bar sensor, new calibration are not necessary when change the new sensor
  • When change the new pressure sensor, just select pressure type ( 2, 5, 10, 20, 50, 100, 400 bar ) on the front panel button. The sensor type will memorize into the circuit permanently by EEPROM
    8 kind pressure units ( bar, psi, Kg/cm2 mm/Hg, inch/Hg, meter/H20, inch/H20, Atmosphere ) select by push button on the front panel Optional full line presssure sensor ( 2, 5, 10, 20, 50, 100, 400 bar ) are available
  • Auto shut off saves battery life
  • 4 pin DIN socket, 2 pins to provide DC 5 V exciting voltage ( power supply ) to pressure transducer, another two pins for accept transducer signal of 100mV full scale
  • Zero button on the front panel, easy adjust the zero value of pressure sensor
  • Push button gain adjustment, usage for calibration precisely if necessary
  • Separate pressure sensor, easy operation. & remote measurement
  • Microprocessor circuit assures maximum possible accuracy, provides special functions and features
  • Super large LCD display with contrast adjustment for best viewing angle
  • Records maximum & minimum readings with recall
  • Data Hold function for stored the desired value on display
  • Built-in low battery indicator
  • RS232/USB PC serial interface, can match the personal computer used as the Data Logger, Pressure
  • Recorder…. & other mordern pressure measuring system

Specifications Lutron PS-9302 Pressure Meter

Circuit Microprocessor LSI circuit
Display * 61 mm x 34 mm supper large LCD display
* 15 mm ( 0.6″ ) digit size
Display units bar, psi, Kg/cm2, mm/Hg, inch/Hg, meter/H20 inch/H20, Atmosphere
Pressure transducer Optional, exciting voltage DC 5V, Sensor max. range output is DC 100 mV
Zero adjust Push button on the front panel
Span adjust Push button gain adjustment, usage for calibration precisely if necessary
Transducer mV input signal Approx 100 mV (Full Scale)
Exciting output power supply DC 5 V
Data hold By push button
Data record Record maximun & mininum readings
Data output RS 232/USB PC serial interface
Sampling time Approx. 0.8 second
Power off Auto shut off, saves battery life, or manual off by push button
Operating temperature 0 to 50℃ ( 32 to 122℉ )
Operating humidity Less than 80% R.H
Power supply 006P DC 9V battery(heavy duty)
Power current Approx. DC 8.5 mA
Weight 345 g/0.76 LB
Dimension 180 x 72 x 32 mm ( 7.1 x 2.8 x 1.3 inch )



Accessories Included:
  • Instruction manual……………………..1 PC
Optional Accessories:
  • Pressure sensor, PS100-xxBAR refer to the bottom description
  • Hard carrying case ( CA-06 )
  • Data acquisition software, SW-U801-WIN
  • RS232 cable, UPCB-01
  • USB cable, USB-01





Lutron PS-9302 – Datasheet

KARYA MANDIRI TECHINDO adalah Supplier Lutron PS-9302 Pressure Meter dan juga menjual Brand Lutron. Lihat produk kami lainnya di sini JSI, SGI, SMG atau hubungi kami lewat Whatsapp 0821-3010-0456 atau via email [email protected].




Additional Information

Brand

Lutron

Model

PS-9302

Made In

Taiwan

Weight

1,5 kg

Accessories Included

Instruction manual
