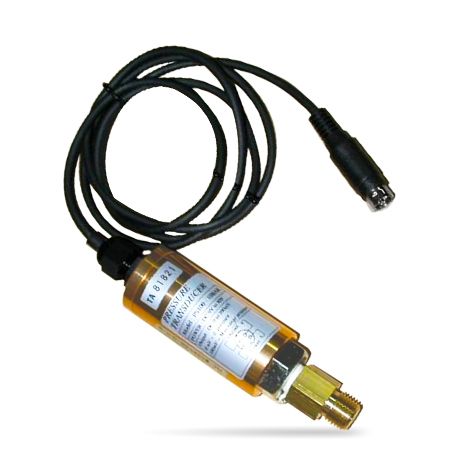

Lutron PS100-10BAR Pressure Sensor
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
( Untuk Lutron PS-9302 )
Specifications Lutron PS100-10BAR Pressure Sensor
- Max capacity & model: 10 BAR ( 145 PSI ) & PS100-10BAR
- Application: Optional pressure transducer for the pressure meter PS-9302
- Overload protection for the pressure sensor: 150% max. capacity
- Supply voltage: DC 9V
- Transducer Port Connector: 1/4″ PS ( per inch 19 teeth )
- Span: ± 1 % F.S
@ Within 10 to 40 . ℃ ℃
@ Linearity + Hysteresis + Repeatability - Zero: ± 2 % F.S
@ Within 10 to 40 - Operating Temperature: 0 to 60 ( 32 to 140 ). ℃ ℃℉ ℉
- Operating Humidity: Max. 80% RH
- Output: Full capacity output = 100 mV DC
- Size: 30 mm dia. x 85 mm
- Weight: 160 g
- Cable length: 1 meter
- Wire Connection: 4 pins standard DIN plug to cooperate the PS-9302 input socket
* 2 pins for 5V DC power supply
* 2 pins for 100 mV DC input signal
Lutron PS100-10BAR – Datasheet
