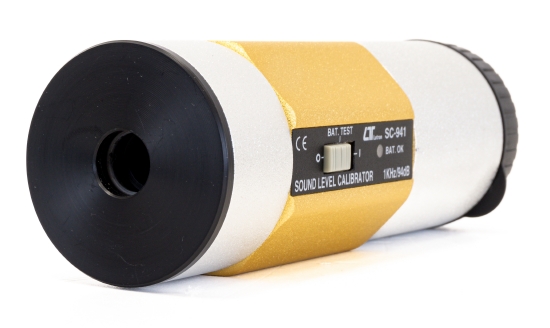

Lutron SC-941 Sound Calibrator
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
The Sound Calibratoris a high fidelity sound frequency generator that simulates a sound signal to test whether the readings match. Most of which are worth the sound test.
Features Lutron SC-941 Sound Calibrator
- Use to calibrate the ” Sound Levelmeter ” precisely
- 1000 Hz frequency
- 94 dB Sound Pressure Level
- Suitable for 0.5 & 1 inch microphone.Total harmonic distortion : 2 %
- According IEC942, Class 2 Standard
- Durable bench type housing case
- Built-in over input protection
Specification Lutron SC-941 Sound Calibrator
| Frequency | 1000 Hz ± 2 % | |
| Sound Pressure Level | 94 dB ± 0.75 dB | |
| Suitable Microphone | Type 0.5 inch or 1 inch microphone | |
| Total harmonic distortion | ± 2 % | |
| Standard According | IEC942, Class 2 | |
| Operating Temp | 0 to 50 ℃ (32 to 122 ℉) | |
| Power by Battery | model 006P ( DC 9V ), 2 PCs | |
| Dimension | Dia 50 mm ( round ) x 145 mm ( length ) | |
Calibration Procedures
- If the calibrated ” SOUND LEVEL METER ” used the 0.5″ microphone, then on the
” Couple Section ” should install the ” 0.5″ Mic. Adapter ” first. - Consideration :
If the calibrated ” SOUND LEVEL METER ” used the 1 inch microphone, then on the
” Couple Section ” should take away the ” 0.5″ Mic. Adapter “. - Insert the microphone of calibrated ” SOUND LEVEL METER ” carefully all the way into the coupler section of the Sound Calibrator.
- Set the calibrated ” SOUND LEVEL METER ” to a range suitable for measuring ” 94 dB “.
- Set the ” Off/BAT. TEST/On Switch ” to ” ON ” position.
A pure 1,000 Hz tone is produced. - Adjust the calibration VR (knob) of the ” Sound Level Meter “. until that the display reach to 94.0 dB exactly.
Accessories Included:
- Instruction manual…………………………………….. 1 PC
- 0.5″ mic. adapter………………………………………. 1 PC
- Adjust Screw Driver……………………………………. 1 PC

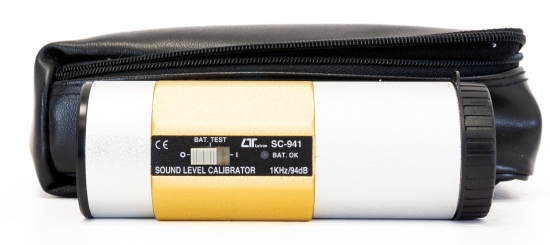

- Carrying case, CA-03………………………………….. 1 PC
Lutron SC-941 – Datasheet
