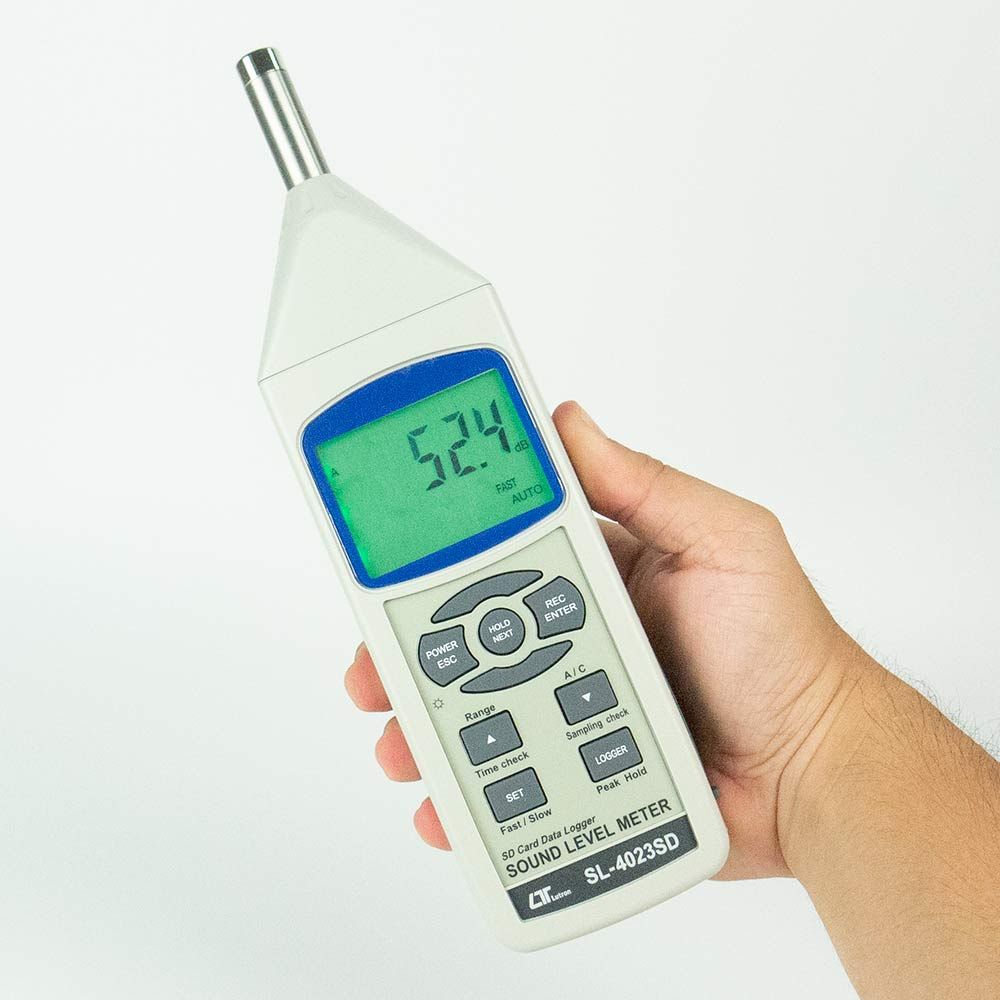

Lutron SL-4023SD Sound Level Meter

Real-time measurement and voice recording by saving measurement data on SD Card (supports SD Card 1 to 32 GB). Set the recording frequency to either Auto or Manual. Measurement range Auto at 30 to 130 dB and Manual, divided into 3 measuring ranges: 30 to 80 dB, 50 to 100 dB, 80 to 130 dB. This unit is easy to use. With standard ø0.5 inch microphone and sound measurement standard IEC61672 Class 2.

Product Description

Lutron SL-4023SD Sound Level Meter

Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Real-time measurement and voice recording by saving measurement data on SD Card (supports SD Card 1 to 32 GB). Set the recording frequency to either Auto or Manual. Measurement range Auto at 30 to 130 dB and Manual, divided into 3 measuring ranges: 30 to 80 dB, 50 to 100 dB, 80 to 130 dB. This unit is easy to use. With standard ø0.5 inch microphone and sound measurement standard IEC61672 Class 2.

This sound meter is an ideal tool for everyday uses such as sound level measurement in entertainment venues, engine noise and industrial combustion system noise. or even different environmental sounds.

Features Lutron SL-4023SD Sound Level Meter

  • Main functions are designed to comply with IEC 61672 class 2
  • The A&C weighting network is standard compliant
  • Standard 0.5″ microphone head
  • Time-weighted dynamic characteristics mode (Fast & Slow)
  • Build external calibration VR
  • Auto range & Manual range selection
  • Available for external calibration adjustment
  • Condenser microphone for high accuracy & long term stability
  • Memory function to store Max. & Min. mark
  • Hold and Peak Hold function
  • Real-time SD memory card datalogger, Built-in Clock and Calendar, real-time data recorder, sampling time is set from 1 second to 3600 seconds
  • Manual data logger is available (set sampling time to 0 seconds), as long as running manual datalogger function, it can set position(location) No. ( position 1 to position 99 ) are different
  • Innovation and easy operation, the computer doesn’t need to set up extra software, after running the datalogger, just take out the SD card from the meter and plug the SD card into the computer, it can load all measured values ​​with time information (year/month/date/hour/minute /sec) to Excel directly, then users can make further data or chart analysis by themselves.
  • SD card capacity: 1GB to 16GB
  • LCD with green backlight, easy to read
  • Can auto power off or manual power off
  • Data storage, record max. and min. reading
  • Microcomputer circuit, high accuracy
  • Powered by UM3/AA ( 1.5 V ) x 6 batteries or 9V DC adapter
  • RS232/USB PC PC interface
  • Heavy duty & compact housing case

Specifications Lutron SL-4023SD Sound Level Meter

CircuitCustom one-chip LSI microprocessor circuit
Display* LCD size : 52 mm x 38 mm
* LCD with green backlight (ON/OFF)
Measurement Range30 – 130 dB
Resolution0.1 dB
Function* dB (frequency weighting A & C)
* Time weighting (Fast, Slow)
* Peak hold, Data hold
* Record (Max., Min.)
Accuracy* The characteristics of the frequency weighted network “A” comply with IEC 61672 class 2.
* Under 94 dB input signal, the accuracy is:
31.5Hz ± 3.5dB
63 Hz ± 2.5 dB
125 Hz ± 2.0 dB
250 Hz ± 1.9 dB
500 Hz ± 1.9 dB
1 KHz ± 1.4 dB
2 KHz ± 2.6 dB
4 KHz ± 3.6 dB
8 KHz ± 5.6 dB
Remark: Specifications above. tested in RF Field Strength environment less than 3 V/M & frequency less than 30 MHz only
Frequency Weighting Network* Characteristics A & C
* Weighting : Characteristics simulated in response to “Human Ear Listing”
Usually, when measuring environmental noise levels, always select the A weightingWeighting C: Characteristics close to the response “FLAT”. Typical, suitable for checking engine noise (Q.C.check) & knowing the sound pressure level of the equipment being tested.
Data storageTo freeze measurement values
Peak holdTo maintain the peak measured value (max.)
Time weighting (Fast & Slow)* Fast – t= 200 ms The “Fast” range is simulated by weighting human ear response times
* Slow – t = 500 ms The “slow” range is easy to get the average sound vibration level
Range selector* Auto range: 30 to 130 dB
* Manual range: 3 ranges, 30 to 80 dB, 50 to 100 dB, 80 to 130 dB, 50 dB at each step, with over & under range indication
Frequency31.5 to 8000 Hz
Microphone typeElectric condenser microphone
Microphone sizeOuter size, DIA 12.7 mm. (1/2 inch)
VR CalibrationBuild in external calibration VR, easily calibrated at 94 dB level by screwdriver
CalibratorB&K (Bruel & kjaer), MULTIFUCTION ACOUSTIC CALIBRATOR 4226
Datalogger Sampling Timing Range* Auto: 1 second to 3600 seconds
* Manual: Press data logger button once will save data once
Memory CardSD memory card. 1GB to 16GB
Advanced settings* Set clock time (Year/Month/Date, Hour/Minute/Second)
* SD card setting decimal point
* Automatic shutdown management
* Set Beep sound ON/OFF
* Set sampling time
* Format SD memory card
More IndicationShow ” – – – -“
Data StoreFreezes display reading
Memory RecallMaximum & Minimum Value
Display Sampling TimeApprox. 1 second
Data OutputPC PC RS 232/USB interface
Power offAutomatic power off saves battery life or manual power off at the push of a button
Operating Temperature0 to 50℃
Operating HumidityLess than 85% R.H
Power Supply* AA Alkaline or DC 1.5 V heavy duty batteries ( UM3, AA ) x 6 PCs, or equivalent
* ADC 9V adapter input. (AC/DC power adapter is optional)
Power CurrentNormal operation (without SD card saving data and LCD Backlight OFF)
Approximately. DC 8.5 mA* When SD card saves data but and LCD Backlight is OFF): Approx. DC 30mA
* AWhen the LCD backlight is on, the power consumption will increase by approx. 14 mA
Weight489 g/1.08 lb
Dimensions245 x 68 x 45 mm.(9.6 x 2.7x 1.9 inch



Accessories Included

  • Instruction manual…………………..1 PC

Optional Accessories

  • Sound calibrator ( 94 dB ), SC-941
  • Sound calibrator ( 94/114 dB ), SC-942
  • Sound wind shield ball, SB-01
  • SD Card ( 1 GB )
  • SD Card ( 2 GB )
  • USB cable, USB-01
  • RS232 cable, UPCB-02
  • Data Acquisition software, SW-U801-WIN
  • AC to DC 9V adapter
  • Soft carrying case, CA-05A
  • Hard carrying case, CA-06





Lutron SL-4023SD – Datasheet


Produk asli Kami distributor langsung Lutron. Harga murah dan berkualitas bergaransi tentunya. dapat di kirim ke seluruh wilayah indonesia.

Dalam pengiriman produk yang pelanggan beli, sebelumnya sudah kami cek untuk memastikan produk dalam keadaan baik dan siap kirim.




Additional Information

Brand

Lutron

Model

SL-4023SD

Made In

Taiwan

Weight

1 kg

Accessories Included

Instruction manual
