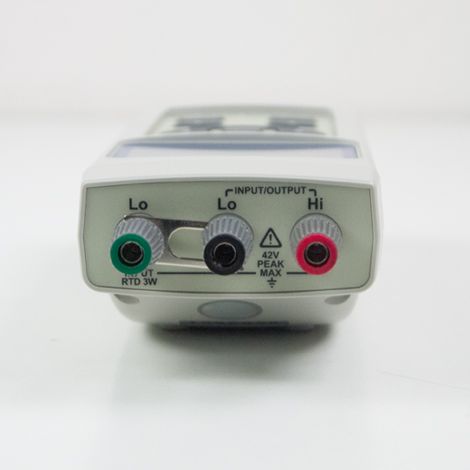

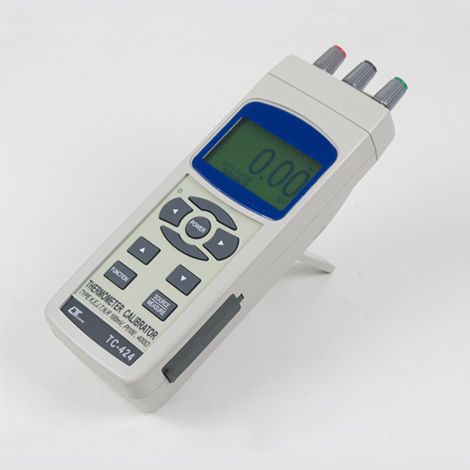

Lutron TC-424 Thermometer Calibrator
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Features Lutron TC-424 Thermometer Calibrator
- Four kinds Source output :
º Pt-100 source
º Voltage( DC mV) source
º 400 ohm source
º Type KJRETS Temp. source - Four kinds measurement inputer :
º Pt-100 measure
º Voltage( DC mV) measure
º 400 ohm measure
º Type K/J/R/E/T/S Temp. measure - Portable instrument for calibrating process devices
- Four kinds Source Adjustable output
Specifications Lutron TC-424 Thermometer Calibrator
- Circuit: Custom one-chip of microprocessor LSI circuit
- Display:
º LCD size : 52 mm x 30 mm
º LCD with white backlight ( ON/OFF ) - Measurement:
º Type k/J/R/E/T/S Temp
º Voltage (DC mV)
º Pt-100 ohm
º 400 ohm - Source:
º Type k/J/R/E/T/S Temp
º Voltage (DC mV : – 10.00 to + 110.00 mV)
º Pt-100 ohm , 400 ohm - Sampling Time of Display: Approx. 1 second
- Advanced setting:
º Auto power OFF management
º Set unit ℃ or ℉ - Operating Temperature and Humidity:
º 0 to 50 ℃
º Less than 85% R.H - Power Supply:
º Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent

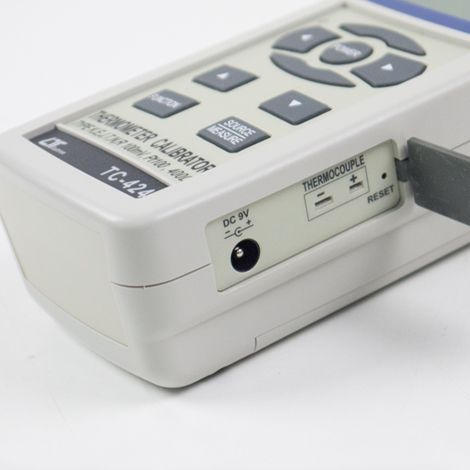

º DC 9V adapter input. ( AC/DC power adapter is optional ) - Power Current:
º Normal operation ( w/o current source ) : Approx. DC 18 mA
º LCD Backlight is ON) : Approx. + DC 2 mA - Weight: Meter : 282 g/ 0.61 LB. (with cable)
- Dimension: Meter : 198 x 68 x 45 mm
Accessories Included
- Instruction manual………………………………………. 1 PC
- Hard carrying case( CA-06 )…………………………………………….. 1 PC
- ( Type K source output line ), AC-DUK02………………………………….. 1 PC
- MTL-CP424…………………………………………………………….. 1 PC
Optional Accessories
- AC to DC 9V adapter
- TP-01,TP-02A, TP-03, TP-04, TP-05
Lutron TC-424 – Datasheet
