Product Description

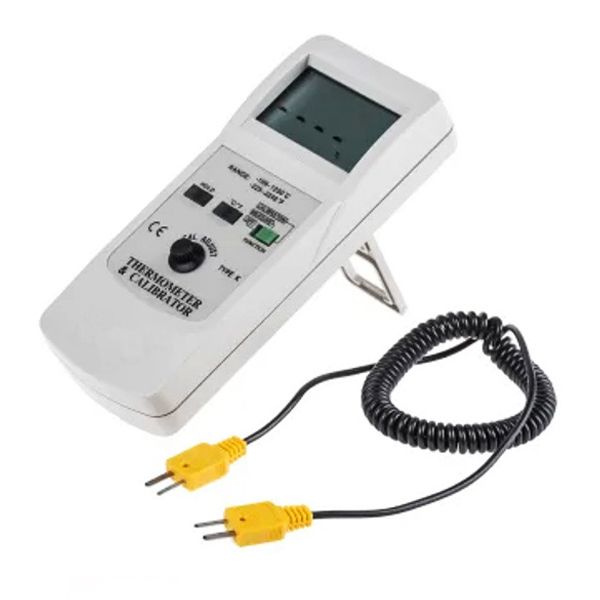

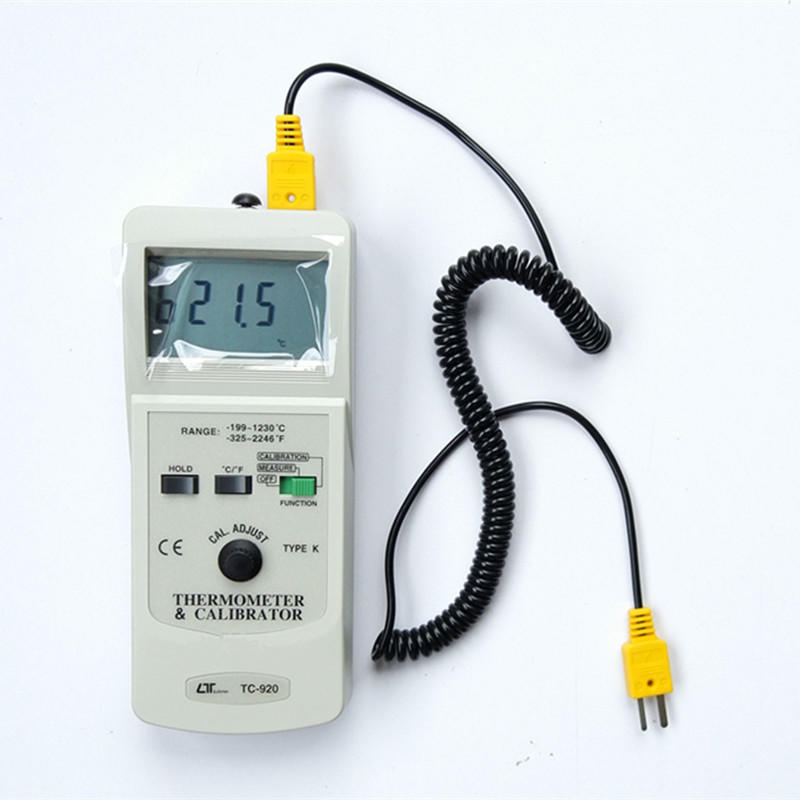

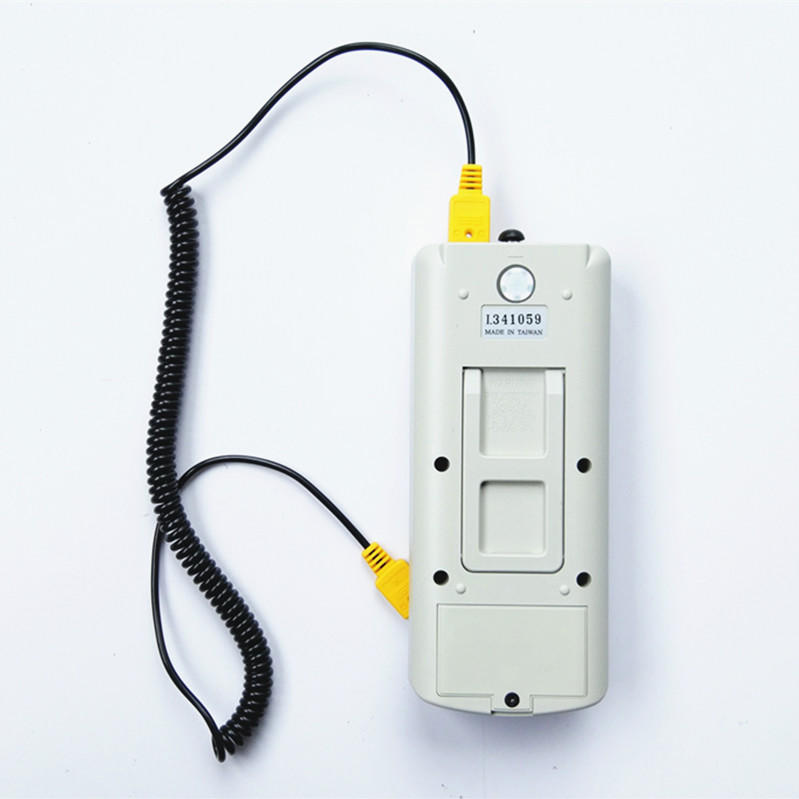

Lutron TC-920 Thermometer Calibrator
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Features Lutron TC-920 Thermometer Calibrator
- 2 in 1, one meter included “type k thermometer” & “type k thermocouple calibrator”
- Precision calibrator for type k thermometer, calibrating process devices and measuring process signals
- Wide range : -199° to 1230°C (-325° to 2246°F)
- Microprocessor circuit assures high accuracy and provides special functions and features
- Build in temperature linearity compensation circuit, high precision
- °C / °F select & data hold function for the temperature
- °C / °F select by the front button for the temperature calibrator
- Thermocouple sensor for Temp. measurement, fast response time
- RS 232 PC serial computer interface
- Temp. measuring input to meet any standard type K (NiCr-NiAl) probe
- Fitted with standard type K input measuring socket
- Super large LCD display, easy reading
- Operates from 006P DC 9V battery
- Used the durable, long-lasting components, including a strong, light weight ABS-plastic housing case
Specifications Lutron TC-920 Thermometer Calibrator
| Display | 14.8 mm (0.58″) digit size. Super large LCD display with annunciator |
|---|---|
| Function | 2 in 1 : Type k thermometer, Type k thermocouple calibrator |
| Range | Measure : -199.9 ℃ to 1230℃ / – 327 ℉ to 2246 ℉ Calibrator : -199.9 ℃ to 1230 ℃ / – 327 ℉ to 2246 ℉ |
| Thermometer | Sensor Type : Thermocouple K ( NiCr-NiAl ) Input Impedance : 10 Mega ohm |
| Data Output | RS 232 PC serial computer interface |
| Operating Temperature | 0 ℃ to 50 ℃ ( 32 ℉ to 122 ℉ ) |
| Operating Humidity | Less than 80% RH |
| Power Supply | 006P DC 9V, MN1604/PP3 battery or equivalent. Heavy duty or Alkaline type |
| Power Current | Approx. DC 9 mA |
| Weight | 280 g/0.62 LB ( included battery ) |
| Size | 185 x 78 x 38 mm ( 7.3 x 3.0 x 1.5 inch ) |
| Accessories included | Instruction Manual Dual type K plug cable, DUK-02, 1pc |
| Optional Accessories | Temperature probe, TP-01, TP-02A, TP-03, TP-04 Software, SW-U801-WIN RS232 cable, UPCB-01 USB cable, USB-01 |
Electrical Specifications
Type K thermocouple Calibrator
| Calibrator Range | Resolution | Accuracy | |
|
℃
|
-199.9 ℃ to -100.1 ℃ | 0.1 ℃ | ± (1 % + 1 ) |
| -100.0 ℃ to 999.9 ℃ | 0.1 ℃ |
± (0.5 % + 1 )
|
|
| 1000 ℃ to 1230 ℃ | 1 ℃ | ||
|
℉
|
-327 ℉ to -200 ℉ | 1 ℉ |
± (1 % + 2 )
|
| -199.9 ℉ to -148.1 ℉ | 0.1 ℉ | ||
| -148.0 ℉ to 999.9 ℉ | 0.1 ℉ |
± (0.5 % + 2 )
|
|
| 1000 ℉ to 2246 ℉ | 1 ℉ | ||
Thermometer, measure
| Calibrator Range | Resolution | Accuracy | |
|
℃
|
-199.9 ℃ to -100.1 ℃ | 0.1 ℃ | ± (1 % + 1 ) |
| -100.0 ℃ to 999.9 ℃ | 0.1 ℃ |
± (0.5 % + 1 )
|
|
| 1000 ℃ to 1230 ℃ | 1 ℃ | ||
|
℉
|
-327 ℉ to -200 ℉ | 1 ℉ |
± (1 % + 2 )
|
| -199.9 ℉ to -148.1 ℉ | 0.1 ℉ | ||
| -148.0 ℉ to 999.9 ℉ | 0.1 ℉ |
± (0.5 % + 2 )
|
|
Lutron TC-920 – Datasheet
