Product Description
Lutron TM-914C Dual Channel Thermometer
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

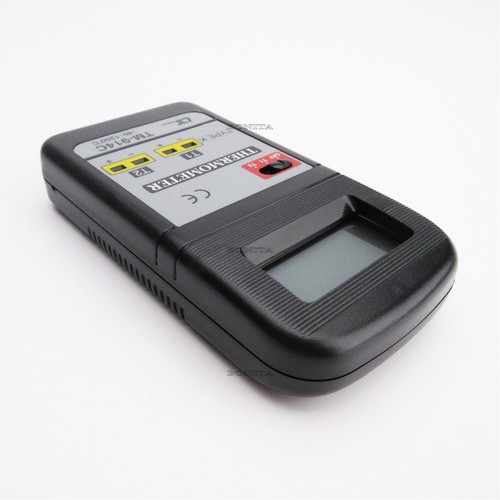

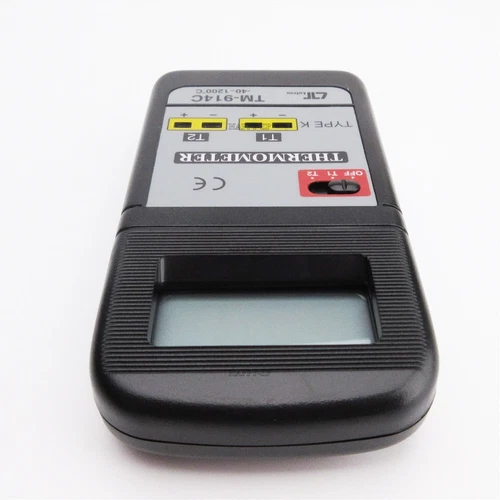

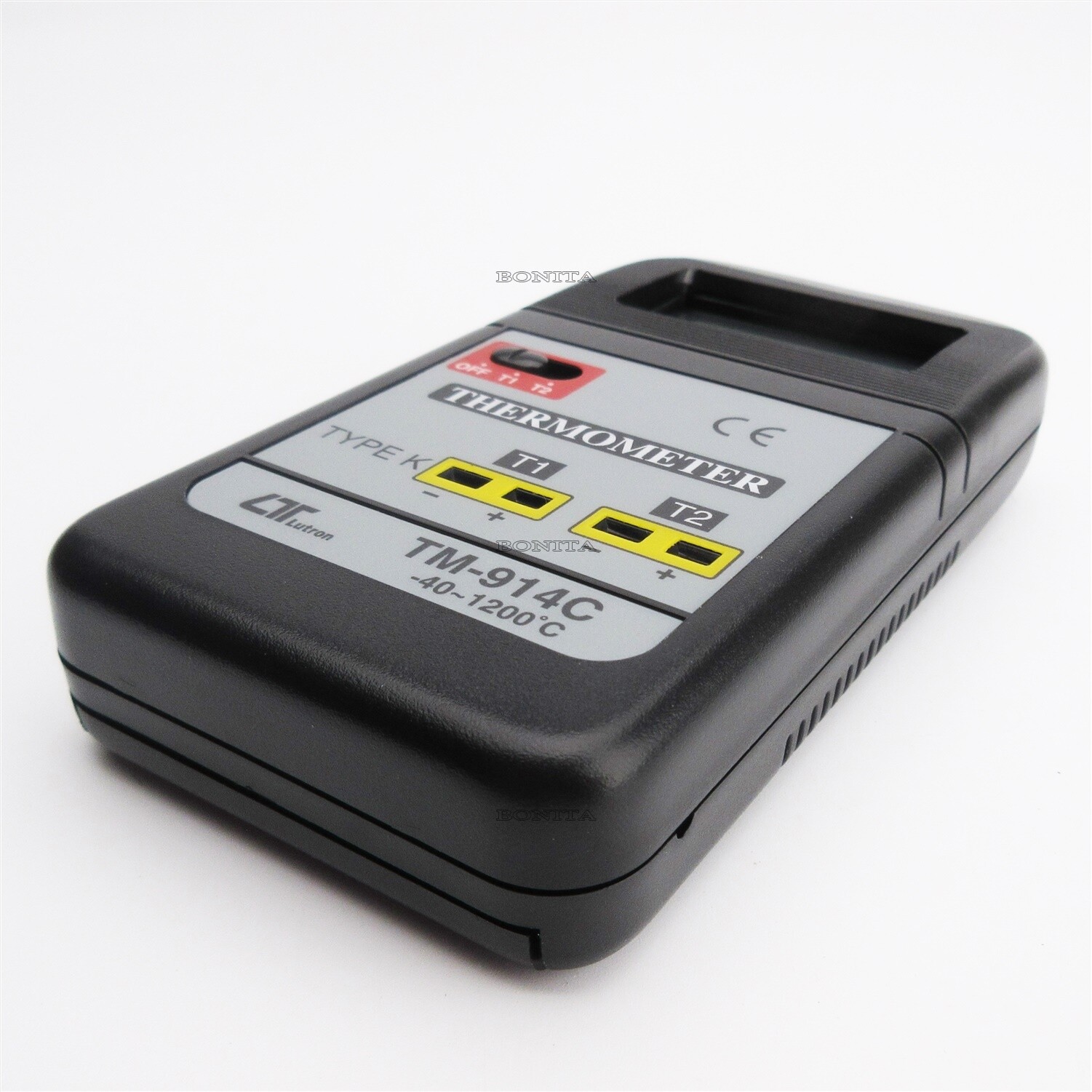

Product Photos
THIS PRODUCT IS NEW THERMOMETER UNIT ONLY, does not include Type K Temperature Probe: TP-01, TP-02A, TP_03, TP-04.
Features Lutron TM-914C Dual Channel Thermometer
- Pocket size & compact housing. * Build in precision cold junction
- Dual channel input. compensation circuit
- LCD display allows clear read-out even at
- Thermocouple sensor for Temperature high ambient light environment. measurement, fast response time
- Operates from DC 9V battery
- Used the durable, long-lasting
- Low power consumption. components, including a strong, light
- Meet any standard type K ( NiCr-NiAl ) weight ABS-plastic housing case.probe
- Full line, wide range optional thermocouple
- Fitted with standard type K input probe.measuring socket
- Optional holster
Specifications Lutron TM-914C Dual Channel Thermometer
| Display | 3 1/2 digits with annuciator, 13 mm (0.5″) LCD |
| Sensor Type | Thermocouple K ( NiCr-NiAl ), Optional |
| Measurement | Two channel input (T1, T2) |
| Range Resolution | -40 ℃ to 1200 ℃ x 1 ℃ |
| Sampling Time | Approx. 0.4 second |
| Power Supply | DC 9 V battery, 006P, MN1604 or equivalent |
| Power Current | Approx. DC 1.1 mA |
| Dimension | 131 x 70 x 26 mm (5.1 x 2.8 x 1.0 inch) |
| Weight | 110 g/0.24 LB.(without battery) |
| Standard Accessories (included) | Operation Manual…. 1 PC |
| Optional Accessories | Type K thermocouple probe TP-01, TP-02A. TP-03, TP-04, TP-05 |
Accuracy (at 23± 5 ℃)
- 0 to 750℃ : ± ( 1 % + 1 ℃ )
- 751 to 1000℃ : typ. – ( 2 % + 1 ℃ )
- 1001 to 1200℃ : typ. – ( 4 % + 3 ℃ )
- 0 to -20℃ : typ. ± 2 ℃
- -21 to -40℃ : typ. ± 3 ℃
- * typ. : Typically
Optional Temperature Probe & Other Accessories
| Model : TP-01 | -40 ℃ to 250 ℃ continuous (300℃ short-term) Applications : Ultra fast response naked-bead thermocouple wire, suitable for many general purpose application |
| Model : TP-02A | -50 ℃ to 900 ℃ ( -58 ℉ to 1652 ℉ ). Dimension : 12 cm tube, 3.2 mm Dia. Penetration & Immersion applications |
| Model : TP-03 | -40 ℃ to 1050 ℃ ( -40 ℉ to 1922 ℉ ) Dimension : 15 cm tube, 8 mm Dia Applications : High temperature, Penetration & Immersion |
| Model : TP-04 | -50 ℃ to 400 ℃ ( -58 ℉ to 752 ℉ ) Dimension : Temp. sensing head-15 mm Dia. Probe length-120 mm Applications : Precision surface temp. measurement usage |
| Carrying case Model : CA-52A | Soft carrying case with sash 200 X 80 X 50 mm |
| Carrying case Model : CA-04 | Soft carrying case. 140 X 77 X 40 mm |
| Holster Model : HS-02 | High quality rubber protective holster |
Lutron TM-914C – Datasheet
