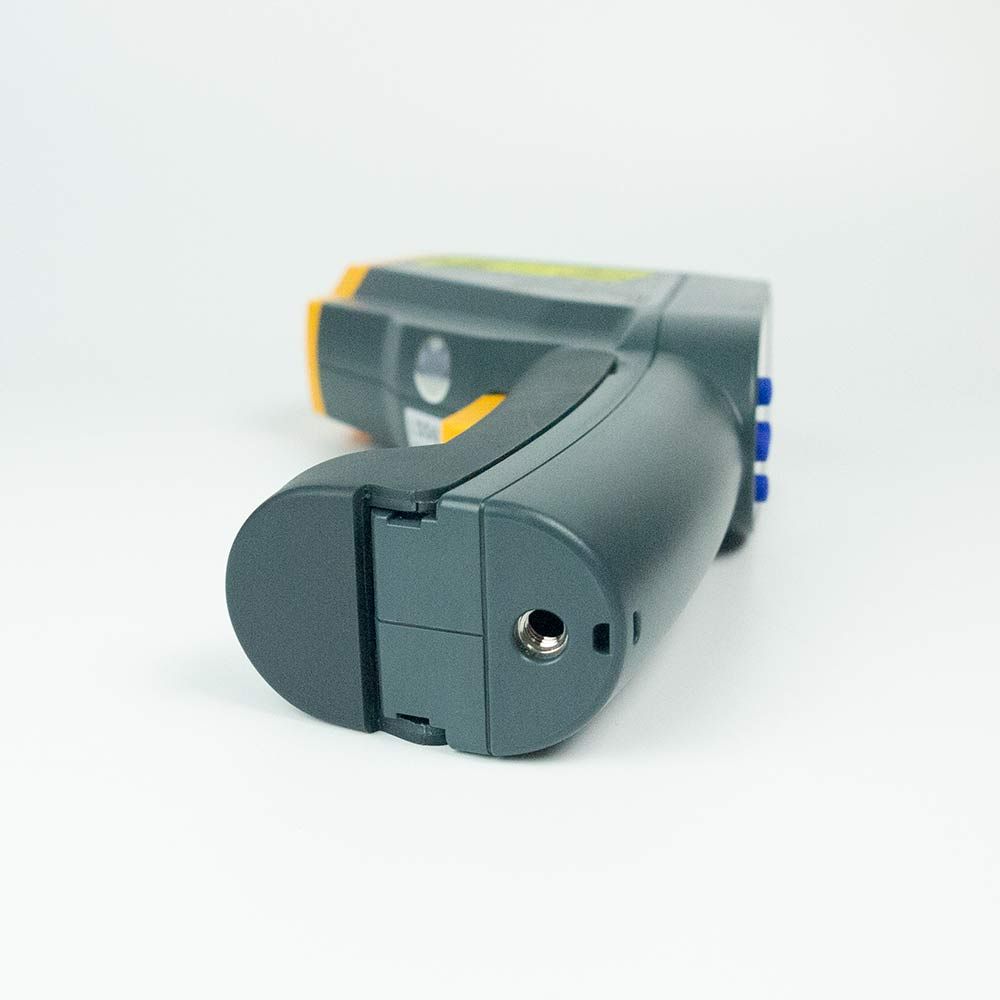

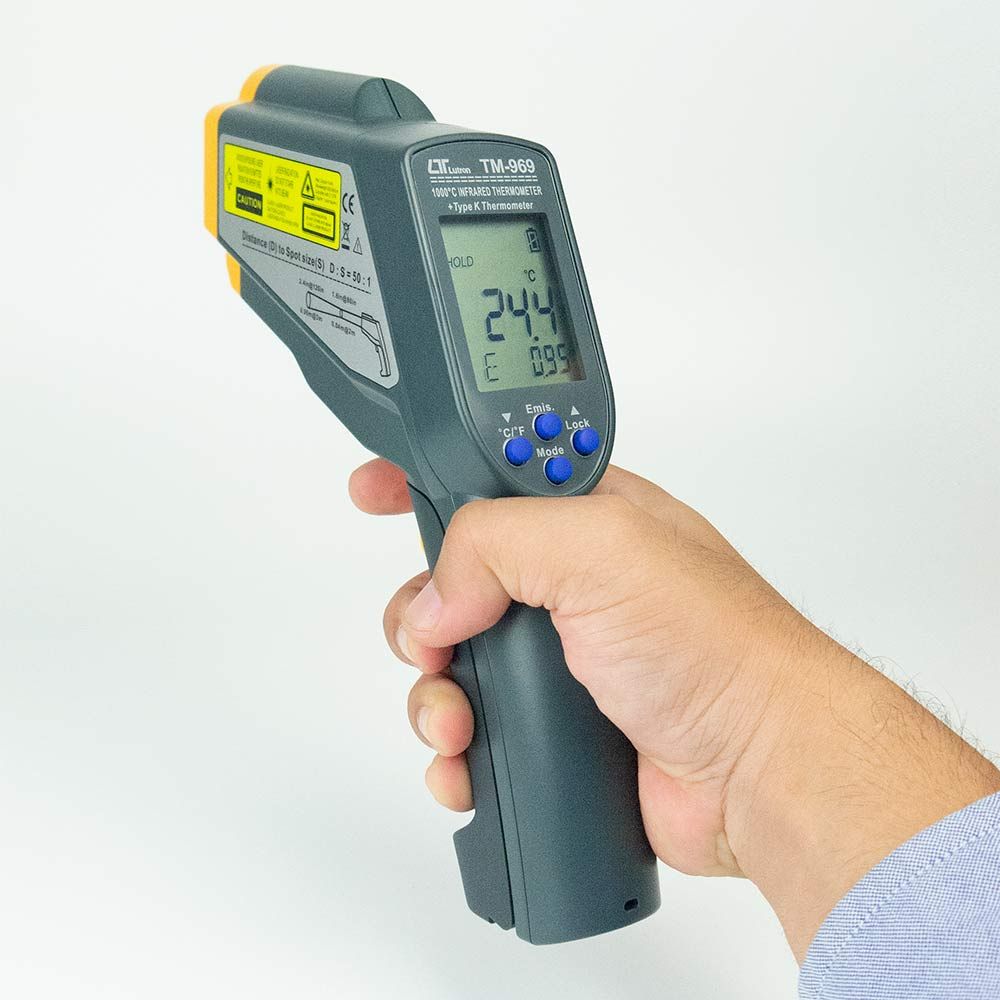

Lutron TM-969 1000 ℃ Infrared Thermometer
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Dual Laser Thermometer + type K Thermometer (optional Temp Probe ) ( – 60 to 1000 ℃ ) / ( -76 to 1832 ℉ ).
None contact infrared temperature measurement up to 1000 °C and safety from the distance ratio value 50:1. In addition, adjustable emissivity value from 0.1 to 1.00 included the Dual Laser Pointer for better targeting.
Features Lutron TM-969 1000 ℃ Infrared Thermometer
- Non contact infrared temperature measurement up to 1,000°C
- Type K thermocouple thermometer, up to 1,400°C
- Dual laser for better targeting
- Large LCD display with back light
- D/S ratio value : 50/1
- Min., Max., Differential, Average, Lock mode
- Last measurement memory
- Hi/Lo Temperature Audio Alarm
- Laser target and Back light On/Off control
- Adjustable emissivity value from 0.1 to 1.00
- Preset emissivity value at 0.95
- Power supply by two AAA batteries, long life
Specifications Lutron TM-969 1000 ℃ Infrared Thermometer
| Display | LCD, 31 mm x 43 mm |
| Functions | ℃, ℉ Min., Max., Differential, Average Lock mode Auto power off LCD back light Emissivity adjustment |
| IR Measurement Range | -60 to 1000℃ ( -76 to 1832℉ ) |
| IR Accuracy | ± 1 ( 1.8 ) * Object Temp. = 15 to 35 ℃ * Ambient Temp. = 25 ℃ ± 2 % of reading or ± 2 ( ± 4 ) whichever is greater * Object Temp. = -33 to 1000 ℃ * Ambient Temp. = 23 ± 3℃ |
| Type K Thermometer Range | -64 to 1400℃ ( -83.2 to 1999℉ ) |
| Type K Thermometer Accuracy | ± 1 % of reading or ± 1 ( ± 1.8 ), * Test under T ambient = 23 ± 5 ℃ |
| Resolution | 0.1 ℃/0.1℉ . | < 1,000℃ /< 1,000 ℉ 1 ℃/1 . ℉ | ≧ 1,000℃ / ≧ 1,000 ℉ |
| Circuit | Exclusive microcomputer circuit |
| Emissivity Adjustment | Adjustment range : 0.10 to 1.00, step 0.01 * 0.95 default emissivity value |
| IR Temp. Sensor | Thermocouple pie |
| Measurement Wave length Region | 8 to 14 micro meter |
| Distance Factor | D/S : Approx. 50:1 ( typical 25:1 ) D – Distance, S – Spot * Distance to spot using 90% encircled energy at focal point |
| Target Guide | * Two laser target guide * Less than 1 mW * Class 2 red laser diode. Wave length is 645 nm approximately |
| Sampling Time | Approx. 0.7 second |
| Power Supply | DC 1.5V AAA ( UM-4 ) battery x 2 PCs, heavy duty or Alkaline |
| Power Consumption | without target light on : Approx. DC 1.5 mA with target light on : Approx. DC 29.5 mA |
| Operating Temperature | 0 to 50℃ (32 to 122℉ ) |
| Operating Humidity | Less than 80% RH |
| Weight | 386 g/0.85 LB |
| Dimension | 203 x 197 x 47 mm ( 8.0 x 7.7 x 1.8 inch ) |
| Standard Accessories | Operational manual….. 1 PC Hard carrying case………. 1 PC |
Lutron TM-969 – Datasheet
