Product Description
Lutron UVA-365SD UVA Light Meter
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
UVA-365SD UVA Light Meter display on screen Including recording data, date-time recorded as actual data via SD Card, no need to install programs, stable and accurate, lightweight, easy to use, compact, convenient to carry, time-saving, durable in every use with good shockproof bag
 |

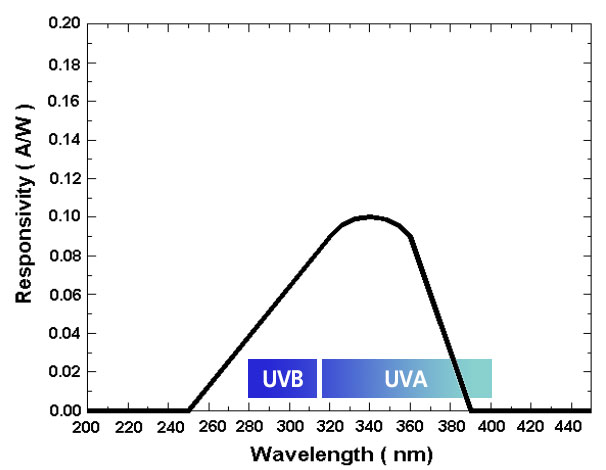

UV Sensor spectrum
It supports measurement of violet rays with wavelengths from 260 to 390 nm, thus covering applications in the measurement of UVA with wavelengths of 315 to 400 nm and UVB with wavelengths of 280 to 315 nm.
|
Features Lutron UVA-365SD UVA Light Meter
- Professional UVA light meter
- Long wave 365 nm ultra-violet irradiance measurement. Professional UVA light meter, used to measure the UVA irradiation value under the UVA light (black light) source
- Two ranges : 2 mW/cm^2, 20 mW/cm^2
- Exclusive UVA sensor structure with metallic housing case
- UVA LSensor with cosine correction filter
- It build the Zero button
- Application for the UVA light measurement : Monitoring blue light radiation hazards in welding, UV sterilization , Graphic arts, Photochemical matching, UV EPROM erasure, Photoresist exposure, Curing of inks, adhesives and coatings
- Microprocessor circuit provides high reliability and durability
- Separate UVA LIGHT probe allows user to measure the UVA light at an optimum position
- Type K, Type J thermocouple thermometer
- Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds
- Manual datalogger is available (set the sampling time to 0), during execute the manual datalogger function, it can set the different position (location) No. (position 1 to position 99)
- Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information (year/month/date/hour/minute/second) to the Excel directly, then user can make the further data or graphic analysis by themselves
- SD card capacity: 1GB to 16GB. (optional)
- LCD with green light backlight, easy reading
- Can default auto power off or manual power off
- Data hold, record max. and min. reading
- Microcomputer circuit, high accuracy
- Power by UM3/AA (1.5V) x6 batteries or DC9V adapter ( optional )
- RS232/USB PC computer interface
Specifications Lutron UVA-365SD UVA Light Meter
| Range & Resolution | Range 1 : 2 mW/cm² : 1.999 mW/cm² x 0.001 mW/cm² |
| Range 2 : 20 mW/cm² : 19.99 mW/cm² x 0.01 mW/cm² | |
| Accuracy | ± (4% FS + 2 dgt.) FS: full scale |
| Sensor Type | Range | Accuracy | Resolution |
| Type K | -50.0 to 1300.0℃ | ±(0.4%+0.5℃) | 0.1℃ |
| -100.0 to -50.1 ℃ | ±(0.4%+1℃) | ||
| Type J | -50.0 to 1200.0℃ | ±(0.4%+0.5℃) | 0.1℃ |
| -100.0 to -50.1 ℃ | ±(0.4%+1℃) |
General Specifications
| Display | LCD size : 52 mm x 38 mm / LCD with green backlight (ON/OFF) |
| Data storage | 1 to 16 GB (SD Memory card) |
| Functions | Max/Min record, Auto Temp Compensation, Data Hold |
| Interface | RS 232/USB PC computer interface |
| Power requirements | Battery AA x 6 |
| Probe Diameter | ø38 x 25 mm / 103 g |
| Dimension / Weight | 177 x 68 x 45 mm / 351 g |
Accessories included
- Instruction manual
- UVA light sensor
- Hard carrying case, CA-06
Optional accessories
- SD Card
- AC to DC 9V adapter
- USB cable, USB-01
- Data acquisition software,SW-U801-WIN
Lutron UVA-365SD – Datasheet
