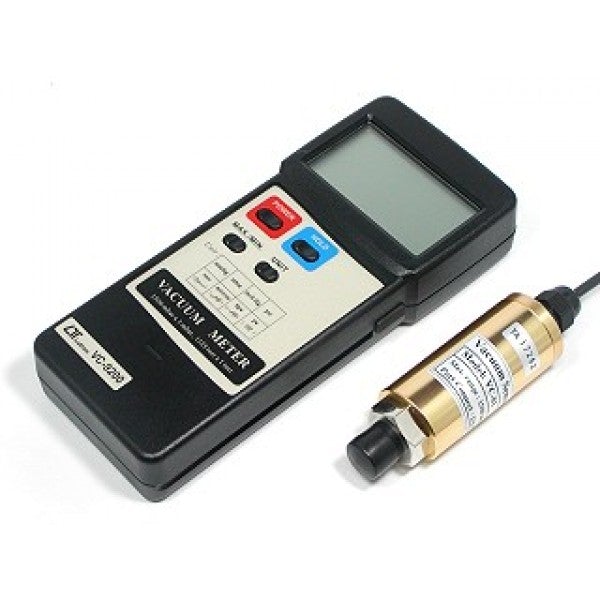

Lutron VC-9200 Vacuum Meter
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Features Lutron VC-9200 Vacuum Meter
- Absolute vacuum & absolute pressure measurement
- Wide measure range from 1 to 1500 mbar
- Overload protection up to 2000 mbar max
- Separate probe, easy operation
- Application : Automobile, Industrial, laboratory, heating, ventilation, medical hospital…..
- Heavy duty sensor used for air, oil gas, liquid
- 8 kind display units ( torr, mm Hg, micron, mbar, KPa, Pa, inch Hg, psi ) select by push button on the front panel
- Auto shut off saves battery life
- Microprocessor circuit assures maximum possible accuracy, provides special functions and features
- Records maximum & minimum readings with recall
- Data Hold function for stored the desired value on display
- Built-in low battery indicator
- RS232 PC serial interface, can match the personal computer used as the Data Logger, Recorder….
Specifications Lutron VC-9200 Vacuum Meter
- Display: 61 mm x 34 mm supper large LCD display. 15 mm ( 0.6″ ) digit size
- Display units: 8 kind display units : torr, mm Hg, micron, mbar, KPa, Pa, inch Hg, psi
- Circuit: Microprocessor LSI circuit
- Function: Data hold, memory ( max., min.)
- Sensor probe:
º Separate probe, easy operation
º Heavy duty sensor uesed for vacuum measurement of air, oil gas liquid - Data hold: By push button
- Data record: Record maximum & minimum readings
- Data output: RS 232 PC serial interface
- Sampling time: Approx. 0.8 second
- Power off: Auto shut off, saves battery life, or manual off by push button
- Operating temperature: 0 to 50 ℃ ( 32 to 122 ℉)
- Operating humidity: Less than 80% R.H
- Power supply: 006P DC 9V battery(heavy duty)
- Power current: Approx. DC 6.0 mA
- Pressure Port Connector: 1/4″ PS
- Weight:
º Instrument : 220 g/0.48 LB
º Sensor probe : 175 g/0.39 LB - Dimension:
º Meter : 180 x 72 x 32 mm ( 7.1 x 2.8 x 1.3 inch )
º Sensor probe : 90 mm x 30 mm Dia
Accessories included
- Sensor probe…………………. 1 PC
- Instruction manual…………. 1 PC
- Hard carrying case………….. 1 PC
Optional accessories
- Data acquisition software ( Windows version ), SW-U801-WIN
- RS232 cable, UPCB-01
- USB cable, USB-01
Lutron VC-9200 – Datasheet
