Product Description

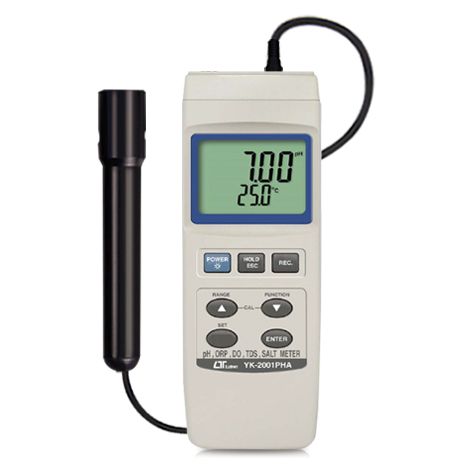

Lutron YK-2001PHA pH/ORP, DO, CD/TDS, Salt Meter
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Water quality meter YK-2001PHA various measurement functions depending on the probe used
Features Lutron YK-2001PHA pH/ORP, DO, CD/TDS, Salt Meter
- One meter for multi purpose operation : pH/ORP, CD/TDS, Dissolved Oxygen, Salt measurement
- pH : 0 to 14.00 pH, ORP : ± 1999 mV
- Conductivity : 200 uS/2 mS/20 mS/200 mS
- Dissolved oxygen : 0 to 20.0 mg/L
- Salt : 0 to 12 % salt ( % weight )
- Optional pH, ORP, CD/TDS/Salt, Dissolved Oxygen and ATC probe
- DC 9V ( 006 P ) or DC 9V adapter in
- pH meter function can select pH or ORP
- pH measurement can select ATC or manual temperature adjustment
- pH measurement can make the auto calibration for pH 7, pH 4 and pH 10 or other value
- Conductivity measurement can select uS/mS or TDS
- Conductivity measurement can select Temp. Coefficient of measurement solution
- ATC for the conductivity measurement
- Dissolved oxygen meter use the polar graphic type oxygen probe with temperature sensor, high precision measurement for Dissolved Oxygen ( DO ) and temperature measurement
- Heavy duty dissolved oxygen probe, probe head can connect with BOD bottle
- DO use the automatic Temp. compensation
- DO meter build in ” % SALT ” & ” Mountain Height ” compensation value adjustment
- Separate probe, easy for operation of different measurement environment
- Wide applications: water conditioning, aquariums, beverage, fish hatcheries, food processing, pHotograpHy, laboratory, paper industry, plating industry, quality control, school & college, water conditioning
- LCD with green light backlight, easy reading
- Can default auto power off or manual power off
- Data hold, record max. and min. reading
- Microcomputer circuit, high accuracy
- Power by DC 9V battery ( 006 P ) or DC 9V adapter
- RS232/USB PC COMPUTER interface
Specifications Lutron YK-2001PHA pH/ORP, DO, CD/TDS, Salt Meter
| Circuit | Custom one-chip of microprocessor LSI circuit | |
| Display | * LCD size : 52 mm x 38 mm * LCD with green backlight ( ON/OFF ) |
|
| Measurement Function | * pH/ORP * Conductivity/TDS(Total Dissolved Solids) * Dissolved Oxygen * Salt |
|
| Advanced setting | * Auto power OFF management * Set beep Sound ON/OFF * Set temperature unit to ℃ or ℉ * Set DO salt% compensation value * Set DO height ( meter ) compensation value * Set CD temperature compensation factor * Set CD to TDS or TDS to CD, CD only * Set pH manual Temp. compensation value |
|
| Data Hold | Freeze the display reading | |
| Memory Recall | Maximum & Minimum value | |
| Sampling Time of Display | Approx. 1 second | |
| Data Output | RS 232/USB PC computer interface | |
| Operating Temperature | 0 to 50℃ | |
| Operating Humidity | Less than 85% R.H | |
| Power Supply | * Alkaline or heavy duty DC 9V ( 006 P ) battery or equivalent * DC 9V adapter input. ( AC/DC power adapter is optional ) |
|
| Power Current | Normal operation ( LCD Backlight is OFF) : Approx. DC 14 mA | |
| Weight | 489 g/1.08 LB | |
| Dimension | 177 x 68 x 45 mm (7.0 x 2.7x 1.9 inch) | |
Accessories Included:
- Instruction manual……………………………..1 PC
- Conductivity/TDS/Salt probe, CDPB-03……1 PC
Optional Accessories:
- pH electrode…………………..PE-03, PE-11, PE-01, PE06HD, PE-04HD, PE-03K7
- ATC probe ( Automatic TemperatureProbe )…………………………………..TP-07
- pH 7 buffer solution…………………. pH-07
- pH 4 buffer solution…………………..pH-04
- Pt type Conductivity/TDS probe, Salt probe……………………………….CDPB-04
- 1.413 mS Conductivity Standard Solution………………………………….CD-14
- Oxygen probe………………………….OXPB-11
- Spare Probe head with DiapHragm set …………………………………………….OXHD-04
- Probe-filling Electrolyte………………OXEL-03
- ORP Electrode………………………….ORP-14
- AC to DC 9V adapter
- USB cable, USB-01
- RS232 cable, UPCB-02
- Data Acquisition software,SW-U801-WIN.Excel Data Acquisition software,SW-E802
Lutron YK-2001PHA – Datasheet
