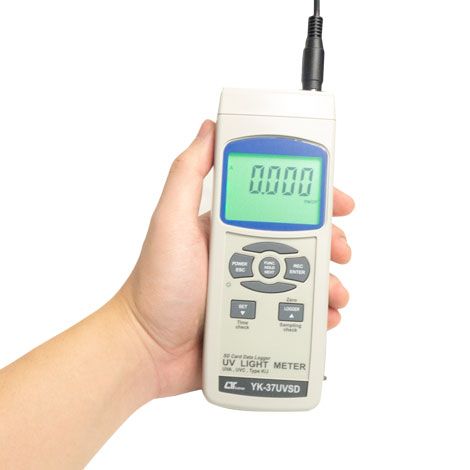

Lutron YK-37UVSD UVA, UVC Light Meter
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
High precision UVA & UVC light measurement in one meter, with Real time data recorder, save data into SD memory card and can be download to Excel, extra software is no need.
Features Lutron YK-37UVSD UVA, UVC Light Meter
- UVA, UVC light measurement in one meter
- Long wave 365 nm ultra-violet irradiance measurement. Professional UVA light meter, used to measure the UVA irradiation value under the UVA light ( black light ) source
- Short wave 254 nm ultra-violet irradiance measurement. Professional UVC light meter, used to measure the UVCirradiation value under the UVC light source
- Two ranges : 2 mW/cm^2, 20 mW/cm^2
- Exclusive UV sensor structure with metallic housing case
- UV LSensor with cosine correction filter
- UV function build Zero button
- Application for the UV light measurement : Monitoring blue light radiation hazards in welding, UV sterilization, Graphic arts, Photochemical matching, UV EPROM erasure, Photoresist exposure, Curing of inks, adhesives and coatings
- Microprocessor circuit provides high reliability and durability
- Separate UV LIGHT probe allows user to measure the UV light at an optimum position
- Type K, Type J thermocouple thermometer
- Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds
- Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 )
- Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves
- SD card capacity : 1 GB to 16 GB
- LCD with green light backlight, easy reading
- Can default auto power off or manual power off
- Data hold, record max. and min. reading
- Microcomputer circuit, high accuracy
- Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter
- RS232/USB PC computer interface
Specifications Lutron YK-37UVSD UVA, UVC Light Meter
- Circuit: Custom one-chip of microprocessor LSI circuit
- Display:
º LCD size : 52 mm x 38 mm
º LCD with green backlight ( ON/OFF ) - Measurement: UV Light : UVA, UVC Type K/J thermometer
- UVA, UVC selection: Select by pushin the front button
- UV Sensor spectrum cover range: 240 nm to 390 nm
- UV ‘sensor structure: The exclusive UV photo sensor with the cosine correction filter
- UV light zero adjustment: By push button
- Memory with Recall: Records Maximum & Minimum reading with recall
- Datalogger Sampling Time Setting range:
º Auto: 1 second to 3600 seconds
º Manual: Push the data logger button once will save data one time - Memory Card: SD memory card. 1 GB to 16 GB
- Advanced setting:
º Set clock time ( Year/Month/Date, Hour/Minute/ Second )
º Decimal point of SD card setting
º Auto power OFF management - Advanced setting:
º Set beep Sound ON/OFF
º Set thermometer type to Type K or Type J
º Set temperature unit to or ℃ ℉
º Set sampling time
º SD memory card Format - Temperature Compensation: Automatic temp. compensation for the type K/J thermometer
- Data Hold: Freeze the display reading
- Memory Recall: Maximum & Minimum value
- Sampling Time of Display: Approx. 1 second
- Data Output: RS 232/USB PC computer interface
- Operating Temperature: 0 to 50℃
- Operating Humidity: Less than 85% R.H
- Power Supply:
º Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent
º ADC 9V adapter input. ( AC/DC power adapter is optional ) - Power Current:
º Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 6.5 mA
º When SD card save the data but and LCD Backlight is OFF) : Approx. DC 30 mA - Weight:
º Meter: 351 g
º UVA probe: 100 g
º UVC probe: 103 g - Size:
º Meter: 177 x 68 x 45 mm
º UVA probe: - Head: 45 mm dia x 32 mm
- Handle 125 x 24 mm dia
º UVC probe: 38 mm DIA. x 25 mm

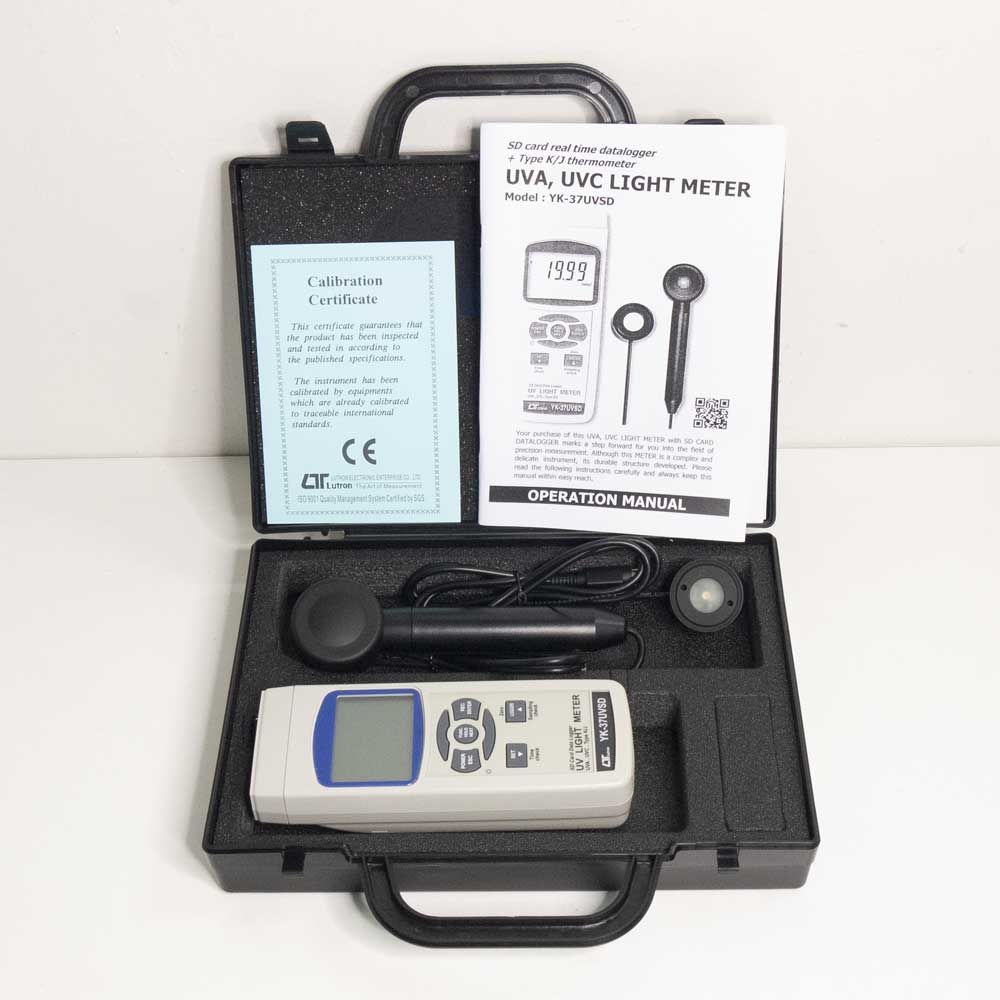

Accessories Included
- Instruction manual………………………1 PC
- UVA light sensor…………………………1 PC
- UVC light sensor…………………………1 PC
- Hard carrying case, CA-06…………….1 PC
Optional Accessories
- SD Card ( 2 GB )
- Type K thermocouple probe
- AC to DC 9V adapter
- USB cable, USB-01
- RS232 cable, UPCB-02
- Data Acquisition software,SW-U801-WIN
Lutron YK-37UVSD – Datasheet
