Description

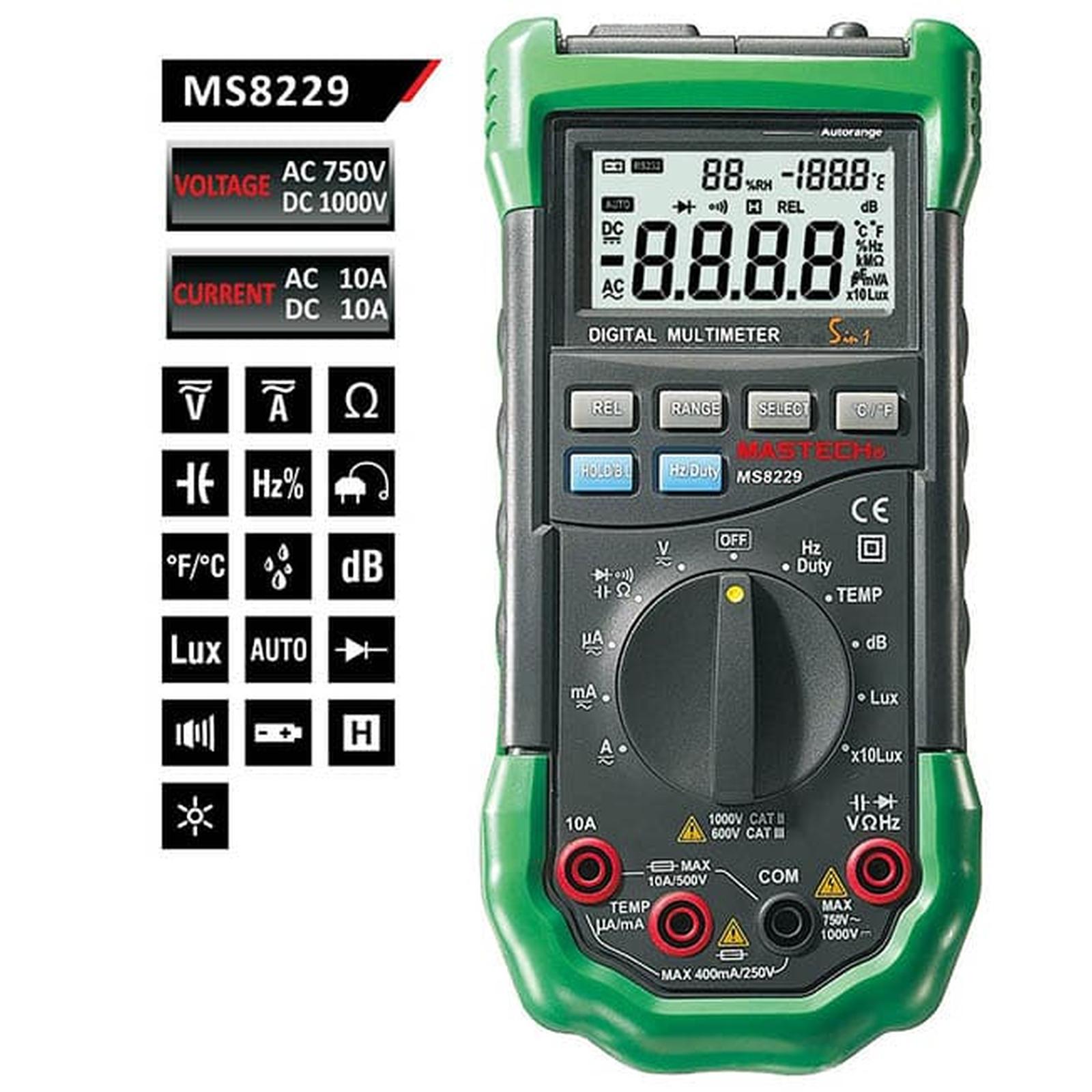

Mastech MS8229 Digital Multimeter With Environment 5 in 1
Mastech MS8229 is a portable handheld multifunctional digital device used to measure sound, luminosity, humidity, temperature, AC/DC current, electrical resistance, capacitance and frequency. This multipurpose, all-in-one measuring instrument has myriad applications in a plethora of industries and environments. The device has a thermocouple, a condenser microphone and built-in sensors for measuring light and humidity.
Features Mastech MS8229 Digital Multimeter With Environment 5 in 1 :
- Display 4000 Counts
- Auto & Manual Ranging
- Auto Power Off
- ℃/℉ Selection
- Diode Open Voltage 1.5V
- Continuity Buzzer <50±20Ω
- Data Hold
- Low Battery Display
- Display Backlight
Specifications Mastech MS8229 Digital Multimeter With Environment 5 in 1 :
| Specifications | Range | Resolution | Accuracy |
| DC Voltage | 400mV/4V/40V/400V/600V | 0.1mV/1mV/10mV/0.1V/1V | ±(0.7%+2) |
| AC Voltage
| 400mV/4V/40V/400V 600V | 0.1mV/1mV/10mV/0.1V 1V | ±(0.8%+3) ±(1.0%+3) |
| DC Current
| 400μA/4000μA/40mA/400mA 4A/10A | 0.1μA/1μA/10μA/0.1mA 1mA/10mA | ±(1.2%+3) ±(2.0%+10) |
| AC Current
| 400μA/4000μA/40mA/400mA 4A/10A | 0.1μA/1μA/10μA/0.1mA 1mA/10mA | ±(1.5%+5) ±(3.0%+10) |
| Resistance
| 400Ω/4kΩ/40kΩ/400kΩ/4MΩ 40MΩ | 0.1Ω/1Ω/10Ω/0.1kΩ/1kΩ 10kΩ | ±(1.2%+2) ±(2.0%+5) |
| Capacitance | 40nF/400nF/4μF/40μF/100μF | 0.01nF/0.1nF/1nF/10nF/0.1μF | ±(3.0%+3) |
| Frequency
| 10Hz 100Hz/1000Hz/10kHz 100kHz/200kHz >200kHz | 0.001Hz 0.01Hz/0.1Hz/1Hz 10Hz/100Hz 0.1kHz | ±(2.0%+5) ±(1.5%+5) ±(2.0%+5) Reference |
| Duty Cycle | 0.1%~99% | 0.1% | ±(3.0%) |
| Temperature (K-Type)
| -20℃~0℃ 1℃~400℃ 401℃ ~1000℃ -4℉~32℉ 33℉~752℉ 753℉~1832℉ | 1℃ 1℃ 1℃ 1℉ 1℉ 1℉ | ±(5.0%+3) ±(1.0%+2) ±(2.0%) ±(5.0%+6) ±(1.0%+4) ±(2.0%) |
| Environment
| 0℃~40℃ 32℉~104℉ | 0.1℃ 0.1℉ | ±(2.0℃) ±(4.0℉) |
| Relative Humidity | 20%~95% | 0.1% | ±(5.0%) |
| Sound Level | 40dB~100dB | 0.1dB | ±(3.5%) |
| Luminosity | 4000Lux/40000Lux | 1Lux/10Lux | ±(5.0%+10) |
Mastech MS8229 Datasheet
