Description

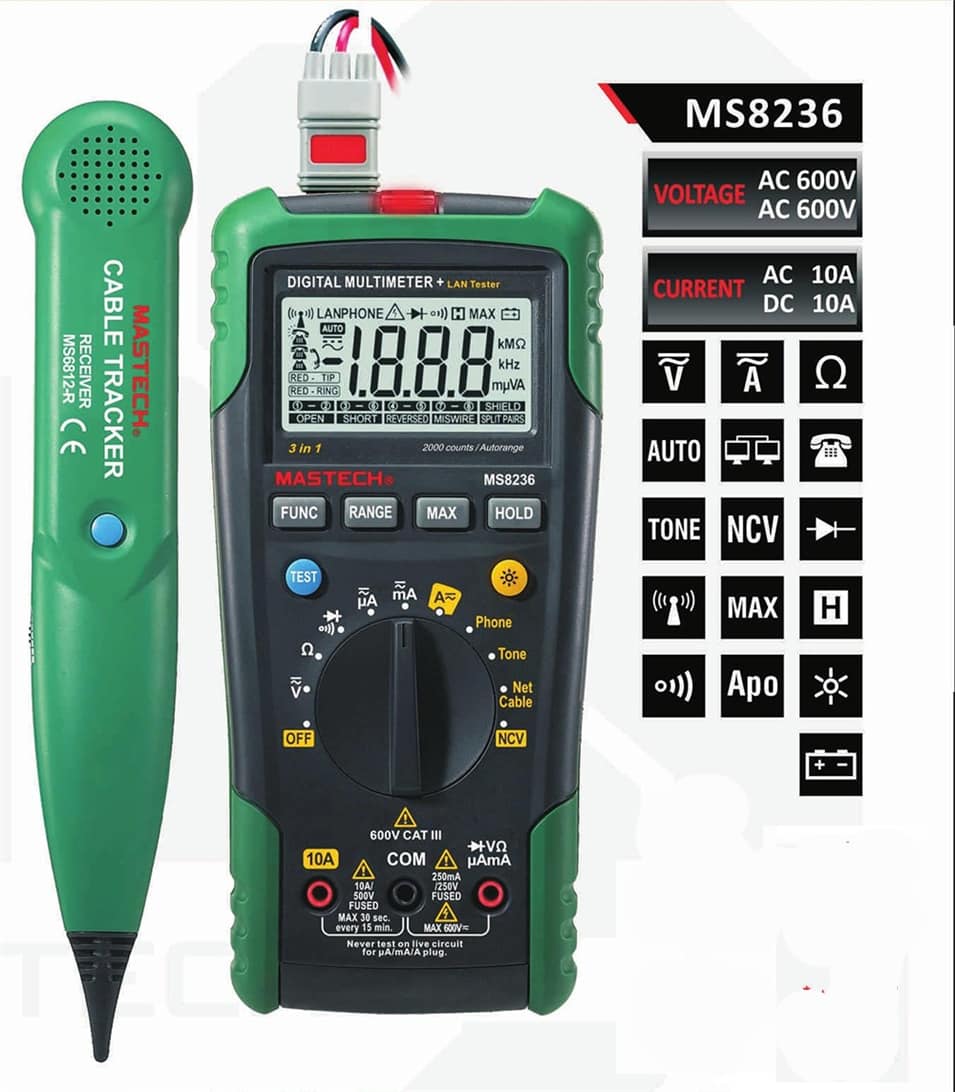

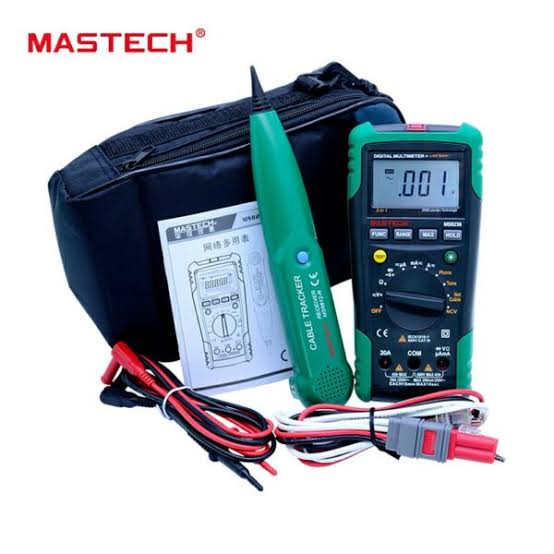

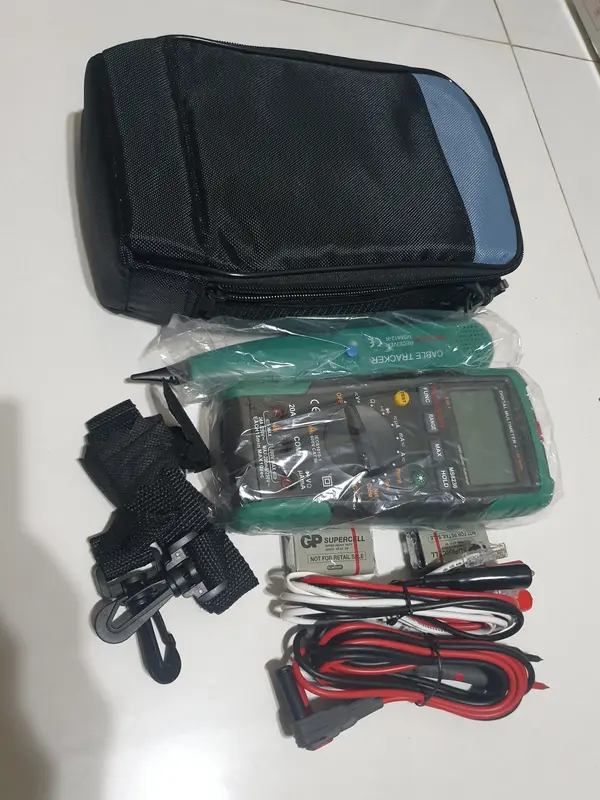

Mastech MS8236 Digital Multimeter with LAN/PHONE/TONE Tester
multimeter MS8236 is a modern, electronic measuring device measuring several dimensions. The device is portable and extremely useful for field measurements, home conditions, and is an indispensable assistant to mobile groups of electricians visiting on-site problem areas in industry. The typical multimeter is a combination of a multipurpose voltmeter (AC and DC), and a multipurpose ohmmeter.
Features Mastech MS8236 Digital Multimeter with LAN/PHONE/TONE Tester
- AC & DC Voltage: 200mV to 600V
- AC & DC Current: 20mA to 200mA
- Resistance: 200Ω to 20MΩ.
- Non-Contact Voltage Detector.
- Diode and Continuity Test.
- Maximum Measurement.
- Data Hold.
- Display Backlight.
- Network Cable Check.
– Test for open circuits, shorts, miss-wires, reversals, split pairs, shield detection.
– Main unit and one remote allow one person testing of T568A, T568B, 10Base-T.
– Debug mode for detailed fault identification result. - Phone Check.
– Identify the state in the working telephone line: Busy, Ringing or Clear. - Tone.
– Judge the continuity of cables or wires.
– Track the cables or wires and diagnose the break point.
Specifications Mastech MS8236 Digital Multimeter with LAN/PHONE/TONE Tester
| Specifications | Range | Resolution | Accuracy |
| DC Voltage | 200mV/2V/20V/200V/600V | 0.1mV/1mV/10mV/100mV/1V | ±(0.5%+5) |
| AC Voltage | 200mV/2V/20V/200V/600V | 0.1mV/1mV/10mV/100mV/1V | ±(0.8%+5) |
| DC Current
| 200μA/2000μA/20mA/200mA 2A/10A | 0.1μA/1μA/10μA/0.1mA 1mA/10mA | ±(1.2%+5) ±(2.0%+10) |
| AC Current
| 200μA/2000μA/20mA/200mA 2A/10A | 0.1μA/1μA/10μA/0.1mA 1mA/10mA | ±(1.5%+5) ±(3.0%+10) |
| Resistance
| 200Ω/2kΩ/20kΩ/200kΩ 2MΩ/20MΩ | 0.1Ω/1Ω/10Ω/100Ω 1kΩ/10kΩ | ±(1.0%+5) ±(1.5%+5) |
Mastech MS8236 Datasheet
