Description
Mestek CT02 Coating Thickness Gauge | Measuring range 0-1500um, Resolution 0.1um, Accuracy Iron base or aluminum base/+(3%+2um)

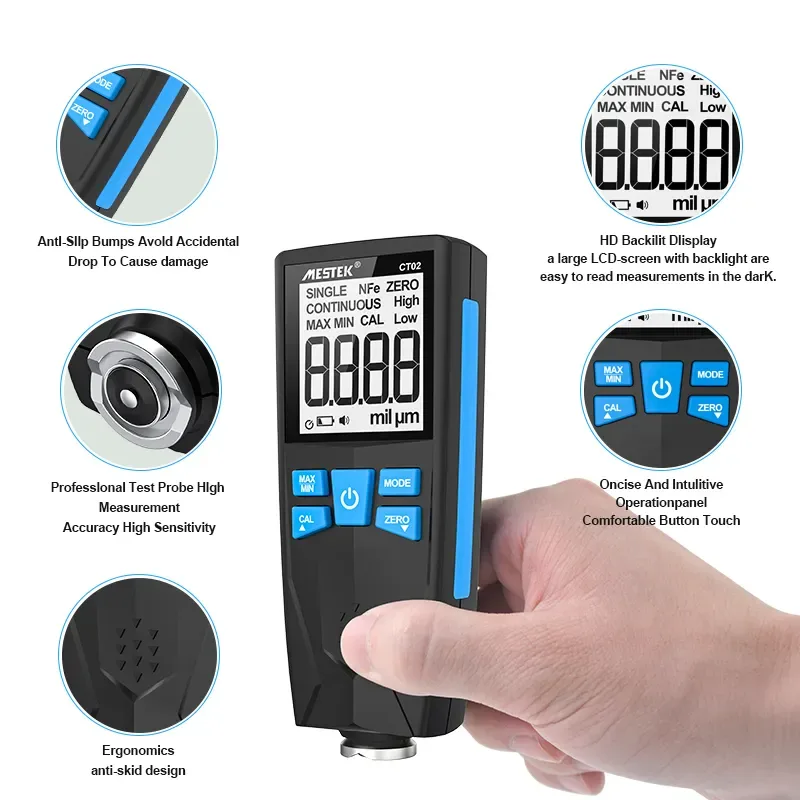

Coating Thickness Gauge CT02 is suitable for measuring coating thickness of iron-based and aluminum-based materials. It measures iron-based materials based on magnetic induction technology and aluminum-based materials based on eddy current effect. The measuring range is 0~1500 microns, with a resolution of up to 0.1 microns. It provides two modes: single measurement and continuous measurement. It meets the detection needs of various industrial scenarios. It is widely used in the fields of automobile manufacturing, metal processing and quality control.
Features Mestek CT02 Coating Thickness Gauge :
- Measuring substrate: Iron-based, Aluminum-based
- Measuring range: 0 – 1500um
- Unit change: UM / mil
- Measurement method: single measurement / continuous measurement
- Minimum convex bend radius: 5 mm
- Minimum concave curvature radius: 50 mm
- Minimum diameter of measuring area: 20 mm
Specification Mestek CT02 Coating Thickness Gauge :
| Type | LCD |
| Display | Iron base or aluminum base |
| Measuring base | Iron base: magnetic induction |
| Sampling method | Aluminum base: eddy current effect |
| Measuring range | 0-1500um |
| Resolution | 0.1um |
| Accuracy | Iron base or aluminum base/+(3%+2um) |
| Automatic shutdown | About 10 minutes |
| Measurement mode | single/continuous |
| Unit | um/mil |
| The radius of the minimum convex curvature | 5mm |
| The radius of the minimum concave | 50mm |
| The diameter of the minimum measuring area | 20mm |
| The minimum thickness of base material | Iron base or 0.5mm/aluminum base 0.3mm |
| Working current | About 30mA |

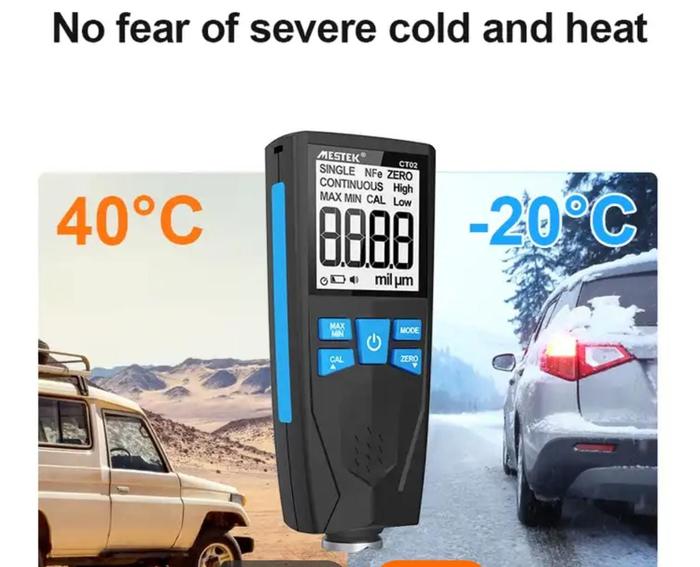

| Working environment | 0~50℃/10~80%RH |
| Power | 2*1.5V AAA |
| USB | NO |
| Size | 120*48*26(mm) |
| Weight | About 95g(excluding battery) |
