Description

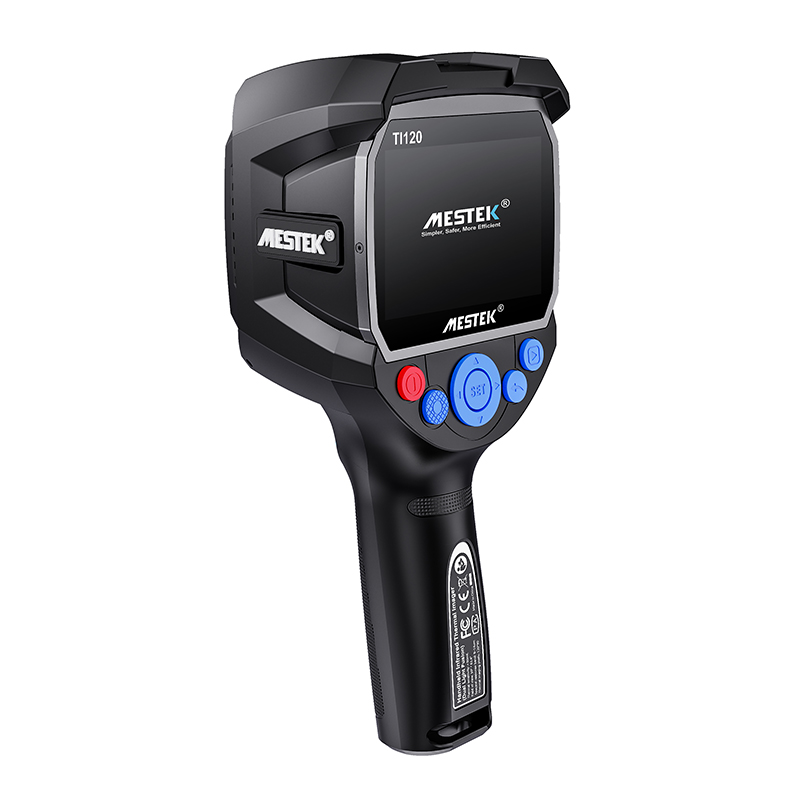

Mestek TI120 Infrared Thermal Imager | 120*90 pixels and 3.5 inches
The professional infrared thermal imager TI120 is equipped with a 3.5-inch LCD display and a 120*90 pixel high-definition display. It provides professional data and clear infrared images. The IP65-level waterproof and dustproof design ensures its use in various working environments. The instrument has been tested for 1.5-meter drop resistance, which has higher durability and safety. TI120 has a built-in lithium battery and an 8GB micro SD card, and supports USB 2.0 charging, which is more convenient. The field of view is 50°*63.4°, and the measurement range covers -20°C to 400°C, providing accurate temperature detection. The device is suitable for maintaining the optimal measurement range of 0.5 meters to 1.2 meters. It supports point measurement and range measurement modes. It can automatically capture the highest point.
Features Mestek TI120 Infrared Thermal Imager :
- Image pixels: Ti20 thermal imager has 10800 (190*90) pixels, 320×240 IR resolution/output frame rate ≤20Hz, thermal sensitivity <60mK, 3.5-inch large screen, measuring working environment temperature 0~35°C, Fahrenheit~86°F, temperature range -20~400°C, Fahrenheit -4~752°F.
- 6 color palettes: hot red/high contrast rainbow/rainbow/lava/iron red/hot white to meet different usage scenarios. A variety of color palettes for you to choose the ideal color scale for your work.
- Thermal Inspection Tools: The Ti20 thermal imager is ideal for home inspections, missing insulation, air leaks, water damage, facility maintenance, HVAC troubleshooting, and professional inspections of electrical and mechanical systems.
- Features: Audio alarm and warning light will remind you when the temperature is out of range; LED work light allows you to reach dark and hard-to-reach areas; Built-in space can store >2000 images, with 8G SD card externally.
- High-capacity rechargeable lithium-ion battery: Charge quickly using the included USB charger. The auto-shutoff feature ensures you don’t run out of power during critical work. The built-in 5000mAh/3.7V rechargeable lithium battery can support up to 10 hours of continuous operation.
Specification Mestek TI120 Infrared Thermal Imager :
| IR resolution | 10800(120*90)pixels |
| Field of view (FOV) | 50° * 63.4° |
| Thermal sensitivity (NETD) | <60mk |
| Temperature range | -20~400°C |
| Frame rate | ≤ 20Hz |
| Measurement accuracy | -20~0°C;±5°C/0~100°C;±3°C/ 100~400°C;+5% |
| Measurable Distance Range | 0.5m~1.2m |
| Display | 3.5″ LCD |
| Auto capture of Hi/Lo temperature | √ |
| Measurement modes | Point, area |
| Storage | External 8G Micro SD Card |
| Drop proof | 1.5m |
| Waterproof level | IP65 |
| Size | 238*95*85.5(mm) |
| Weight | 540g |
