Product Description

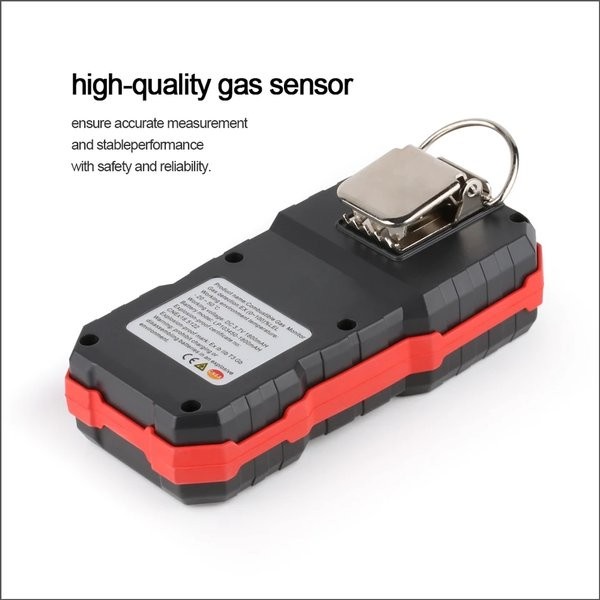

Multi Gas Detector 4 in 1 H2S CO O2 EX/LEL Gas Sensor Meter Detector

Features Multi Gas Detector 4 in 1

• Color screen, user-friendly interface.
• Bilingual option: Chinese/English.
• Three alarm forms: Sound/light/vibration.
• Data recording and review function, continuously recording 120,000 data logging.Charging function.

Specification Multi Gas Detector 4 in 1

• Compound Monitor Range
• Measuring items and Units
• Flammable gas LEL % LEL
• Oxygen O2 % VOL
• Hydrogen sulfide H2S mol/mol
• Carbon Monoxide CO mol/mol
• Range:
  * Flammability of gas LEL: 0~100
  * Oxygen O2 : 0 ~ 30 Hydrogen sulfide H2S:0 ~ 100
  * Carbon Monoxide CO :0 ~ 1000
• Resolution
  * Flammability of gas LEL: 0.1
  * Oxygen O2 : 0.1
  * Hydrogen sulfide H2S:0.1
  * Carbon Monoxide CO :1
• Accuracy: When the measuring range is (0~50)mol/mol, the maximum allowable error is: 5mol/mol.

When the measuring range is (50~1000)mol/mol, the maximum allowable error is: 10%

Model indication: LCD display real-time date and state, LED system, sound, vibration alarm indication
Response Time (90%): less than 30 seconds

Alarm: Sound and light vibration alarm
Alarm Point: Customized
Working voltage: DC3.7V, 1800mAh
Battery model: LP103450-1800mAh rechargeable lithium battery

Explosion-proof Certificate NO. : CNEx 18.5122
Explosion-proof Mark: Ex ib IIB T3 Gb
Operating conditions: -20~50℃ / -4~122℉, < 95%
Storage conditions: -10~55℃ / 14~122℉, < 85%
Charging time: 6-8h
Standby time: more than 8h at the end (slightly change with working state)
Weight: 215.4g (with battery and back buton)
Item size: 71*153*49mm

Package includes

• Multi Gas Detector
• Plastic pipe
• USB Cable
• Gas ​​Calibration Cover
• Storage box
• User manual
