Description
Nicety CM8806FN Coating Thickness Gauge
Karya Mandiri Techindo has a wide range of Nicety products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
The LCD Digital Coating Thickness Gauge Tester is a combination gauge with two sensors, one for magnetic metals and one for non-magnetic metals. The gauge will automatically switch to the right sensor. It can be used to measure the thickness of protective coatings or paints on machine parts, buildings or materials.
F-PROBE: Magnetic induction: Can measure the thickness of Non-magnetic coating layers On magnetic substrate. Such as: (aluminum, chrome, copper, enamel, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel).
N-PROBE: Eddy current: Can measure the thickness of nonconductive coating layers covered on nonferrous substrate. Such as : ( enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on nonferrous substrate (aluminum, brass, zinc, tin and nonmagnetic stainless steel).
Features Nicety CM8806FN Coating Thickness Gauge :
- Large and clear TFT Screen(160 x 128 TFT)
- Ferrous or Non Ferrous
- Metric/imperial system selectable, Auto power off.
- Single / Continue measurement selectable
- Flip display, Easy Reading at any condition and angle
- 99 data memory
- Simultaneously displays 5 readings
- Measuring Reading, Average Reading, Max Reading, Min Reading and Standard Deviation.
- Low battery indication
Specification Nicety CM8806FN Coating Thickness Gauge :
- Range: 0 – 1250um; M, 0 – 50mil
- Principle: F type-magnetic induction, NF type-eddy current
- Resolution: 1um /0.1mils
- Accuracy: +/-(3%+2um) or +/-(3%+0.1mils)
- Modes: Single & Continuous

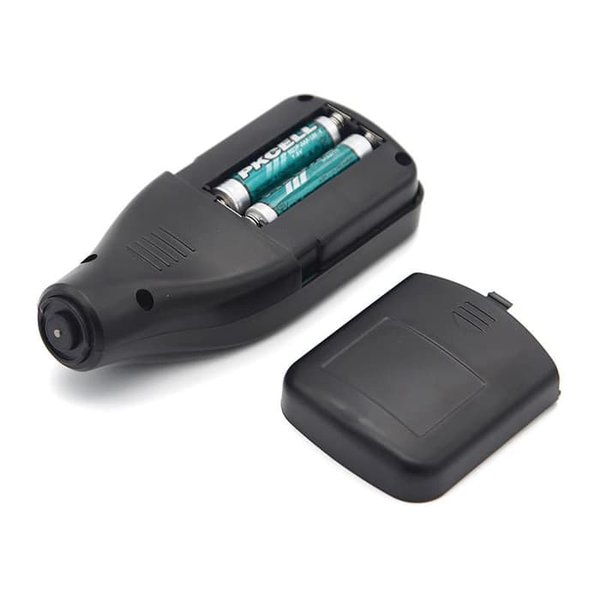

- Power supply: 2xAAA 1.5V batteries (not included)
- Packing: Spectacle case, Bandbox
- Dimensions: 100x52x29mm
- Weight: 68g
- Operation Temperature: 0~50C

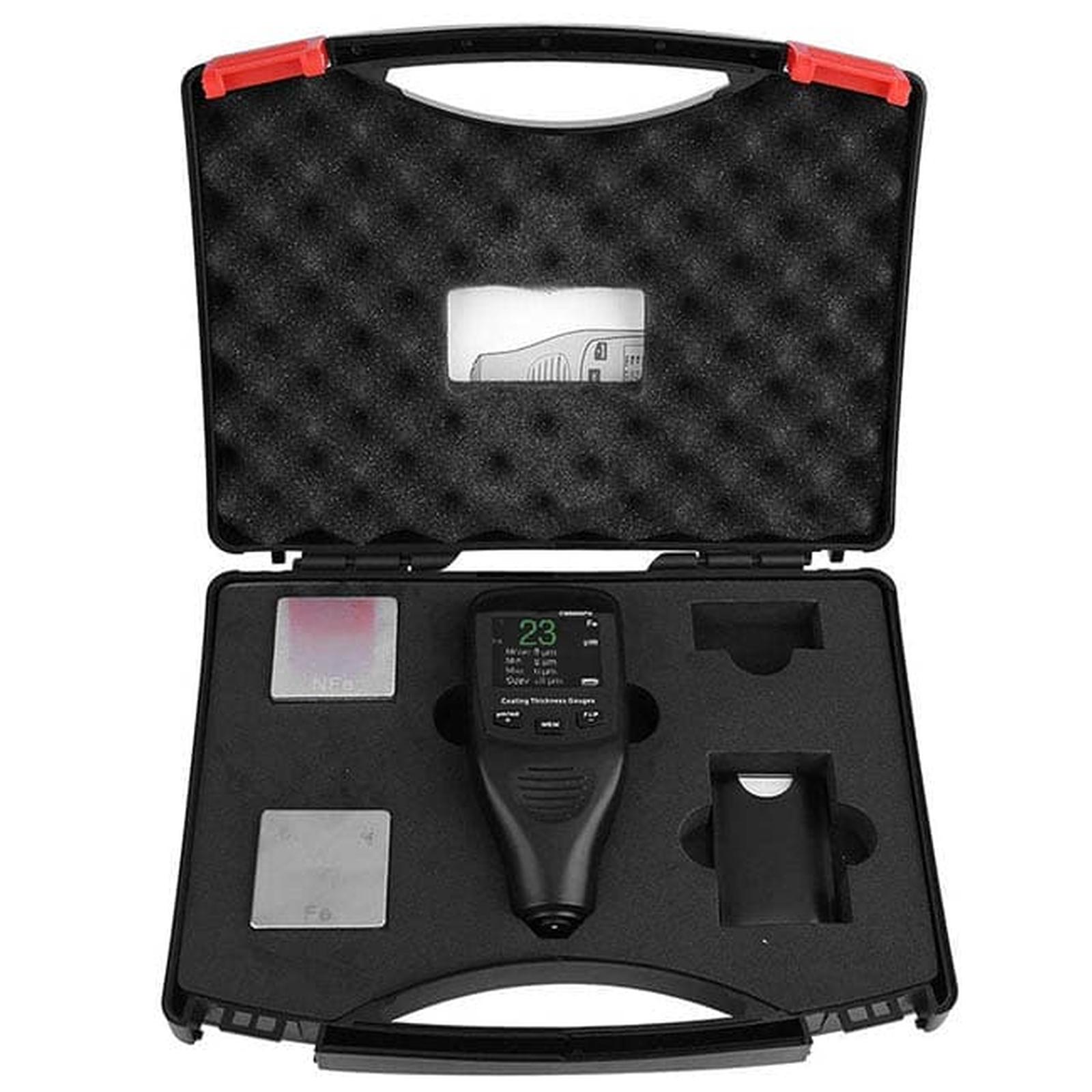

Isi Paket:
- 1 x Coating thickness
- 1 x Manual
- 1 x Calibration film set
- 2 x Substrate blocks (Fe & Non Fe)
- 1 x Case
