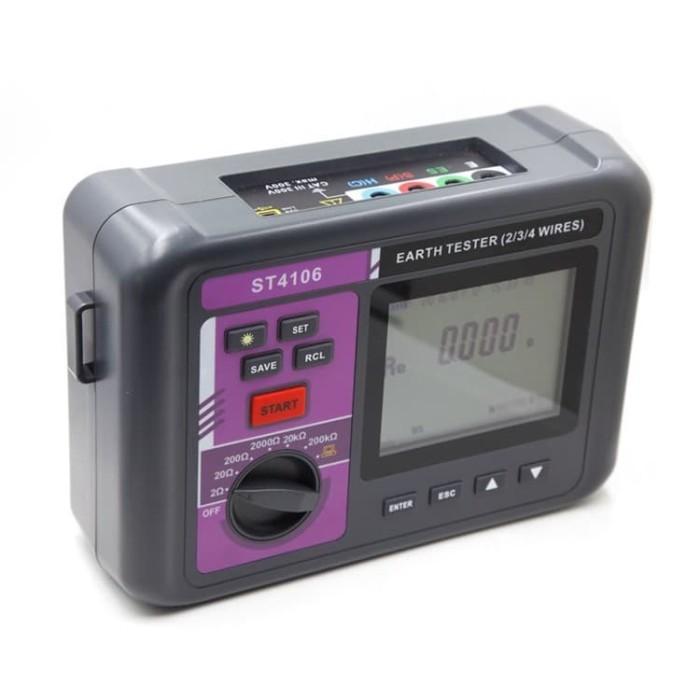

Nicety ST4106 Ground Tester Resistance Tester
Karya Mandiri Techindo has a wide range of Nicety products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Intelligent, high-precision two- and three-wire soil resistance and resistivity measurements, automatic distance measurement, automatic compensation for interference voltage and test lead elongation, 999 sets of data storage, USB interface, and backpack
It is suitable for measuring the resistance value and soil resistivity of various power systems, electrical equipment, lightning rods and other grounding devices
Features Nicety ST4106 Ground Tester Resistance Tester :
- Intelligent, high-precision, two-, three-, and four-wire measurement of grounding resistance and soil resistivity
- Ultra-wide 270-degree viewing angle LCD large-screen backlight display (visual 102 × 86.6mm)
- Operation beep prompt, can detect probe resistance
- 4-Band test frequency response, automatic compensation for noise interference voltage
- Test line extension is automatically compensated, and measurement accuracy is not affected
- 999 sets of data storage, USB interface (photoelectric isolation) connected to the computer
- 8 R14G 1.5V (No. 2) battery powered, 500 hours standby, can perform more than 1000 measurements
Specification Nicety ST4106 Ground Tester Resistance Tester :
| Characteristics of the ground resistance meter | |
| Selection of measurement limits | auto |
| Grounding resistance | 0.003 ohms – 2.099 ohms ± (3% + 5) |
| 0.03 ohm – 20.99 ohm ± (2% + 5) | |
| 0.1 – 209.9 Ohm ± (2% + 5) | |
| 1 ohm – 2099 ohm ± (2% + 5) | |
| 0.01 kOhm – 20.99 kOhm ± (2% + 5) | |
| 0.01 kOhm – 200.9 kOhm ± (5% + 5) | |
| Specific soil resistance | 0.18 Ohm * m – 1.318 kOhm * m |
| 0.18 Ohm * m – 13.18 Ohm * m | |
| 0.62 Ohm * m – 131.8 kOhm * m | |
| 6.28 Ohm * m – 1318 kOhm * m | |
| 62.8 Ohm * m – 1999 kOhm * m | |
| 628.8 Ohm * m – 1999 kOhm * m | |
| Permission | 0.001 Ohm (0.01 Ohm – 19.99 Ohm) |
| 0.01 ohm (20 ohm – 199.9 ohm) | |
| 0.1 Ohm (200 – 999 Ohm) | |
| 1 Ohm (1 kOhm – 1.99 kOhm) | |
| 0.01 kOhm (2 kOhm – 19.99 kOhm) | |
| 0.1 kOhm (0.01 kOhm – 200.9 kOhm) | |
| Frequency | 128 Hz / 111 Hz / 105 Hz / 94 Hz |
| Frequency selection | manual / automatic |
| Maximum input voltage | CAT III 250 V |
| Interference voltage | 50 V ± (2% + 2) |
| Frequency of interference voltage | 16Hz~500Hz±(1%+0.5) |
| Data Hold | Yes |
| Data Logging | 999 readings |
| Double insulation | Yes |
| Low battery indicator | Yes |
| Automatic shutdown | Yes |
| Compliance with standards | EN61010, EN61557-1, EN61557-5 |
| General characteristics | |
| Display | digital |
| Display resolution | 102 mm x 86 mm |
| Backlight | Yes |
| PC compatibility | USB 2.0 |
| Nutrition | 12V, R14SG size battery (1.5V x 8 pcs) |
| Maximum working height | 2000 m |
| Dimensions | 270 mm x 190 mm x 80 mm |
| Weight | ~ 1700 g with batteries |
| Equipment | Nicetymeter ST4106 ground resistance meter – 1 pc |
