RIGOL DHO1074 Digital Oscilloscope 4 Channel, 70 MHz

Analog channel bandwidth: 70 MHz

4 analog channels and 1 EXT channel

12-bit vertical resolution

Real-time sample rate up to 2 GSa/s

Ultra-low noise floor for cleaner signals, measuring small signals accurately

Memory Depth up to 100 Mpts (optional)

Vertical sensitivity range: 500 μV/div to 10 V/div

Up to 1,500,000 wfms/s waveform capture rate with the UltraAcquire mode

Description

RIGOL DHO1074 Digital Oscilloscope 4 Channel, 70 MHz

Karya Mandiri Techindo has a wide range of RIGOL products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

NEW! 70 MHz, 4 analog channels and 1 EXT channel, Real-time sample rate up to 2 GSa/s, Memory Depth up to 100 Mpts (optional), 12-bit vertical resolution, Up to 1,500,000 wfms/s waveform capture rate, 10.1” 1280*800 HD touch display，EU Cable

Features RIGOL DHO1074 Digital Oscilloscope:

Brand-new chipset “Centaurus” developed by RIGOL
Analog channel bandwidth: 70 MHz
4 analog channels and 1 EXT channel
12-bit vertical resolution
Real-time sample rate up to 2 GSa/s
Ultra-low noise floor for cleaner signals, measuring small signals accurately
Memory Depth up to 100 Mpts (optional)
Vertical sensitivity range: 500 μV/div to 10 V/div
Up to 1,500,000 wfms/s waveform capture rate with the UltraAcquire mode
10.1” 1280*800 HD touch display
User-friendly Flex Knobs, bringing smoother interaction
Standard photoelectric encoder operating knobs, effectively prolonging its service life

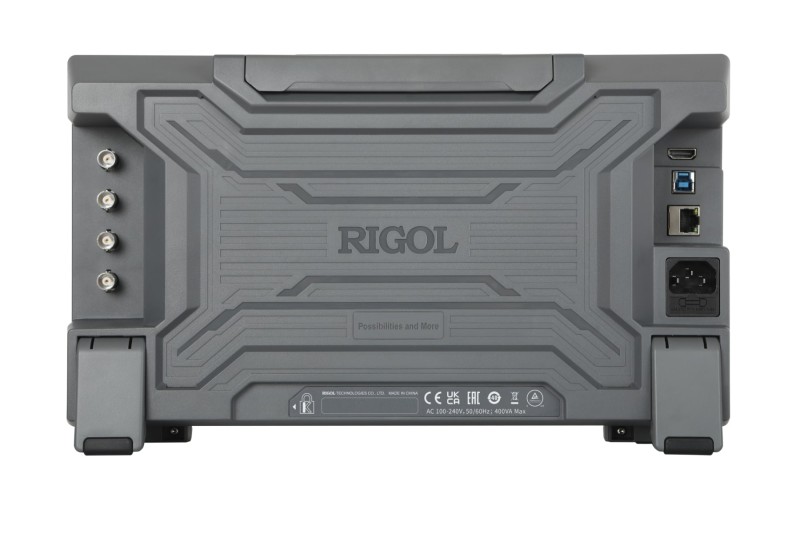

Standard USB Device & Host, LAN, and HDMI interfaces

The DHO1000 series provides improved signal integrity and value with Rigol’s latest oscilloscope technology. The UltraVision III platform, combined with a new ASIC chip design that provides true 12-bit samples makes the DHO1000 a great solution for benchtop applications where noise and accuracy are paramount. With bandwidths from 70 MHz to 200 MHz, these 2 and 4-channel oscilloscopes have Rigol’s best signal visualization capabilities. The DHO1000 series is a powerful entry-level solution for engineers seeking next-generation signal quality and value.

Model	Channels	Bandwidth	Vertical Res.	Max Sample Rate
DHO1072	2 + EXT	70 MHz	12 bit	2 GSa/s
DHO1074 ●	4 + EXT	70 MHz	12 bit	2 GSa/s
DHO1102	2 + EXT	100 MHz	12 bit	2 GSa/s
DHO1104	4 + EXT	100 MHz	12 bit	2 GSa/s
DHO1202	2 + EXT	200 MHz	12 bit	2 GSa/s
DHO1204	4 + EXT	200 MHz	12 bit	2 GSa/s

Specification RIGOL DHO1074 Digital Oscilloscope :

Sample rate	2 GSa/s (divided by number of active channels)
Vertical resolution	12 bits 16 bits (high resolution mode)
Vertical scale	500 μV/div – 10 V/div
Horizontal scale	2 ns/div – 1 ks/div
Interfaces	LAN, HDMI, USB Host/Device, Pass/Fail, Trigger Out
Decoding options	Parallel, RS232/UART, I2C, SPI, CAN, LIN
Display	10.1” LCD touchscreen (1280*800)
Dimensions	358.14 x 214.72 x 120.62 mm
Weight	3.8 kg

RIGOL DHO1074 – Datasheet
