Description

Rion VT-06 Viscometer | For High Viscosity Measurement

VT-06 is designed for quality control applications in industrial manufacturing processes—such as those for petrochemicals, paints, adhesives, and food products.
It enables viscosity measurement across a wide range, including for fluids like the gear oil used in construction machinery.

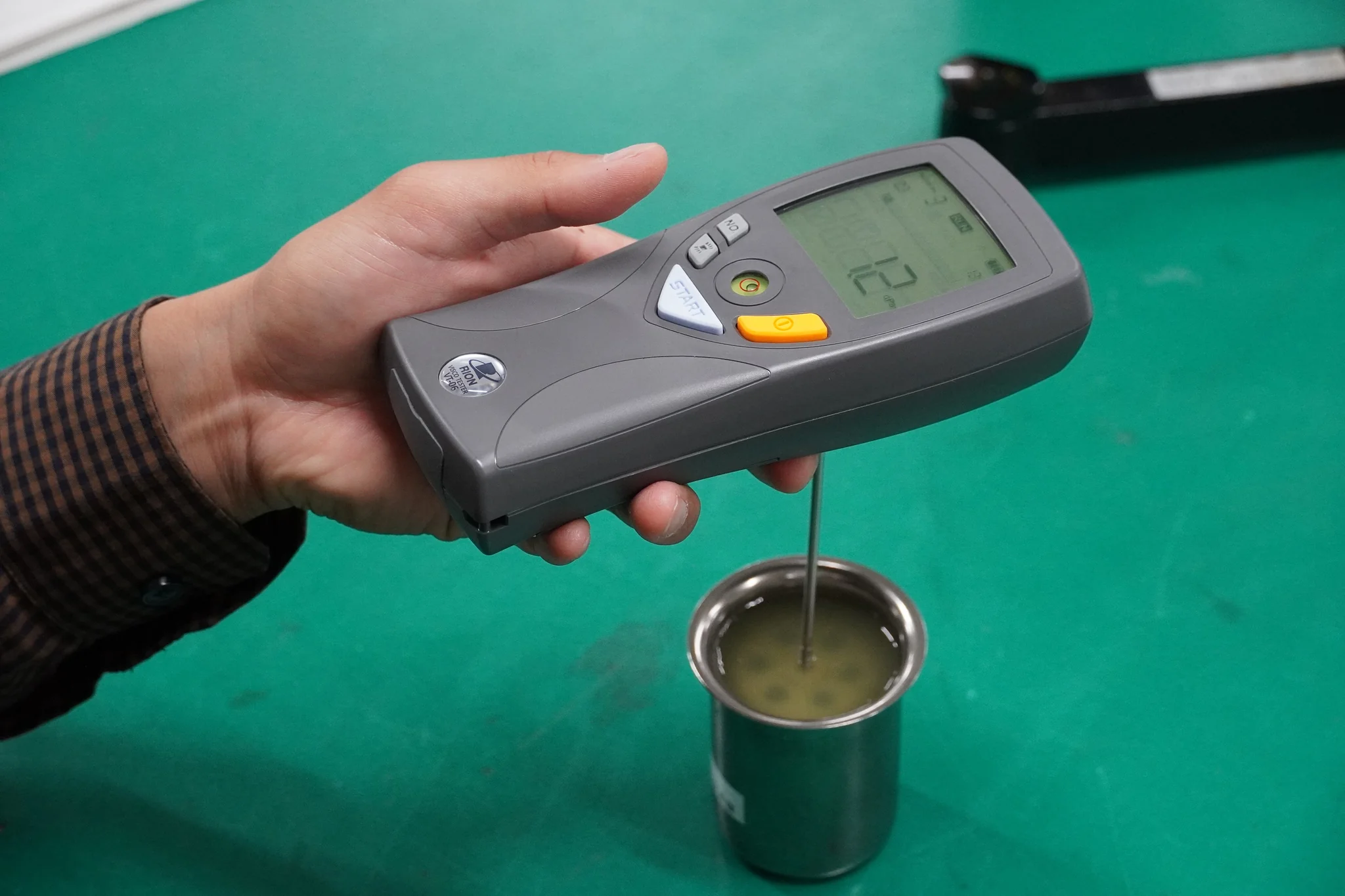

Measurements are performed simply by immersing the rotor in the liquid.
The resistance to rotor movement caused by viscosity (torque) is measured to provide a direct reading.

Features Rion VT-06 Viscometer :

Compact and lightweight make the unit easily portable and allow operation with one hand
Can be powered by alkaline batteries, nickel-hydride rechargeable batteries, or AC adapter
Direct indication of viscosity in decipascal-seconds (SI units)

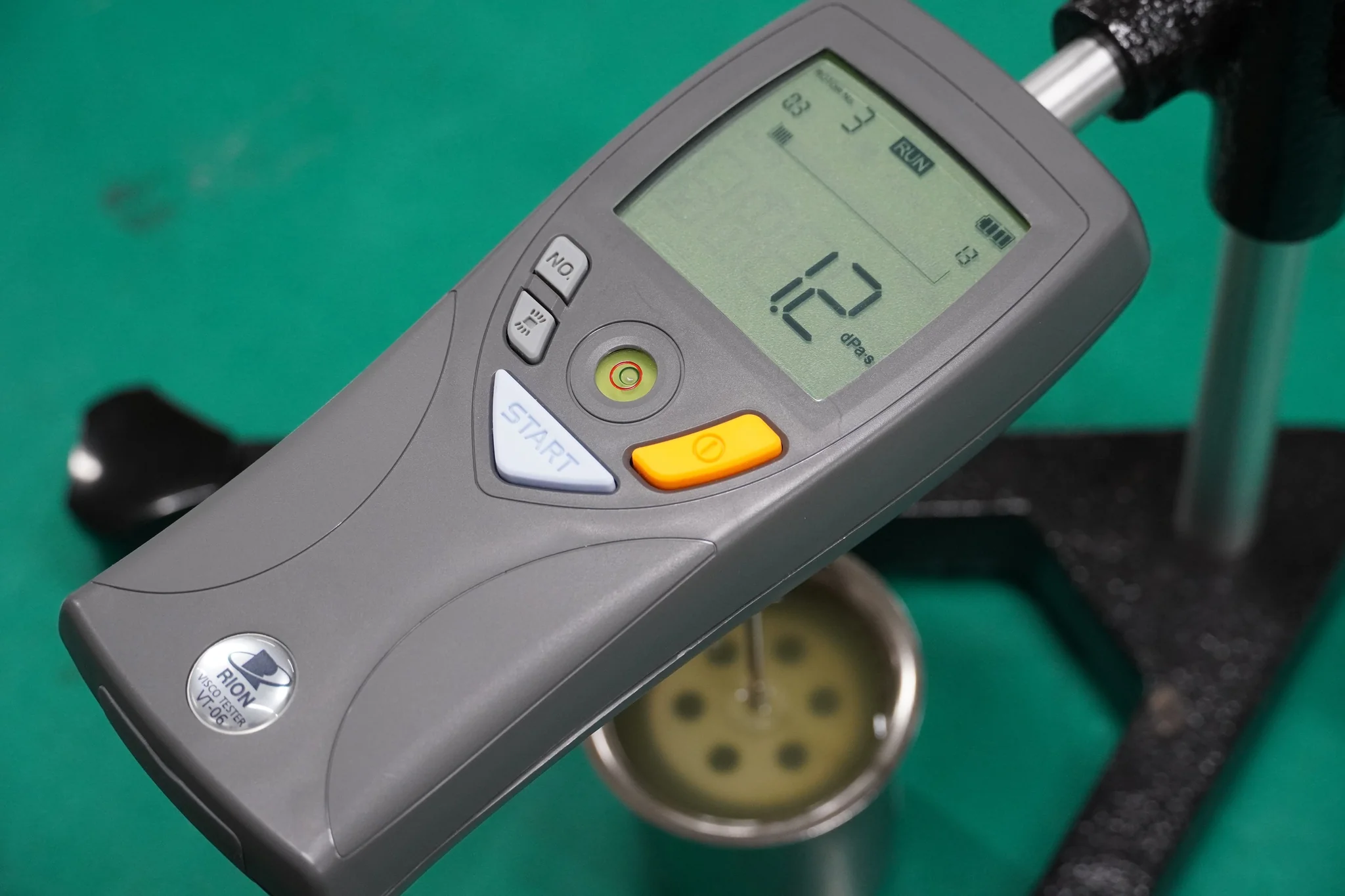

Dedicated stand for measurement available as option

Specification Rion VT-06 Viscometer :

Applicable standards	CE marking, WEEE Directive, Chinese RoHS
Measurement range	(based on combination with the cup specified below “Sample fluid capacity”)
No. 3 rotor: No. 1 rotor: No. 2 rotor:	0.3 dPa•s to 13 dPa•s (resolution: 0.1) 3 dPa•s to 150 dPa•s (resolution: 1) 100 dPa•s to 4000 dPa•s (resolution: 10)
Sample fluid capacity
No. 1 and No. 2 rotor
	Approx. 350 mL (with JIS 300 mL beaker)
No. 3 rotor	Approx. 150 mL (with No. 3 cup) Clearance between rotor end and cup bottom: about 15 mm

Measurement accuracy and reproducibility
	±10% ±1 digit of indicated value
Reproducibility	±5% * Calibrated according to JIS Z 8809:2011 standard liquids for calibrating viscometer * The rounding error resulting from resolution occurs
Rotor speed	62.5 rpm
Max. continuous measurement time per measurement
	100 s
Display value hold function
	Value at end of measurement is retained
Backlight function	Switchable backlight Time until auto-off: 60 s (when rotor is not operating and unit is powered from batteries)

Auto shutdown function (when an AC adapter is not used)
	If rotor is not turning and no controls are operated for 5 minutes, power is automatically shut off
Resume function	Last selected rotor number setting is retained during power-off
Ambient conditions for use
	5°C to 35°C, 10% to 90%RH (no condensation)
Power requirements	Alkaline batteries LR6, Ni-MH rechargeable batteries, or AC adapter VA-05J (5 V to 7 V : rated voltage 6 V)
Current consumption	approx. 250 mA (at maximum torque)
Battery voltage check	Displaying battery status (4 steps)
Dimensions	175 mm (H) × 77 mm (W) × 45 mm (D) (maximum) 175 mm (H) × 77 mm (W) × 40 mm (D) (without protruding parts)
Weight	Approx. 260 g (without batteries)

Supplied accessories
No. 1 rotor (dia. 24 mm × 53 mm × 166 mm)	SUS304	1
No. 2 rotor (dia. 15 mm × 1 mm × 113 mm)	SUS304	1
No. 3 rotor (dia. 45 mm × 47 mm × 160 mm)	SUS304	1
No. 3 Cup (dia. 52.6 mm × 75 mm)	SUS304	1
Rotor extension (in a tube) (900 mm; 300 mm × 3)	SUS304	1
IEC LR6 (size AA) battery		4
Instruction manual		1
Viscosity measurement guide		1
Inspection certificate		1

Optional accessory
AC adapter	VA-05J
Stand	VA-04

Rion VT-06 Datasheet
