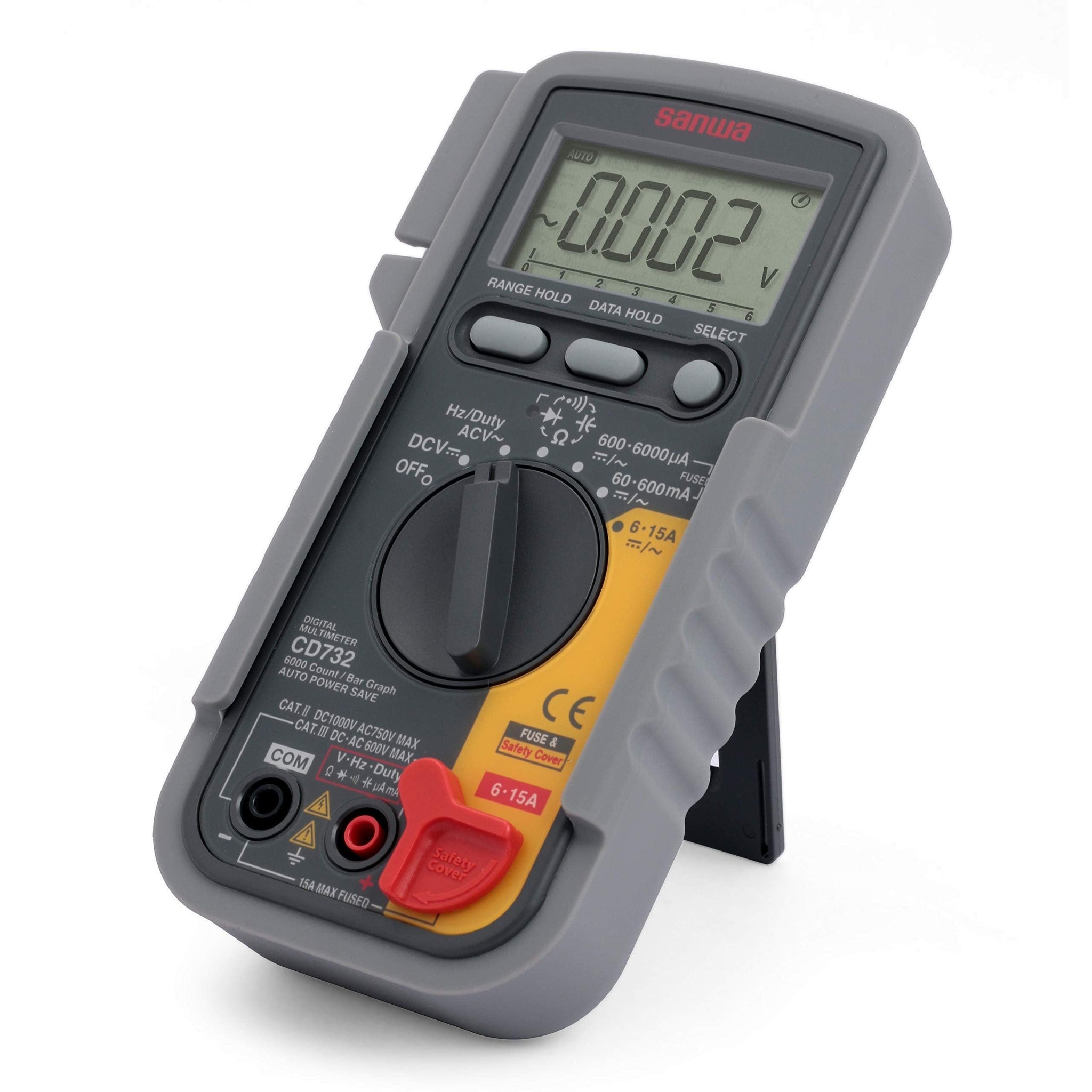

Sanwa CD732 Digital Multimeter
Karya Mandiri Techindo has a wide range of Sanwa products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Features Sanwa CD732 Digital Multimeter
- 6000 count
- Use of fire-retarding materials for holster and circuit board
- Wide-range capacitance measurement (0.01nF to 3999μF)
- Data hold / Range hold
- Safety cap on 6・15A terminal
- Protective holster with wall hanger and lead holder
- Auto Power Save (16min.) (cancelable)
- Display : numeral display 6000, bar graph 61 segments
- Sampling rate : 3 times/sec., 30 times/sec. for bar graph
Specifications Sanwa CD732 Digital Multimeter
| CD732 | Measuring range | Best accuracy | Resolution | Input impedance |
|---|---|---|---|---|
| DCV | 600m/6/60/600/1000V | ±(0.5%+2) | 0.1mV | 10M～100MΩ |
| ACV | 6/60/600/750V | ±(1.2%+5) | 0.001V | 10M～11MΩ |
| DCA | 600μ/6000μ/60m/600m/6/15A | ±(1.5%+3) | 0.1μA | |
| ACA | 600μ/6000μ/60m/600m/6/15A | ±(1.8%+5) | 0.1μA | |
| Resistance | 600/6k/60k/600k/6M/60M | ±(1.2%+4) | 0.1Ω | |
| Capacitance | 40n/400n/4μ/40μ/400μ/4000μ | ±(5.0%+6) | 0.01nF | |
| Frequency | 9.999/99.99/999.9/9.999k/99.99k | ±(0.5%+3) | 0.001Hz | |
| Duty cycle | 20～80% | ±（0.5%+5) | ||
| Continuity | Buzzer sounds and LED lights up at between 10Ω～60Ω Open voltage:approx.0.63V | |||
| Diode test | Open voltage:approx.2.7V | |||
| Display | numeral display 6000 bar graph 61 segments |
| Sampling rate | 3 times/sec., 30 times/sec.,for bar graph |
| Bandwidth | 45～500Hz |
| Fuse | 0.4A/1000V 30kA Φ6.3×32mm 16A/1000V 30kA Φ10×38mm |
| Battery | R6(1.5V)x2 |
| Battery life | Approx.400h (manganese battery) at DCV range |
| Size/Mass | H167×W90×D48mm/320g(including holster) |
| Safety standard | IEC61010 CAT.Ⅲ600V/CAT.Ⅱ 1000V |
Standard Accessories
- Test lead: TL-25a
- Holster: H-70
Optional Accessories
- Clamp probe : CL-22AD, CL3000, CL33DC
- HV probe : HV-60
- Carrying case : C-SP
- Clip adapter : CL-14
