Product Description

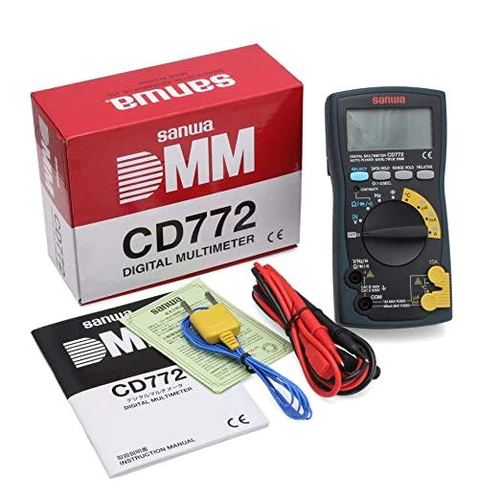

Sanwa CD772 Digital Multimeter

Basic Features:

  • 3-3/4 digits 4000 count
  • AC True RMS
  • Easy to read large LCD with Backlight
  • Large breaking capacity fuse 30kA
  • K-type thermocouple temperature measure ment -20℃〜300℃
  • Thermo plastic elastomer, high resistance against drop shock
  • Safety cap on current terminal
  • Data hold, Range hold, Relative function
  • Continuity check, Diode test
  • Auto power off function (30min.)
  • Maximum 20A can be measured if the measurement time is less than 10 seconds. (Take 10 minutes or longer intervals between measurements)

Display : numeral display 4000
Sampling rate : 3 times / sec.
AC frequency bandwidth : 45〜500Hz (4V range), 45〜1KHz (40V range and above)

Specifications

CD772 Measuring range Best accuracy Resolution Input impedance
DCV 400m/4/40/400/1000V ±(0.5%+2) 0.1mV 10M~100MΩ
ACV 4/40/400/1000V ±(1.2%+8) 0.001V 10M~11MΩ
DCA 400μ/4000μ/40m/400m/4/15A ±(1.4%+3) 0.1μA
ACA 400μ/4000μ/40m/400m/4/15A ±(1.8%+6) 0.1μA
Resistance 400/4k/40k/400k/4M/40MΩ ±(1.2%+5) 0.1Ω
Capacitance 50n/500n/5μ/50μ/100μF ±(5%+10) 0.01nF
Temperature -20°C~300°C ±(3%+30) 0.1°C
Frequency 5/50/500/5k/50k/100kHz ±(0.3%+3) 0.001Hz
Continuity Buzzer sounds and LED lights up at between 0Ω and 85Ω(±45Ω).Open voltage:Approx.0.4V
Diode test Open voltage:approx.1.5V
Display numeral display 4000
Sampling rate 3 times/sec.
Bandwidth 45~500Hz(4V range)、45~1kHz(40V range and above)
Fuse 0.5A/1000V 30kA Φ6.35×32mm
16A/1000V 30kA Φ10×38mm
Battery R6Px2
Battery life Approx.150h (manganese battery) at DCV range
Size/Mass H166×W82×D44mm/360g
Safety IEC61010CAT.Ⅲ600V/CAT.Ⅱ1000V



Optional Accessories:

  • Clamp probe : CL-20D, CL-22AD, CL33DC HV probe : HV-60
  • Temperature probe : K-8-800, K-8-650, K-8-300, K-8-500, K-8-250
  • K type adapter : K-AD
  • Carrying case : C-77, C-77H
  • Clip adapter : CL-13a, CL-14,CL-15a, CL-DG3a, TL-9IC
  • Test lead : TLF-120



Sanwa CD772 Digital Multimeter Datasheet



Jual Sanwa CD772 Digital Multimeter dengan harga murah dan berkualitas bergaransi tentunya. dapat di kirim ke seluruh wilayah Indonesia.

Jika anda butuh penawaran dan info Stok silahkan hubungi sales kami di No Telpon 0821 2742 8667 Telpon/SMS/Whatsapp.

Karyamandiritechindo.com Supplier dan Distributor Sanwa di Indonesia. Karyamandiritechindo.com menyedikakan juga berbagai merk Alat ukur & Lab, Alat Survey, Alat komunikasi dan GPS

Dalam pengiriman produk yang pelanggan beli, sebelumnya sudah kami cek untuk memastikan produk dalam keadaan baik dan siap kirim.
