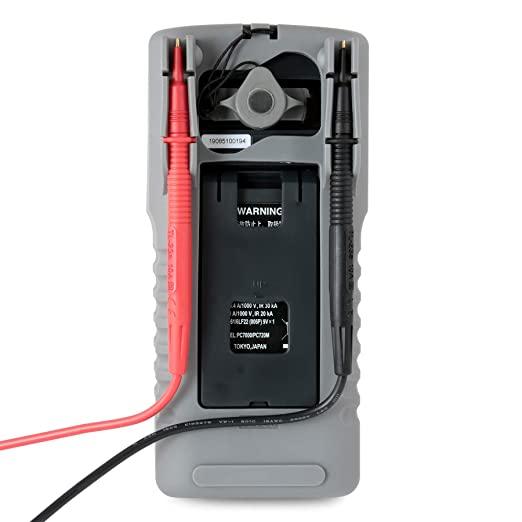

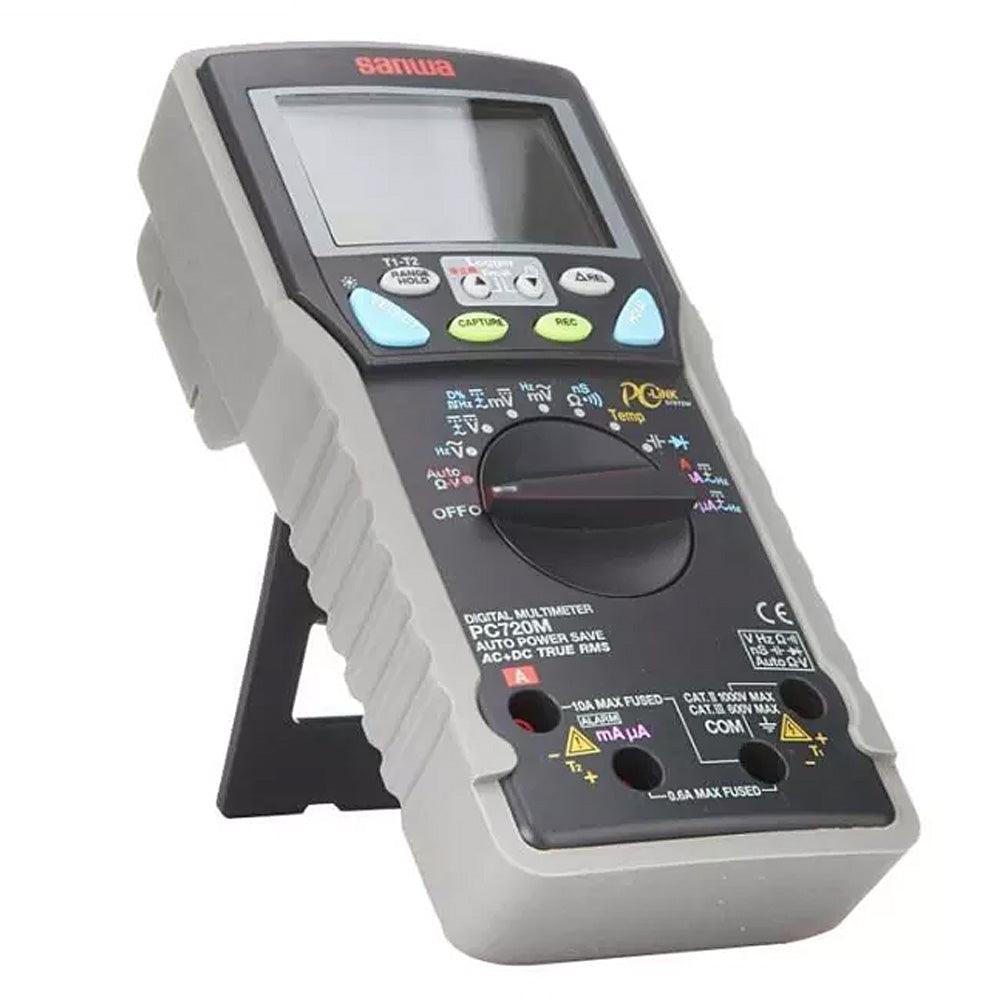

Sanwa PC720M Digital Multimeter
Karya Mandiri Techindo has a wide range of Sanwa products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Features Sanwa PC720M Digital Multimeter
- 4 digits 9999 count & 3-5/6 digits 6000 count
- AC True RMS
- Dual display with backlight
- Automatic measurement for ACV/DCV/Ω under low impedance
- High speed bar graph
- Capacitance measurement
– Not suitable for measurement of condensers with large leak current - K type temperature -50℃〜1000℃
– Optional accessory K-AD is necessary
– K type temp. sensor K-250PC is included as a standard accessory - Frequency measurement (AC sine wave only)
- Logic frequency measurement, duty cycle measurement
- Conductance measurement
- MAX, MIN, MAX-MIN recording mode
- Capture (peak hold) 1ms in duration
- Data hold, Range hold
- Relative value
- Auto power saving mode (30min.) (cancelable)
- Optical Link USB interface (optional) Data Logging Mode
- 87,328 data points in built-in memory (single display)
– 43,664 data points in built-in memory (dual display) - Selection of measurement interval
– 0.05s/0.1s/0.5s/1s/2s/3s/4s/5s/10s/15s/30s/
– 60s/120s/180s/300s/600s - Auto-standby mode when a sampling speed of 30s or longer is selected
- Export logged data to PC
- Optional accessory PC Link7 is necessary
- Display : numeral display 9999 & 6000, bar graph 41 segments
- Sampling rate : 5 times/sec., 60 times/sec. for bar graph Max.EN61326-1:2006
- Battery life : Approx. 100h (alkaline battery) at DCV range
Specifications Sanwa PC720M Digital Multimeter
| PC720M | Measuring range | Best accuracy | Resolution | Input impedance |
|---|---|---|---|---|
| DCV | 60m/600m/9.999/99.99/999.9 | ±(0.06%+2) | 0.01mV | 10MΩ |
| ACV | 60m/600m/9.999/99.99/999.9 | ±(0.5%+3) | 0.01mV | |
| DCA | 600μ/6000μ/60m/600m/6/10 | ±(0.2%+4) | 0.1μA | |
| ACA | 600μ/6000μ/60m/600m/6/10 | ±(0.6%+3) | 0.1μA | |
| Resistance | 600/6k/60k/600k/6M/60MΩ | ±(0.1%+3) | 0.1Ω | |
| Conductance | 99.99nS | ±(0.8%+10) | 0.01nS | |
| Capacitance | 60n/600n/6μ/60μ/600μ/6m/25m | ±(0.8%+3)※ | 0.01nF | |
| Temperature | -50～1000°C(thermocouple K type) | ±(0.3%+2) | 1°C | |
| Frequency | 15Hz～50kHz | ±(0.04%+4) | 0.01Hz | |
| Logic frequency | 5Hz～1MHz | ±(0.03%+4) | 0.01Hz | |
| Duty cycle | 0%～100% | ±(3d/kHz+2) | 0.01% | |
| Continuity | Buzzer sounds at between 20Ω and 300Ω Open voltage:Approx.1.2V | |||
| Diode test | Open voltage:approx.3.5V | |||
| Display | numeral display 9999 & 6000 Bar graph 41 segments |
| Sampling rate | 5 times/sec. 60 times/sec. for bar graph |
| Bandwidth | V:40Hz～3kHz 3kHz～20kHz(below 99.99V) A:40～1kHz |
| Fuse | 11A/1000V IR20kA Φ10× 38 mm 0.4A/1000V IR30kA Φ 6.3× 32 mm |
| Battery | 6LR61(9V)x1 |
| Battery life | Approx.100h (alkaline battery) at DCV range |
| Size/Mass | H184×W86×D52mm/430g（including holster) |
| Safety | IEC61010 CAT.Ⅲ600V/CAT.Ⅱ1000V |
※Accuracies with film capacitor or better, which has low leakage current
Standard Accessories:
- Test lead: TL-23a
- Temperature sensor: K-250PC
- Holster: H-700
Optional Accessories:
- Software : PC Link7
- Optical PC link cable : KB-USB7
- Clamp probe : CL-20D, CL-22AD, CL33DC
- Temperature probe : T-300PC (PC Link software is necessary.) K-8-250〜800
- K type adapter : K-AD
- Test lead : TL-21M, TLF-120
- Carrying case : C-PC7
- Clip adapter : CL-13a, CL-14,CL-15a, CL-DG3a, TL-9IC
