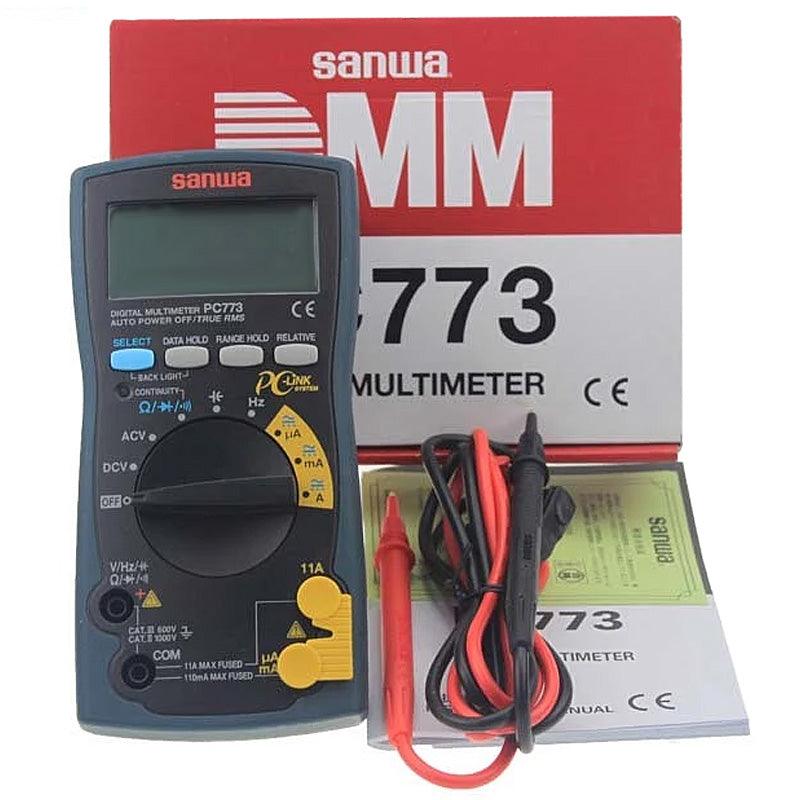

Sanwa PC773 Digital Multimeter
Karya Mandiri Techindo has a wide range of Sanwa products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Features Sanwa PC773 Digital Multimeter
- 4-1/2 digits 11000 count
- 0.28% best accuracy
- AC True RMS
- Thermo plastic elastomer, high resistance against drop shock
- Maximum DC/AC 11A can be measured
- Continuity buzzer and LED
- Data hold, Range hold, Relative function
- Auto power off function (30 min.)
- Optical link USB interface (optional)
- Display : numeral display 11000
- Sampling rate : 4 times / sec.
- AC frequency bandwidth : 45〜100Hz(110mV range), 45〜500Hz(1.1V range), 45〜1kHz(11V range and avobe, ACA)
Specifications Sanwa PC773 Digital Multimeter
| PC773 | Measuring range | Best accuracy | Resolution | Input impedance |
|---|---|---|---|---|
| DCV | 110m/1.1/11/110/1000V | ±(0.28%+2) | 0.01mV | 10M～ 100MΩ |
| ACV | 110m/1.1/11/110/1000V | ±(0.7%+50) | 0.01mV | |
| DCA | 110μ/1100μ/11m/110m/11A | ±(0.5%+4) | 0.01μA | |
| ACA | 110μ/1100μ/11m/110m/11A | ±(0.9%+20) | 0.01μA | |
| Resistance | 110/1.1k/11k/110k/1.1M/11M/110MΩ | ±(0.3%+6) | 0.01Ω | |
| Capacitance | 11n/110n/1.1μ/11μ/110μ/1.1m/11m/110mF | ±(2.0%+20) | 0.001nF | |
| Frequency | 110Hz/1100Hz/11kHz/110kHz/1.1MHz | ±(0.01%+2) | 0.1Hz | |
| Continuity | Buzzer sounds and LED lights up at less than 30Ω Open voltage:approx. 0.2V | |||
| Diode test | Open voltage:approx.0.2V | |||
| Display | numeral display 11000 |
| Sampling rate | 4 times/sec. |
| Bandwidth | 45Hz～100Hz（110mV range), 45Hz～500Hz（1.1V range), 45Hz～1kHz（11Vrange and above, ACA) |
| Fuse | 315mA/1000V, breaking capacity 30kA 12A/1000V、breaking capacity 30kA |
| Battery | R6x2 |
| Battery life | Approx.200h (manganese battery) at DCV range |
| Size/Mass | H166×W82×D44mm/360g |
| Safety | IEC61010 CAT.Ⅲ600V/CAT.Ⅱ1000V |
Standard Accessories:
- Test lead: TL-25a
Optional Accessories:
- Software : PC Link 7 (This model works with PC Link 7 only.)
- Clamp probe : CL-20D, CL-22AD, CL33DC,
- Temperature probe : T-300PC (PC Link software is necessary.)
- Optical PC link cable : KB-USB773 Test lead : TLF-120
- Carrying case : C-77, C-77H
- Clip adapter : CL-13a, CL-14,CL-15a, CL-DG3a, TL-9IC
Sanwa PC773 – Datasheet
