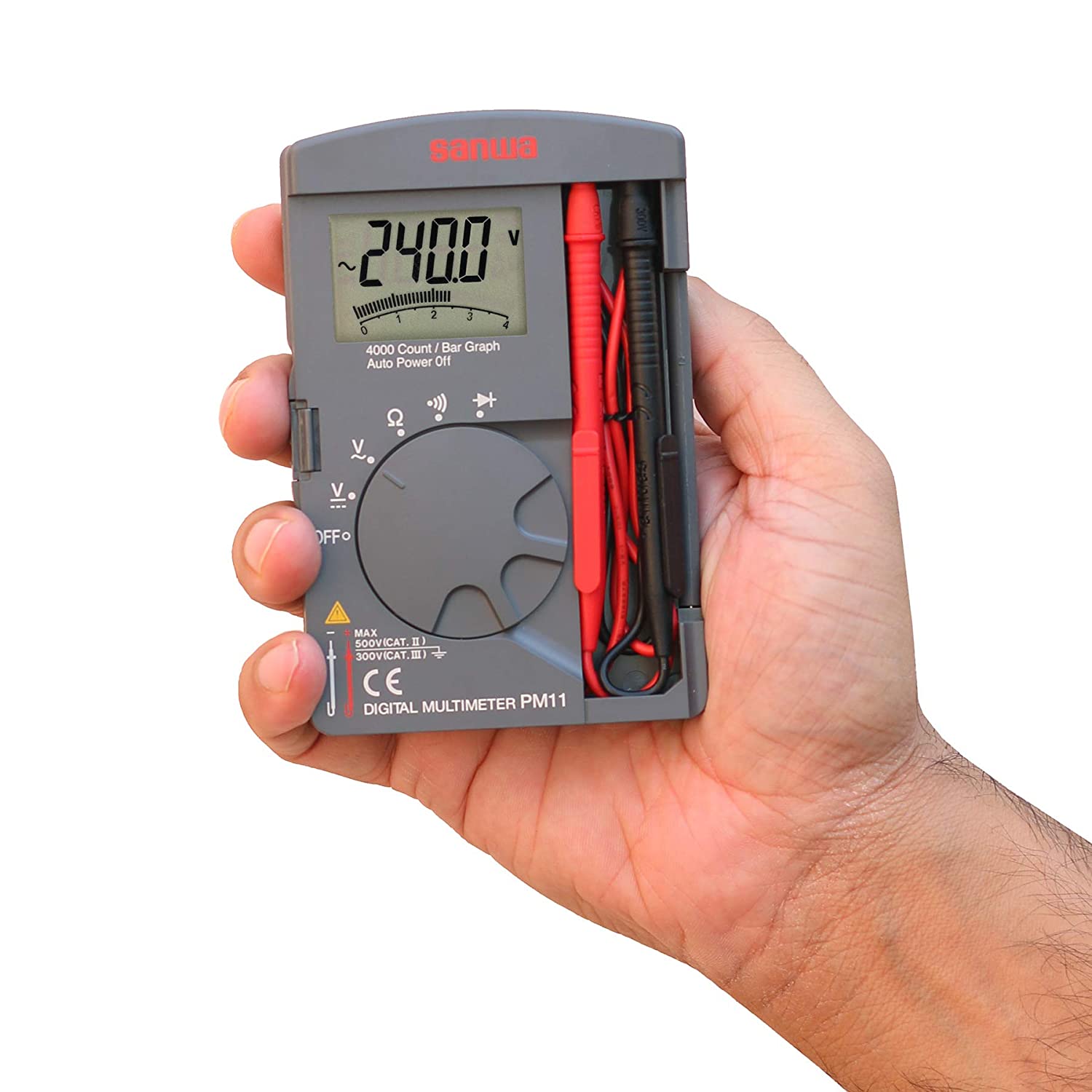

Sanwa PM11 Digital Multimeter
Karya Mandiri Techindo has a wide range of Sanwa products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Features Sanwa PM11 Digital Multimeter
- 3-3 / 4 digits 4000 count
- 0.8% best accuracy
- Analog bar graph
- Compact storage of test leads
- Test lead can be snapped into a fixed position atop the case
- Display : numeral display 4000, bar graph 40 segments
- Sampling rate : 1.3 times / sec., 13 times / sec. for bar graph
- AC frequency bandwidth : 45〜1kHz
Specifications Sanwa PM11 Digital Multimeter
| PM11 | Measuring range | Best accuracy | Resolution | Input impedance |
|---|---|---|---|---|
| DCV | 400m/4/40/400/500V | ±(0.8%+4) | 0.1mV | 10M～100MΩ |
| ACV | 4/40/400/500V | ±(2.3%+8) | 0.001V | 10M～11MΩ |
| Resistance | 400/4k/40k/400k/4M/40MΩ | ±(2.0%+4) | 0.1Ω | |
| Continuity | Buzzer sounds at less than 35Ω Open voltage:approx.1.2V | |||
| Diode test | Open voltage:approx.3V | |||
| Display | numeral display 4000, bar graph 40 segments |
| Sampling rate | 1.3 times/sec., 13 times/sec. for bar graph |
| Bandwidth | 45～1kHz |
| Battery | Button battery LR-44X2 |
| Size/Mass | H117×W76×D18mm/approx.117g |
| Test lead length/Pin tip | Length: approx.0.5m/15mm |
| Safety | IEC61010 CAT.Ⅲ300V CAT.ⅡDC/AC500V |
Optional Accessories
- Clip adapter : CL-15a, CL-DG3a
