Product Description

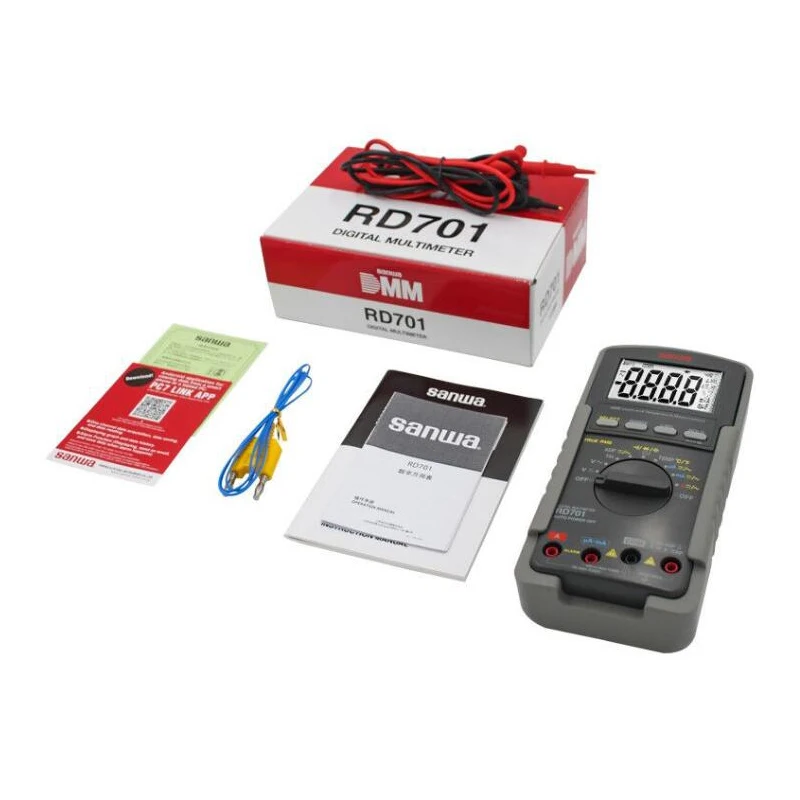

Sanwa RD701 Digital Multimeter
Features Sanwa RD701 Digital Multimeter
- 3-3 / 4 digits 4000 count
- 0.3% best accuracy
- AC True RMS ※RD701 only
- Capacitance measurement
Not suitable for measurement of condensers with large leak current. - K type temperature
Optional accessory K-AD is necessary.
K type temp. sensor K-250PC is included as a standard ac cessory - Frequency measurement
Input voltage : 20VACrms and under
Input signal : sign wave or square wave with 40%-70% duty
Input sensitivity : 10Hz〜20kHz/0.9Vrms and above
20kHz〜500kHz/2.6Vp or 1.9Vrms and above
500kHz〜1MHz/4.2Vp or 3Vrms and above - ADP function (for current sensor)
- Max recording measurement
- Data hold / Range hold
- Relative value
- Auto power off (30min.) (cancelable)
- Alarm for improper test lead insertion to current terminal
- Protective holster with wall hanger and lead holder
- Tilt stand
Display : numeral display 4000 (Hz : 9999, capacitance : 5000)
Sampling rate : 3 times / sec. (Hz : 2 times / sec.)
AC frequency bandwidth : 50〜500Hz
Specifications Sanwa RD701 Digital Multimeter
| RD701 | Measuring range | Best accuracy | Resolution | Input impedance |
|---|---|---|---|---|
| DCV | 400m/4/40/400/1000V | ±(0.3%+4) | 0.1mV | 10M～1000MΩ |
| ACV | 400m/4/40/400/1000V | ±(1.5%+5) | 0.1mV | |
| DCA | 400μ/4000μ/40m/400m/4/10A | ±(1.2%+3) | 0.1μA | |
| ACA | 400μ/4000μ/40m/400m/4/10A | ±(1.5%+4) | 0.1μA | |
| Resistance | 400/4k/40k/400k/4M/40MΩ | ±(0.6%+4) | 0.1Ω | |
| Capacitance | 500n/5μ/50μ/500μ/3000μF | ±(2.5%+6) | 0.1nF | |
| Temperature | -20°C～300°C | ±(2%+3) | 1°C | |
| Frequency | 50Hz～1MHz | ±(0.5%+4) | 0.01Hz | |
| Continuity | Buzzer sounds at between 20Ω and 120Ω. Open voltage:Approx.0.4 | |||
| Diode test< | Open voltage:approx.1.6V | |||
| Display | numeral display 4000(Hz:9999, capacitance:5000) |
| Sampling rate | 3 times/sec.(Hz:2 times/sec.) |
| Bandwidth | 50～500Hz |
| Fuse | 12.5A/500V IR20kA Φ6.3×32mm 0.63A/500V IR50kA Φ6.3×32mm |
| Battery | 6F22(9V)×1 |
| Size/Mass | H179×W87×D55mm/460g（including holster) |
Optional Accessories:
- Clamp probe : CL124, CL140, CL-20D, CL-22AD, CL33DC
- HV probe : HV-60
- Temperature probe : K-8-800, K-8-650, K-8-300, K-8-500, K-8-250
- K type adapter : K-AD
- Test lead : TL-21M, TLF-120
- Carrying case : C-CD
- Clip adapter : CL-11, CL-13, CL-15, CL-DG3a, TL-8IC
Sanwa RD701 – Datasheet
