Sanwa SP20 Analog Multitester
Karya Mandiri Techindo has a wide range of Sanwa products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

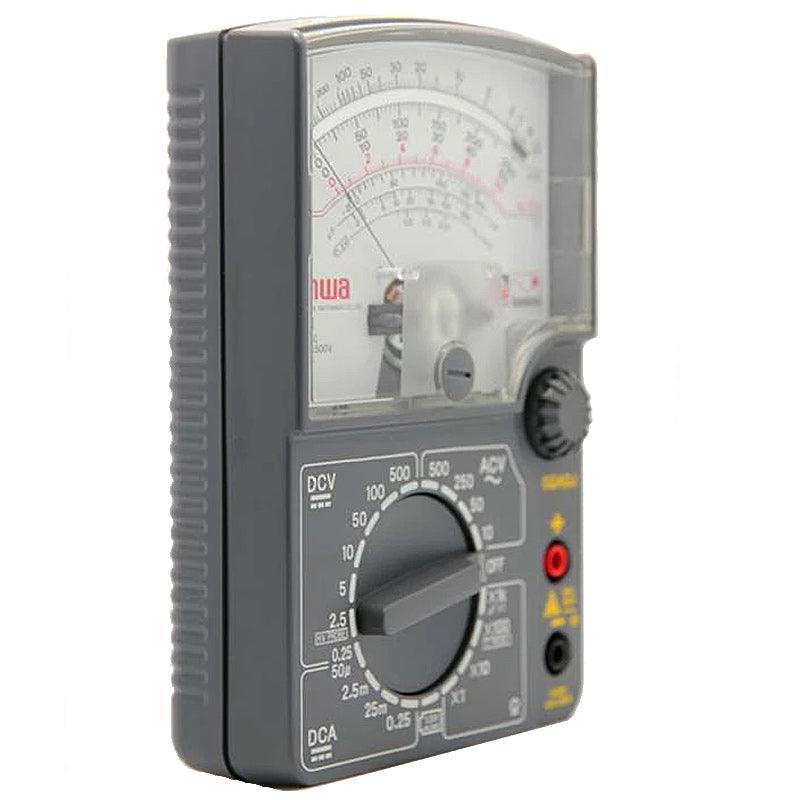

The Sanwa SP20 is a portable analog multi-tester with 20ch measurement ranges.
The SP20 is specially designed for low power circuits and home electric appliance testing. This meter is an Internal magnet type, Taut band meter with a full-scale accuracy of 3%. The device is capable of measuring ACV and DCV along with high voltage DC of up to 25kV (using optional HV-10 probe). The device is also capable of measuring resistances of up to 2MΩ and capacitance with a full-scale value of 500uF. Temperature measurement is also possible using the optional T-THP temperature probe.
The SP20 has protective covering which provides protection against drop shocks. The circuit is protected by a fuse rated at (250V/0.5A) with a blowout capacity of 500 Amperes.
Features Sanwa SP20 Analog Multitester
- 20ch measurement ranges
- Capacitance measurement 500μF

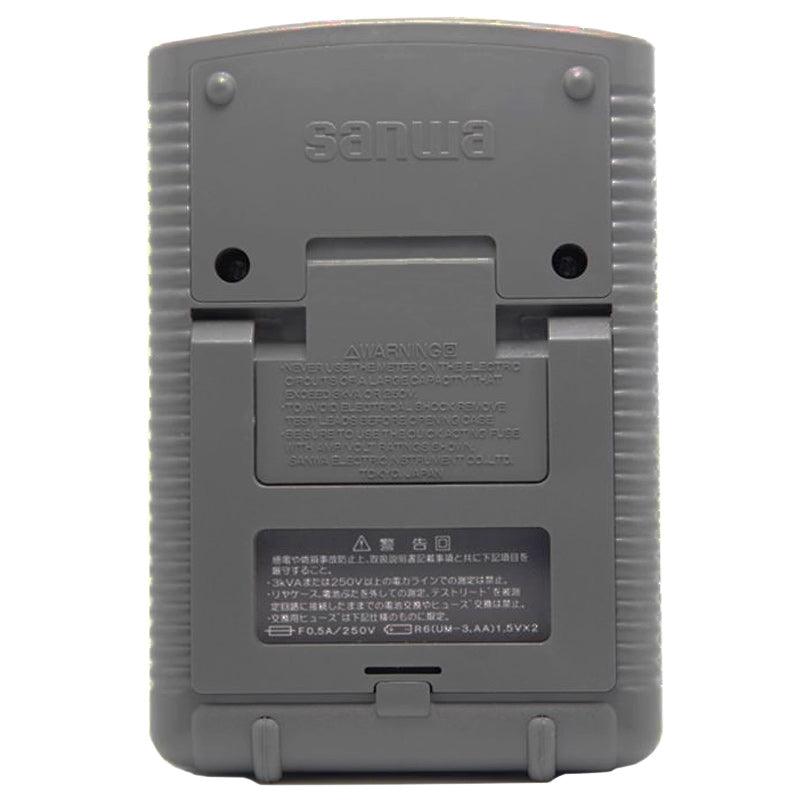

- Tilt stand
- DC high voltage and temperature measurement (with optional accessories)
- Bandwidth : 40〜100kHz (AC10V)
Specifications Sanwa SP20 Analog Multitester
| Function | Measuring range | Tolerance |
|---|---|---|
| DCV | 0.25/2.5/5/10/50/100（20kΩ/V）/500V（9kΩ/V) | ±3% of full scale |
| ACV | 10/50/250/500V（9kΩ/V) | ±3% of full scale |
| DCA | 50μ/2.5m/25m/0.25A | ±3% of full scale |
| Resistance | 2k/20k/200k/2MΩ | ±3% of arc |
| Capacitance | 500μF | Approximate value |
| DC high voltage | DC25kV (Using separately available probe HV-10) | ±20% with probe |
| Temperature | -20 to + 200℃ (Using separately available probe T-THP) | ±3% (Using T-THP) |
| Battery check | 1.5V (1.0～2.0V) | Approximate value |
| Frequency characteristic | AC10V range 40Hz to 100kHz: frequency response within ±3% |
| Battery | R6P(AA battery)1.5Vx2 |
| Built-in fuse | F0305 Φ6.3x30mm 0.5A/250V 300A Glass fuse |
| Size/Mass | H144×W99×D41mm/Approx. 270g |
※The value in （ ）at DCV and ACV is input resistance
Standard accessories
Test lead TL-61
Optional Accessories:
- HV probe : HV-10
- Temperature probe : T-THP
- Carrying case : C-SPH or C-SP
- Clip adapter : CL-14, CL-15a, CL-DG3a, TL-9IC
- Test lead : TL-91M, TLF-120
