Sanwa TA55 Analog Multitester

Karya Mandiri Techindo has a wide range of Sanwa products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

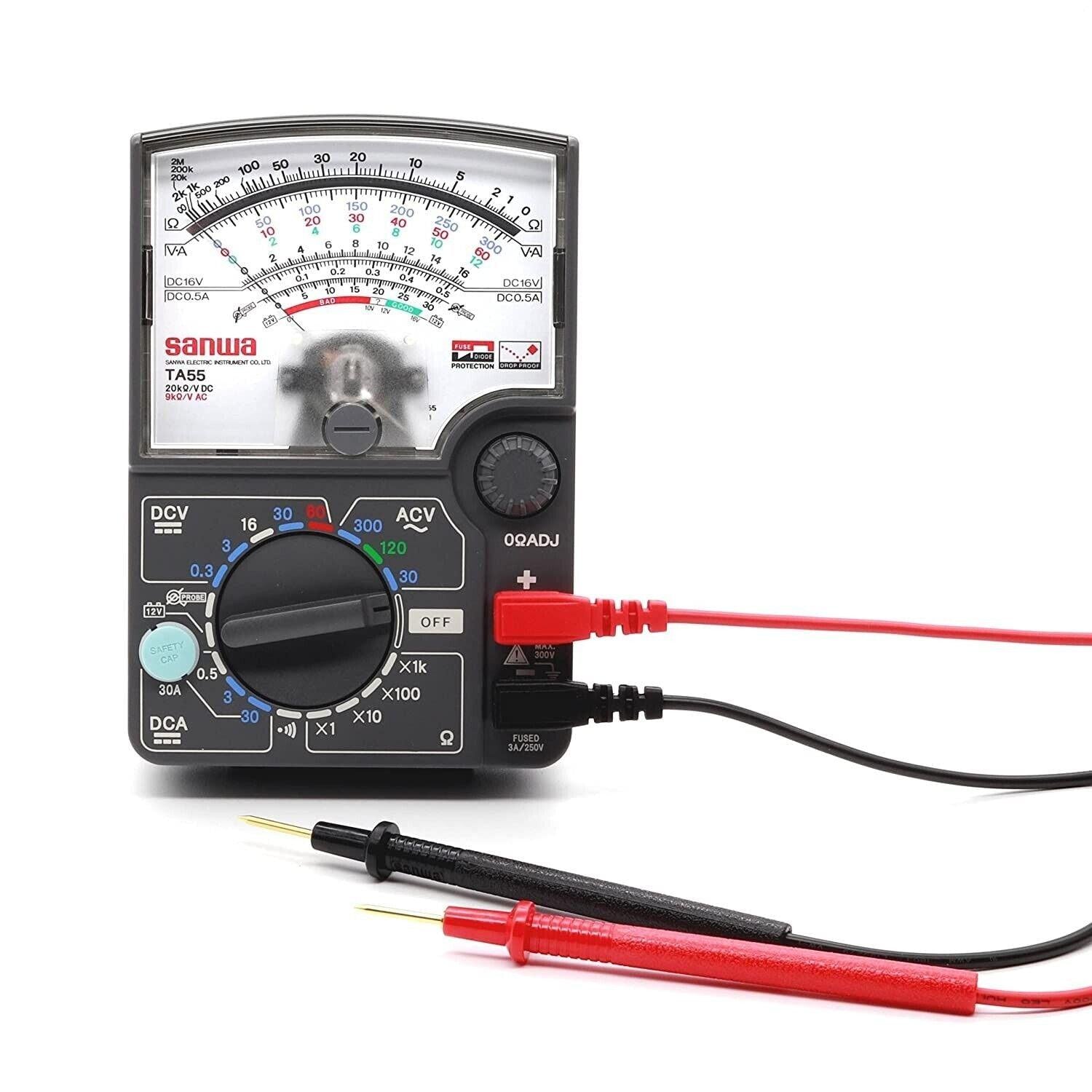

The Sanwa TA55 is a portable analog multi-tester that comes with a color-matching scale and high DC current measurement for automotive applications.

The TA55 multimeter is a taut-band type meter with an easy color matching scale and measurement ranges for DCV, DCA, & ACV measurements. The TA55 can measure DC current of up to 30 Amperes or 300 Amperes DC using an optional CL33DC clamp. The device can measure a maximum of 60 Volts DC and 300 Volts AC making it perfect for measuring home electrical outlets and electric appliances. Measuring resistances of up to 2MΩ and continuity test with a buzzer that sounds at less than approximately 70Ω is also possible with a TA-55 analog multi-tester.

The device has a protective casing that provides protection against drop shocks and has a (250V / 3A) breaking capacity (300A) fast-blow fuse for protecting the internal circuity of this instrument.

Features Sanwa TA55 Analog Multitester

High level panel visibility
Continuity check buzzer
Tilt-stand
Measureable upto DC30A / DC300A with optinal clamp probe
Bandwidth : 40〜5kHz

Specifications Sanwa TA55 Analog Multitester

Function	Measuring range	Tolerance
DCV	0.3/3/16/30/60V（20kΩ/V)	±3% of full scale
ACV	30/120/300V（9kΩ/V)	±4% of full scale
DCA	0.5/3/30A	±5% of full scale
Resistance	2k/20k/200k/2MΩ	±3% of arc
Continuity	≦ approx. 70Ω: Beep sounds. Open circuit voltage: approx.3V
Battery check	For 12V automobile battery

Frequency characteristic	40Hz to 5kHz: frequency response within ±3%
Battery	R6P(AA battery)1.5Vx2
Built-in fuse	F0020 Φ6.4x30mm 3A/250V 300A Glass fuse
Size/Mass	H142×W97×D38mm/Approx. 300g
