SHATOX SX-150 Portable Octane / Cetane Analyzer
Karya Mandiri Techindo has a wide range of SHATOX products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Product Image

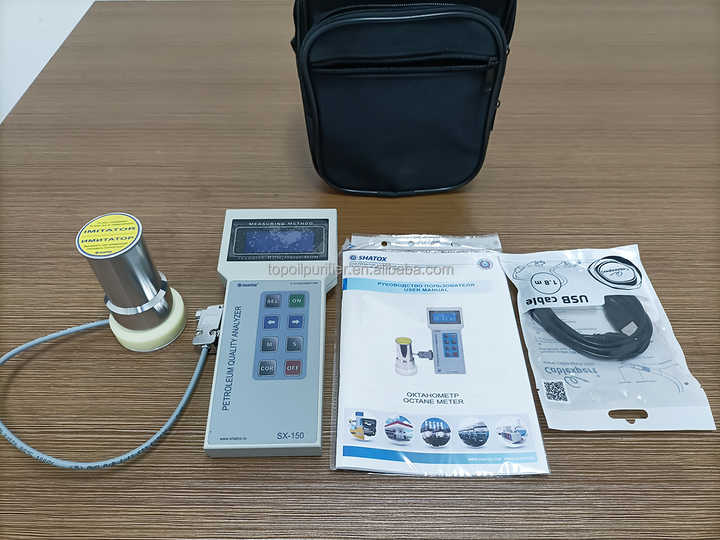

The SX-150 analyzer is designed for testing fuel quality. It is a portable small-sized device intended for rapid analysis of oil products quality in field and laboratory conditions.
It is an upgraded generation of fuel analyzers that superseded SX-200 and was designed on the basis of SX-300 analyzer.
SX-150 has additional modes for determining gasoline oxidation breakdown time and kerosene percentage in diesel fuel.
The device can be used together with a PC or a laptop through a USB interface. SX-150 supports the automatic computer-based calibration. Measurement results, including the analysis date and time, can be saved in the instrument memory and transferred to the PC (in .xlsx or .txt format).
SX-150 has an 8-key antiglare keyboard, which is easy for operation, wear-proof and resistant to aggressive environments.
The software for the instrument can be downloaded from the manufacturer’s website www.shatox.com in Download section.
Operating conditions: air temperature range from -10°С up to +45°С.
The device is powered from 4 elements of АА type (R6) or from a computer USB port.
Instrument capabilities:
- Gasoline octane level in compliance with ASTM D 2699-86, ASTM D 2700-86.
- Diesel fuel cetane level in compliance with ASTM D 4737-03, ASTM D 613, EN ISO 5165.
- Diesel fuel type and сold filter plugging point (СFPP) (reference parameter).
- Kerosene percentage in diesel fuel (reference parameter).
- Gasoline breakdown time (oxidation stability) (reference parameter).
Specifications SHATOX SX-150 Portable Octane / Cetane Analyzer
| Parameter description | Measurement units | Value |
| Range of measured gasoline octane level | ON | 40–135 |
| Acceptable limit of octane number measurement basic error, max | ON | ± 0.5 |
| Limit of acceptable difference between parallel octane number measurements, max | ON | ± 0.2 |
| Petrol oxidation breakdown time measurement range | min. | 50-2400 |
| Acceptable basic error limit of petrol oxidation breakdown time | min. | 10 |
| Range of measured cetane level | CN | 20–100 |
| Acceptable basic error limit of cetane numbers, max | CN | ±1.0 |
| Acceptable difference limit between cetane numbers parallel measurements, max | CN | ± 0.5 |
| Acceptable error limit when determining СFPP | C o | ± 5 |
| Kerosene content determination range in diesel fuels | % | 0-95 |
| Acceptable basic error limit when determining kerosene content in diesel fuels | % | 3 |
| Measurement time | sec | 1–5 |
| Insufficient power supply indication operation threshold | V | 5.4 |
| Instrument useful life | Years, minimum | 6 |
| Overall dimensions of: | ||
| electronic module | mm | 211x100x45 |
| sensor #1 | mm | 60х100 |
| Instrument mass with a sensor | gr | 680 |
