SHATOX SX-300 Portable Petroleum Quality Analyzer

Karya Mandiri Techindo has a wide range of SHATOX products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

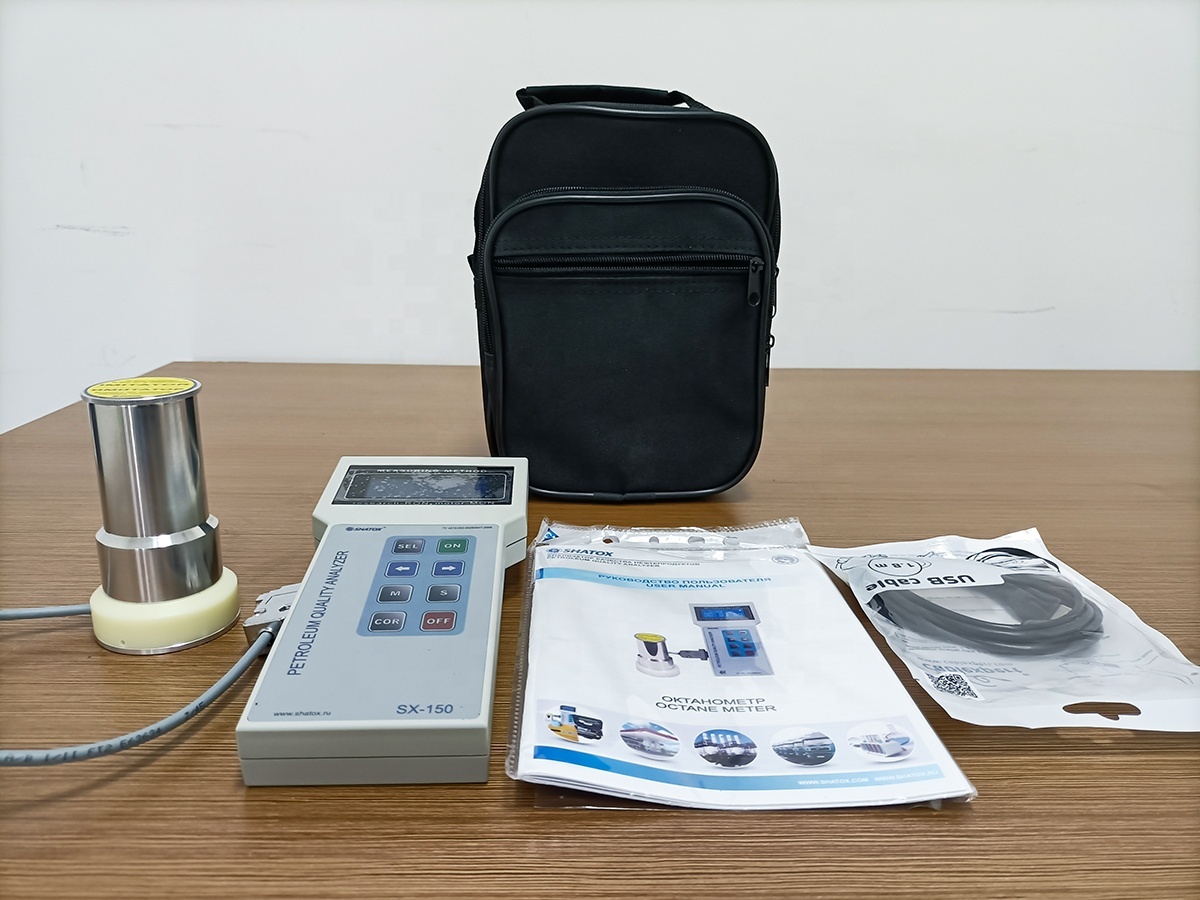

Product Image

New oil products grade analyzer is manufactured on the basis of advanced high precision microprocessor. The instrument can be used together with a PC or laptop through USB interface. Analyzer uses automatic computer-based calibration, saving measured data in the instrument memory with analysis date and time followed by their transfer to the PC (in Microsoft Excel or txt format). The instrument has easy of control attrition and aggressive environments resistive 8-key antiglare keyboard (made in Germany).

Analyzer SX-300 has a distinctive characteristic, an additional sensor, which measures oil products volume resistivity with high precision. Therefore, fuel analysis may be based on two values, which allows measuring octane number of petrols with ferriferous (ferrocene), nickel and manganese additives, and to determine other substances content.
By using this measurement principle the instrument allows to determine:

contamination content in oil products
antiknock ferrous octane boosters
engine oil base number
oil products electric conductivity

When determining petrol breakdown time, the petrol brand is selected in the instrument. The instrument switches to corresponding operating mode. Oxidative stability determination complies with GOST 4039-88 (ASTM D 525)

Motor oil brand identification is based on the permittivity determination principle. Genuine motor oils have certain value for this characteristic. Leading manufacturers’ oil brands are included into the instrument database (the database can be renewed or changed).

The instrument uses the timer microchip, which allows storing measurement results with analysis date and time. These data can also be transmitted to the computer.

New computer software is included into the set.
– measurement results are reflected on computer screen in convenient form;

Instrument capabilities:

Determining octane numbers for motor gasoline. Complies with ASTM D 2699-86, ASTM D 2700-86.
Determining cetane numbers for diesel fuel. Complies with ASTM D 4737-03, ASTM D 613, EN ISO 5165.
Cold filter plugging point and diesel type.
Content of antiknock ferrous octane boosters.
Content of water in diesel fuel.
Content of kerosine in diesel fuel.
Content of lube in gasoline.
Petrol breakdown time (oxidative stability). Complies with ASTM D 525.
Loss angle tangent and breakdown voltage of transformer oil.
Level of engine and industrial oil clarity.
Engine oil grade.
Engine oil base number.
Relative dielectric permittivity of oil products.
Oil products electric conductivity.
Determining the mechanical impurities content in oil products.
* – reference parameter

Specifications SHATOX SX-300 Portable Petroleum Quality Analyzer

Technical characteristics

Parameter description Measurement units Value

Measured petrols octane numbers range	ON	40–135
Acceptable limit of octane number measurement basic error, max	ON	± 0.5
Limit of acceptable difference between parallel octane number measurements, max	ON	± 0.2
The determination range of antiknock additives content in petrols	%	0.1-15
Acceptable basic error limit of antiknock additives content determination in petrols	%	0.1
Petrol oxidation breakdown time measurement range	min.	50-2400
Acceptable basic error limit of petrol oxidation breakdown time	%	10
Petrol quality determination mode basing on volume resistivity	Om	10 ⁶-10 ¹⁴
Acceptable basic error limit of volume resistivity measurements	%	3
Cetane numbers measurement range	CN	20–100
Acceptable basic error limit of cetane numbers, max	CN	±1.0
Acceptable difference limit between cetane numbers parallel measurements, max	CN	± 0.5
Acceptable error limit when determining diesel-fuel pour point	C ^o	± 5
Kerosine content determination range in diesel fuels	%	0-95
Acceptable basic error limit when determining kerosene content in diesel fuels	%	3
Motor oils clarity level measurement range	%	95-100
Acceptable error limit of motor oils clarity level measurement	%	0.1
Acceptable difference limit between motor oils clarity parallel measurements	%	0.01
Fuel and lubricants dielectric permeability measurement range	units	1–5
Acceptable error limit of dielectric permeability measurement, max	units	0.001
Acceptable difference limit between Fuel and lubricants dielectric permeability parallel measurements, max	units	0.001
Oils base number determination range	units	0-24
Acceptable basic error limit when determining oils basic number	BN units	1
Motor oils manufacturer and brand determination	Manufacturer	–
Circuit-breaker oils (dielectrics) breakdown voltage measurement range	kV	5–100
Acceptable error limit of circuit-breaker oils breakdown voltage measurement, max	kV	1
Acceptable difference limit between circuit-breaker oils breakdown time parallel measurements, max	kV	0.2
Measurement range of circuit-breaker oils loss angle tangen	%	0.01–5
Acceptable error limit of circuit-breaker oils loss angle tangent, max	%	0.01
Acceptable difference limit between circuit-breaker oils loss angle tangent parallel measurements, max	units	0.001
Determination range for mechanical impurities content in oil products	%	97-100
Acceptable basic error limit when determining mechanical impurities content in oil products	%	0.01
Water content determination range for diesel	%	0-4
Acceptable basic error limit when determining water content in diesel	%	0.01

Measurement time	s	1–5
Insufficient power supply indication operation threshold	V	5.4
Instrument useful life	years	6
Overall dimensions of:
electronic module	mm	211x100x45
sensor #1 and #2:	mm	60х100
Instrument mass with one sensor/two sensors	gr	850

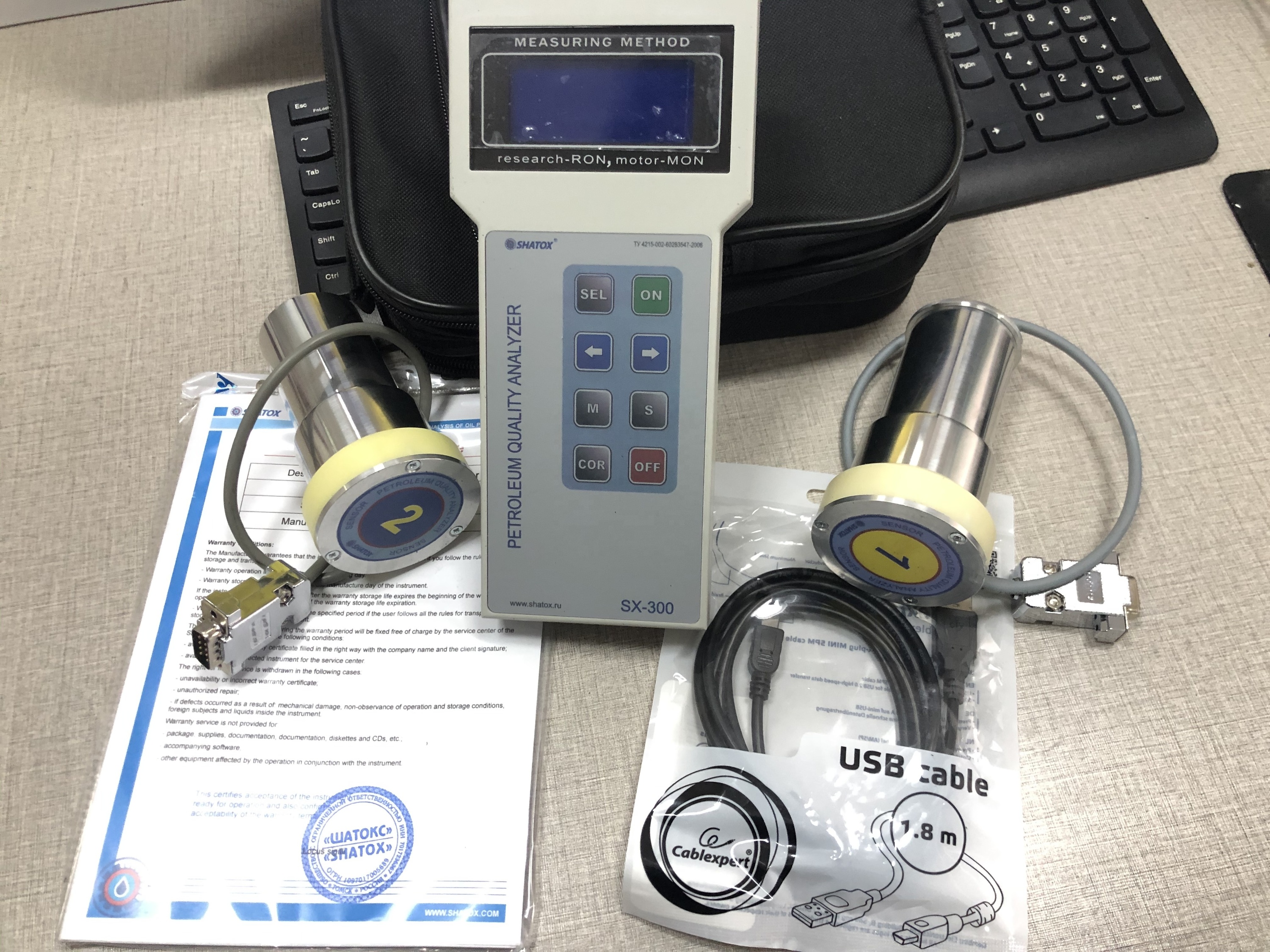

Delivery package:

Electronic computing module
Detector #1
Detector #2
Sample imitator for detector #1
mini-USB cable
Operations manual
Warranty certificate
Tool canvas bag
