Description

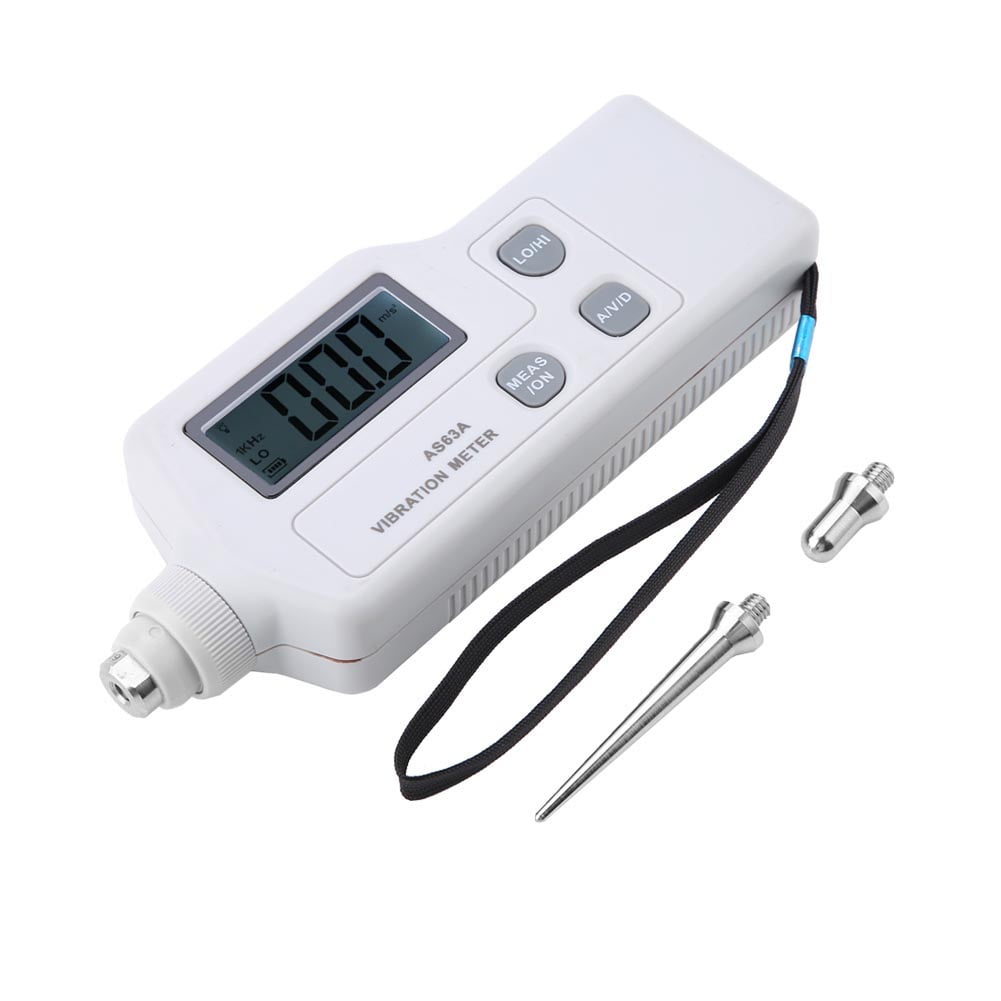

Smart Sensor AR63A Vibration Meter

Karya Mandiri Techindo has a wide range of Smart Sensor products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Smart Sensor model AR63A is a vibration meter that measures displacement (Displacement) in the measurement range of 0.001~1.999mm PP and measures velocity (Velocity) in the measurement range of 0.1~199.9mm/s RMS and acceleration (Acceleration) in the measurement range of 0.1~199.9m/s2 Peak with an accuracy of ±5%.

Vibration meter(also called vibration severity) uses Piezoelectric Acceleration Transducer transfer the vibration signal in to electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration. It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.

Features Smart Sensor AR63A Vibration Meter

Acceleration measurement range 0.1-199.9m/S2 peak(rms*v2) Certificate of Calibration
Velocity measurement range 0.1-1999.9mm/s rms
Displacement measurement range 0.001-1.999mm pp(rms*2v2)
Accuracy +/-5%+/-2digits
Frequency response in measurement
Acceleration 10Hz-1KHz(LO) 1KHz-15KHz(HI)
Velocity/Displacement 10Hz-1KHz
Output data (port) : AC 2V Peak , Load
Measurement format: Acceleration, Velocity, Displacement
Measurement resolution 1 second
Low battery indication, auto power off

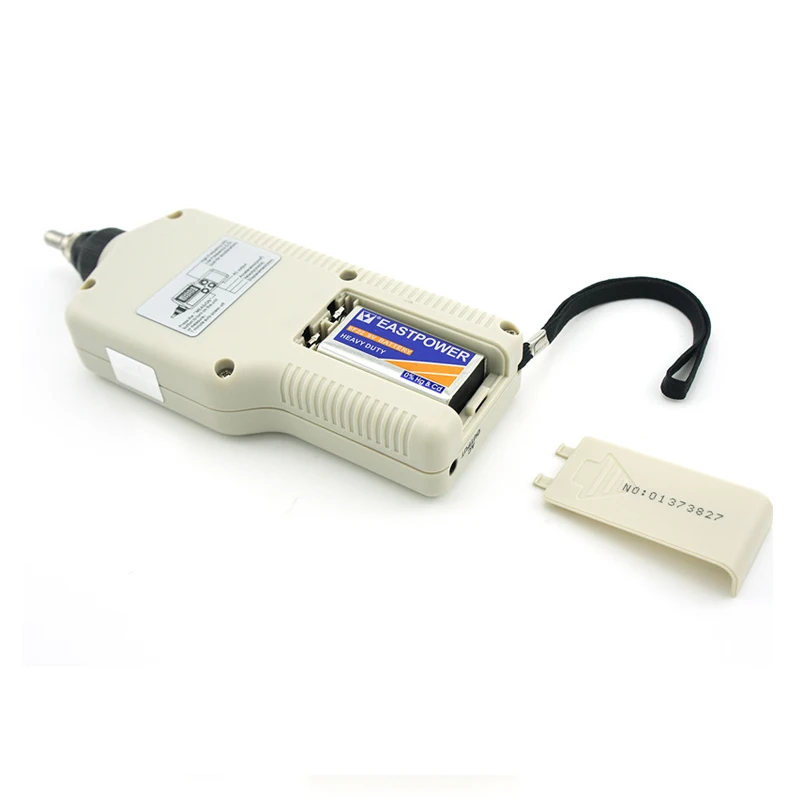

Uses 9 volt batteries. Can be used continuously for about 25 hours.
Weight 147 grams
Size 183x67x30mm (7.2×2.64×1.18 inch)

Specifications Smart Sensor AR63A Vibration Meter

Measuring Principle	Piezoelectric Ceramic Accelerometer (shear-type)
Acceleration Range	0.1~199.9m/s2
Velocity Range	0.1~199.9m/s
Displacement Range	0.001~1.999mm
Acceleration Frequency Range	10Hz~1KHz (LO) 1KHz~15KHz (HI)
Velocity Frequency Range	10Hz~1KHz
Displacement Frequency Range	10Hz~1KHz
Accuracy	±5%H ±2 digits
Signal Output	AC output 2V peak ( Display full scale )
Max Hold Function	—
Temperature Measurement	—
℃/℉Selection	—
Power	9V Battery
Product Net Weight	147g
Product Size	1836730mm

Smart Sensor AR63A – Datasheet
