Product Description

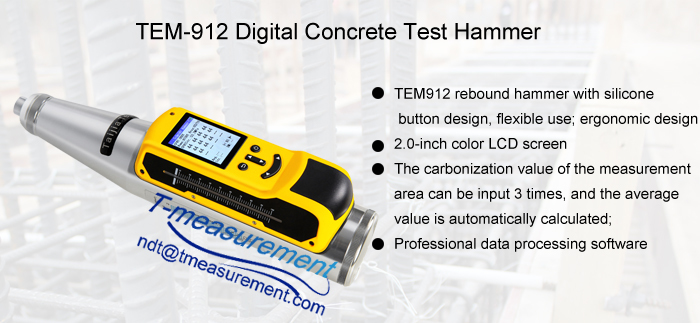

TEM-912 Digital Concrete Test Hammer
Karya Mandiri Techindo has a wide range of Hammer Test products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
TEM 912 is a device to measure the elastic properties or strength of concrete, mainly surface hardness. TEM 912 digital test hammer automatically record, save, calculate and process data. It automatically record rebound value, DM (Carbonation depth) input, and component strength calculate.
Specifications TEM-912 Digital Concrete Test Hammer
|
Standard impact energy
|
2.207J
|
|
Rigidity of tension spring
|
785.0±40.0(N/m)
|
|
Pointer length:
|
20.0±0.2(mm)
|
|
Pointer friction
|
0.65±0.15(N)
|
|
Working length of bounce tension spring
|
61.5.0±0.3(mm)
|
|
Spherical radius of the end of the bounce rod
|
25±1.0(mm)
|
|
Impact Hammer Impact Length
|
75±0.3
|
|
Anvil rate setting
|
80±2(Our factory products are controlled between 80-81
|
|
Error range for digital displayer
|
<=+-1(the difference between displayer and scale)
|
|
Display
|
2.0inch （220×176 pixels ）
|
|
Output Mode
|
Cable (Update version have WIFI, Bluetooth)
|
|
Storage Capacity
|
2000 pcs, 640 thousand data
|
|
Turn off
|
Automatic turn off without operation
|
|
Power supply
|
3.7V Lithium battery, 1050 mA
|
|
Port
|
USB (update type Bluetooth and WIFI. )
|
|
Collection Mode
|
Automatic display and record data
|
|
Size(mm）
|
150×62×39
|
|
Weight（kg）
|
0.1kg（include battery）
|
|
Color
|
Yellow
|
|
Rebound Hammer type
|
Digital concrete test hammer
|
KARYA MANDIRI TECHINDO adalah Supplier TEM-912 Digital Concrete Test Hammer dan juga menjual Brand Hammer Test. Lihat produk kami lainnya di sini JSI, SGI, SMG atau hubungi kami lewat Whatsapp 0821-3010-0456 atau via email [email protected].
