Product Description

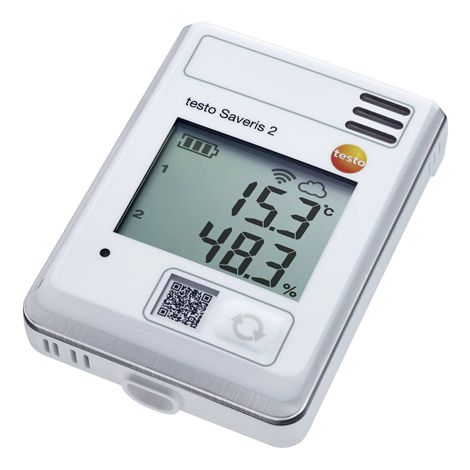

Testo Saveris 2-H1 WiFi Data Logger With Display
CV. Karya Mandiri Techindo has a wide range of Testo products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
The testo Saveris 2 WiFi data logger system is the easy, versatile and reliable solution for the measurement and monitoring of temperature and humidity values in your storage, refrigerated and work rooms. Installing the system is child’s play and can be carried out via a browser.
Humidity and temperature monitoring with testo Saveris 2
The humidity and temperature monitoring system consists of at least one WiFi data logger and a Cloud access (online data store). As a component of this data logger system, the testo Saveris 2-H1 temperature and humidity data logger with integrated temperature and humidity probes stores all measured values and transmits them directly by wireless LAN to the Testo Cloud. You can use the alarm function to receive immediate warnings by e-mail or SMS (optional) when limit values are violated.
The Testo Cloud packages: Basic (free) and Advanced
The Testo Cloud is the core operating element for setting up your testo Saveris 2 system. Here you can configure your WiFi data loggers, set limit value alarms and analyze your measurement data. You can access all measuring values and analysis functions anywhere and at any time with an internet-capable smartphone, tablet or PC. You must first register at www.saveris.net to have access to the Testo Cloud.
| Basic (free) | Advanced | |
| Measuring cycle | 15 min. … 24 h | 1 min. … 24 h |
| Communication cycle | 15 min. … 24 h | 1 min. … 24 h |
| Data storage | Max. 3 months | Max. 2 years |
| Reports | Manual (.pdf/.csv) | Manual (.pdf/.csv) Automatic (.pdf/.csv) |
| Number of users per account | 1 | 10 |
| Number of WiFi data loggers per account |
Unlimited | Unlimited |
| Alarm options | Upper/lower alarm limits | • Upper/lower alarm limits • Alarm delay • Time control of alarms |
| System notifications | • Notification of low battery • Radio link interrupted • Power supply interrupted |
• Notification of low battery • Radio link interrupted • Power supply interrupted |
| E-mail alarm | Yes | Yes |
| SMS alarm | No | • Including 25 SMS per logger and year • Option of purchasing additional SMS packages |
| Measurement data export (API interface) | No | Yes |
WiFi data logger: advantages and functions
Current measuring values, limit value violations and the remaining battery life can be seen in the data logger’s display. The standard batteries (AA) have a lifetime of 12 months and can be replaced at any time by users themselves. The internal data memory of the WiFi data logger has a capacity of 2 x 10,000 readings and the housing is protected according to IP30.
Delivery Scope
- testo Saveris 2-H1 WiFi data logger
- Including free Cloud access (basic functionality)
- Micro USB cable
- Wall bracket with lock
- Batteries (4 x AA AlMn Mignon batteries)
- Short instructions
- Calibration protocol
Technical Data
| Temperature – NTC | |
|---|---|
| Measuring range | -30 to +50 °C |
| Accuracy | ±0.5 °C |
| Resolution | 0.1 °C |
| Humidity – Capacitive | |
|---|---|
| Measuring range | 0 to 100 %RH |
| Accuracy | ±2 %RH |
| Resolution | 0.1 %RH |
| General technical data | |
|---|---|
| Weight | 250 g |
| Dimensions | 115 x 82 x 31 mm |
| Operating temperature | -30 to +50 °C |
| Protection class | IP30 |
| Measuring rate | Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h |
| Door contact | – |
| Communication rate | Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h |
| WLAN Connectivity | Signal transmission: wireless, frequency band: 2.4 GHz, supported wireless LAN standards: IEEE 802.11 b/g/n and IEEE 802.1X; Possible encryption methods: without encryption, WEP, WPA, WPA2, WPA2 Enterprise – The data loggers communicate via the standard protocol MQTT and are SNTP time synchronization-capable. |
| Power supply | 4 x AA AlMn batteries; mains unit optional; for temperatures below -10 °C please use Energizer batteries 0515 0572 |
| Memory | 10,000 measurement values / channel |
| Battery life | 12 months (typical value, depending on the wireless LAN infrastructure) at +25 °C, 15-minute measuring cycle and standard communication cycle at -30 °C, 15-minute measuring cycle and standard communication cycle with Energizer batteries 0515 0572 |
| Storage temperature | -40 to +70 °C (without batteries) |
Testo Saveris 2-H1 – Datasheet
