UNI-T UDP3303A Power Supply DC 3Ch Classic-Series Linear

Karya Mandiri Techindo has a wide range of UNI-T products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

The UDP3303A Non-Programmable DC power supply is a cost-effective program control DC power supply with outstanding performance, reliable output and clear interface. The UDP3303A DC power supply has three independent outputs. Two of them are adjustable outputs of 30V/3A, the other one is a fixed selectable output of 1.8V/2.5V/3.3V/5V/3A (fine adjustable). With the constant voltage (CV) and constant current (CC) modes,short circuit and overvoltage protection features, the instrument can perfectly meet various test requirements.

Features UNI-T UDP3303A Power Supply DC 3Ch Classic-Series Linear

3 CH outputs，High precision Display

3 independent outputs, 4-digit voltage and current high-precision display: 10mV/1mA

Five sets of settings to save and recall

Five groups of M1–M5 settings are saved and recalled, long press to store and short press to recall, making the test work efficient and convenient.

Buzzer switch and key lock function, shutdown memory function, SET VIEW function

Buzzer switch: switch the buzzer according to the working environment
Key lock function: prevent accidental touch and wrong setting during normal working process
Shutdown memory function: restore the last saved setting value next time the machine is turned on SET
VIEW function: call preset value with one key

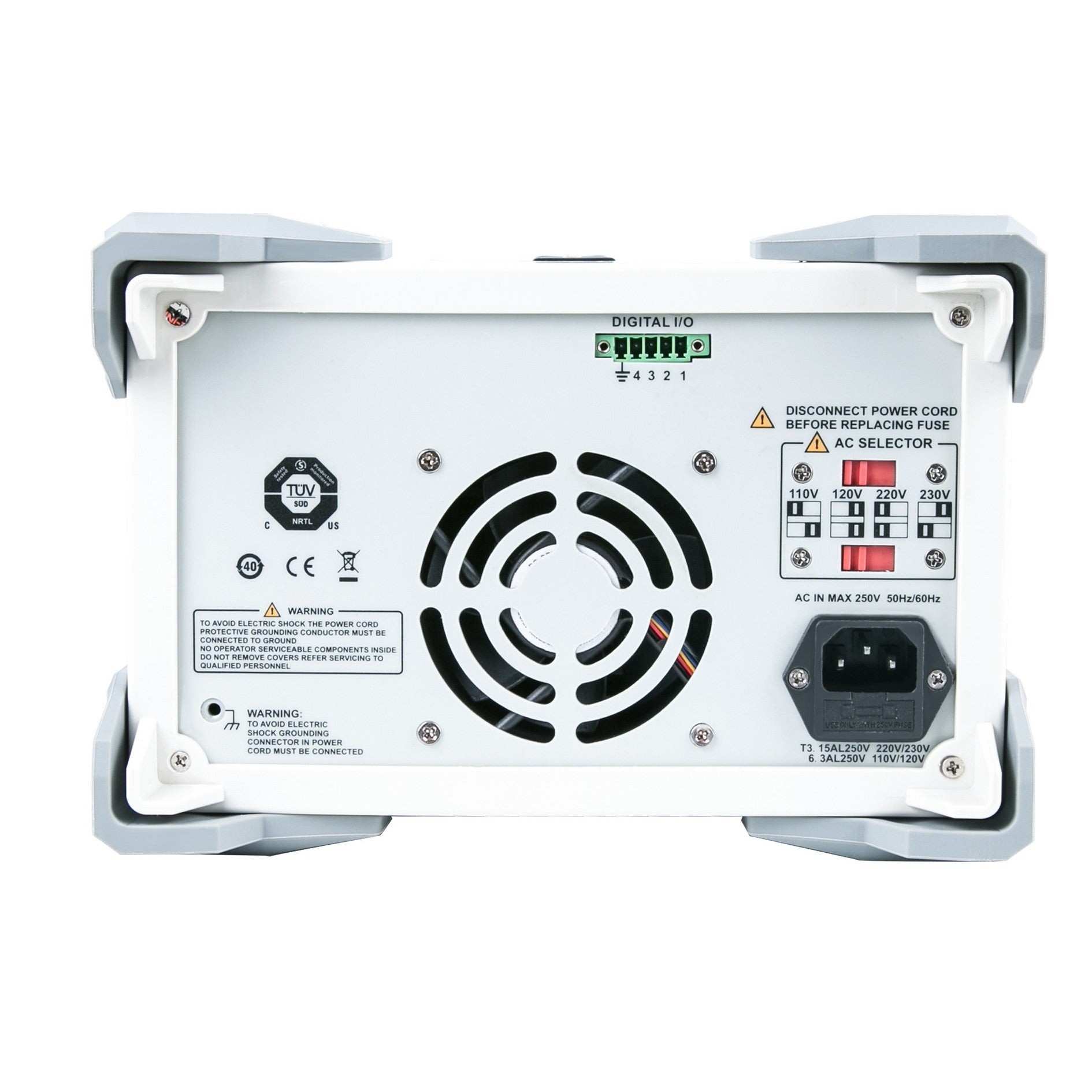

Remote control DIGITAL I/O interface

The remote control power supply CH1/CH2 channels can be output and closed through DIGITAL I/O terminals

Specifications UNI-T UDP3303A Power Supply DC 3Ch Classic-Series Linear

Model Number	UDP3303A
Channels	3Ch
Power Supply Type	DC Linear
Max V DC	30V
Max A DC	3A
Watts	195W
Max V Resolution	10mV
Max A Resolution	1mA
Max A DC	3A
Max A Resolution	1mA
Touchscreen	No
Warranty	3 years
Product Dimensions (L x W x H)	9 in x 14 in x 7 in
Product Weight	19 lb
Certifications	CE/cTUVus
Documents	English download guide, multi-language safety manual
Included Accessories	Alligator clip test lead (red + black)*2
Standard Accessories	Power cord

Video

UNI-T UDP3303A – Datasheet
