Description
3NH NR145 Portable Colorimeter
Karya Mandiri Techindo has a wide range of 3NH products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

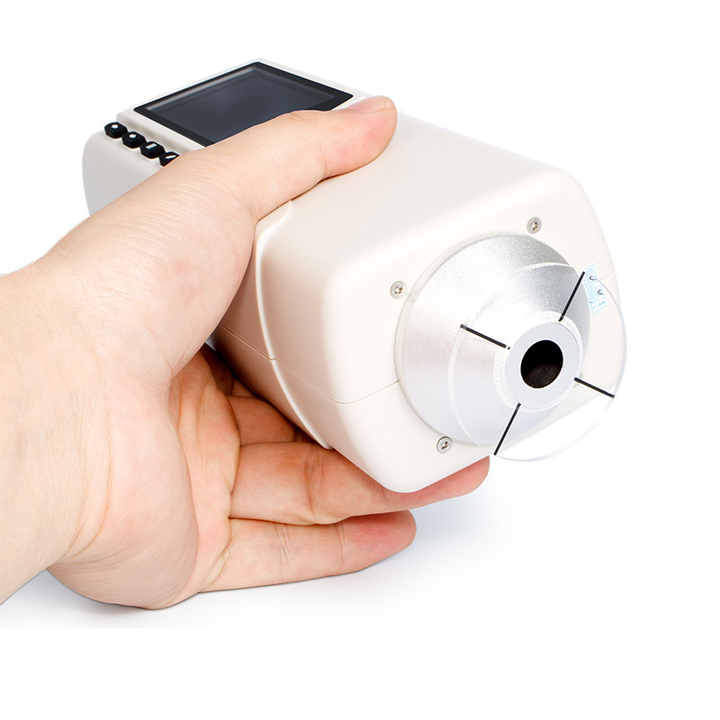

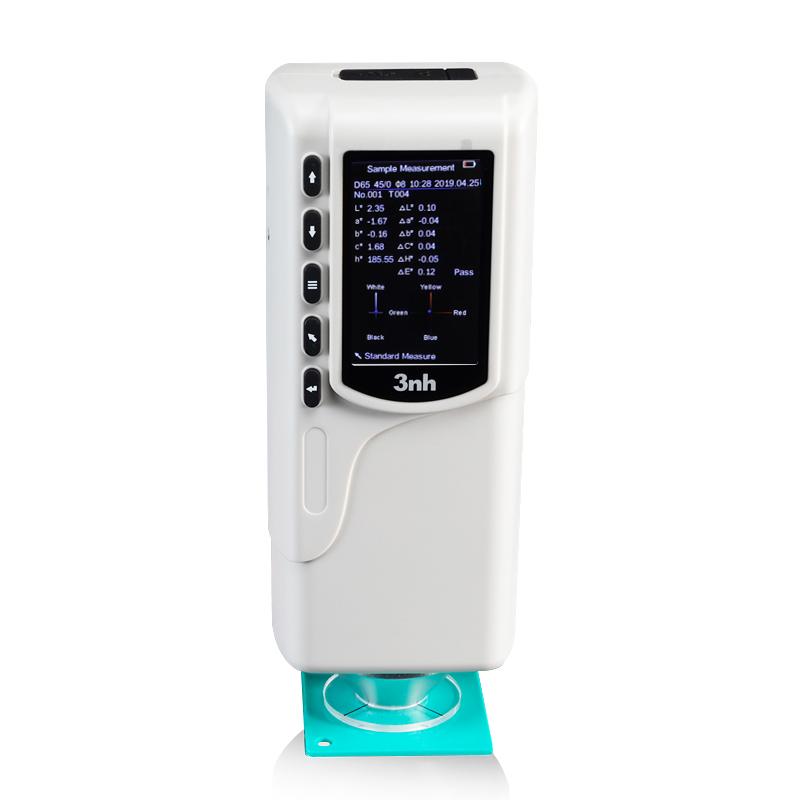

NR145 Precision Colorimeter
3nh R&D team concentrates on customer needs and develops series of high-cost and high-quality products. NR145 is a precision colorimeter with 45°/0° viewing angle after NH310, NH300, NR200, NR110 and NR100 colorimeter. NR145 colorimeter has strong functions which applied a number of differential innovative technologies. It can measure accurately in 45° illumination /0° receiving under the SCE mode.
Features 3NH NR145 Portable Colorimeter
- Built-in white plate parameters. No need to calibrate each time which can perform measurement quickly.
- Double Locating: Illuminating locating and precise cross locating.
- Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.
- New 45°/0° Optical Path Design: Significantly improve the measurement stability and precision.
- 8mm Measuring Aperture.
- Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
- Configure CQCS3 software. Connect PC computer to realize more functions.
- Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System
- Certification.
- Hand-head structure: small and convenient; make the measurement easier.
- Exquisite appearance: adopts traditional and fashionable aesthetic designs.
Specifications 3NH NR145 Portable Colorimeter
3nh | NR145 |
Illuminating/Viewing Geometry | 45°/0° |
Measuring Aperture | Φ8mm |
Measurement End-face | Large stable end face |
Detector | Silicon photoelectric diode |
Locating | Illuminating Locating/Cross Locating |
Color Space | CIEL*a*b*C*h* CIEL*a*b* CIEXYZ |
Color Difference Formula | △E*ab △L*a*b* △E*C*h* |
Light Source | D65 |
Light Source Device | LED blue light excitation |
Errors Between Each Equipment | ≤0.80ΔE*ab |
Storage | 100pcs standards 20000pcs samples |
Repeatability | Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate |
Weight | 500g |
Dimension | 205×67×80 mm |
Power source | Rechargeable lithium-ion battery 3.7V@3200mAh |
Lamp Life | 5 years, more than 1.6 million measurements |
Charging Time | The first charging time is 8 hours–100% electricity |
PC Software | CQCS3 Software |
Printer (optional) | Miniature thermal printer |
3NH NR145 – Datasheet
