Product Description
AZ Instrument AZ-8778 WBGT Checker
Karya Mandiri Techindo has a wide range of AZ Instrument products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Features AZ Instrument AZ-8778 WBGT Checker
- Check Indoor/outdoor WBGT, TA/TG and Humidity
- Very useful tool to prevent heat stroke
- Check dangerous heat condition through WBGT
- Programmable audible beeper for danger zone warning

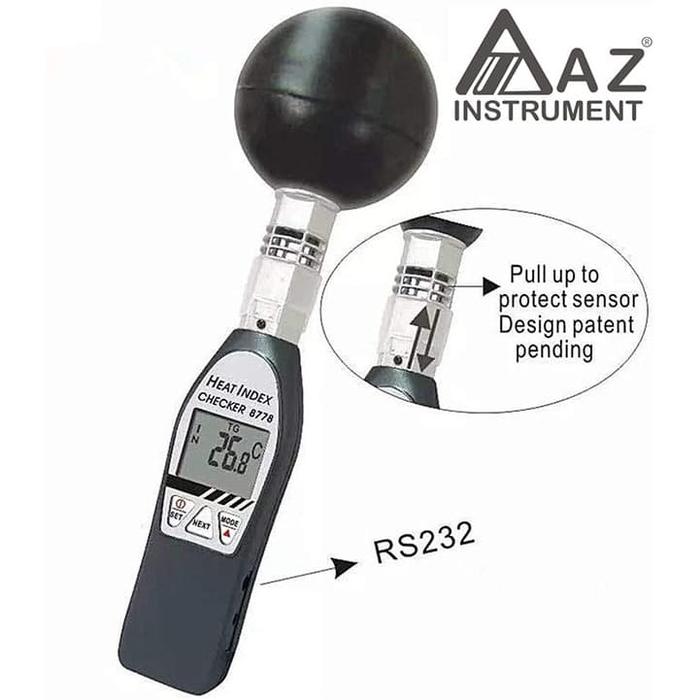

- The black ball thermometer is for measuring radiant temperature with a 75 mm dia. black ball
- Protect sensors with a clear sheath moving up and down
- Easy to self calibrate relative humidity with 33% & 75% salt bottle by moving the black ball and clear tube
- Tripod receptacle design for long time temperature monitoring
- Built-in PC interface for real time download and data analysis
- Adjustable WBGT alarm threshold
Application
The Wet Bulb Globe Temperature (WBGT) is a composite temperature used to estimate the effect of temperature, humidity, wind speed and solar radiation on humans.
The 8778 AZ Portable WBGT Metercould measure the Heat Stress in direct sunlight. The WBGT measurement had been considered as a good element for monitoring the outdoor activities and Prevent people to get Heat Stroke.
It is used by industrial hygienists, athletes and military to determine appropriate exposure levels to high temperatures. Military agencies, OSHA and many nations use the WBGT as a guide to managing workload in direct sunlight.
The 8778 AZ Portable WBGT Metercould measure the indoor/ outdoor WBGT, TA/TG and Humidity. User could download the real time value via USB cable to PC. It could be applied for measuring the WBGT value in construction, iron and steel foundries, bricks-firing plants, glass facilities, boiler rooms, mining sites, army training, marathon, beach activities and so on.
The 8778 AZ Portable WBGT Checkerwas being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring.
Specification AZ Instrument AZ-8778 WBGT Checker
| Model | 8778 | ||
| Temperature Range | 0~50℃ | ||
| Temperature Resolution | 0.1℃, 0.1℉ | ||
| Temperature Accuracy | ±0.6℃ | ||
| Humidity Range | 0.1~99.9% RH | ||
| Humidity Resolution | 0.1% RH | ||
| Humidity Accuracy | ±3%RH (at 25℃, 10~90%RH); others ±5%RH | ||
| Global Temperature (Inside Black Ball) | 0~80℃ | ||
| Global Temp. Accuracy (Indoor) | ±1℃at 15~40℃, others ±1.5℃ | ||
| Global Temp. Accuracy (Outdoor) | ±1.5℃at 15~40℃, others ±2℃ | ||
| Black Ball Size | Diameter 75 mm, Height 75 mm | ||
| Stabilization Time | 15~25 minutes typical | ||
| RH% Self Calibration | With 33% & 75% Salt Bottle | ||
| Operating Temperature | 0~50℃ | ||
| Operating RH% | Humidity ＜80% | ||
| Storage Temperature | -20~50℃ | ||
| Storage RH% | Humidity ＜90% | ||
| LCD Size | 33(L) * 28(W) mm | ||
| Meter Size | 278.2(L) * 75(W) * 75(H) mm | ||
| Weight | ~140g | ||
| Battery | AAA*2PCS | ||
| Battery Life | ＞250 hours | ||
| Standard Package | Meter, Batteries, Manual, Paper Box | ||
| Optional Accessory | USB Software Kit, 33% & 75 % Salt Bottle |
AZ Instrument AZ-8778 – Manual
