Product Description

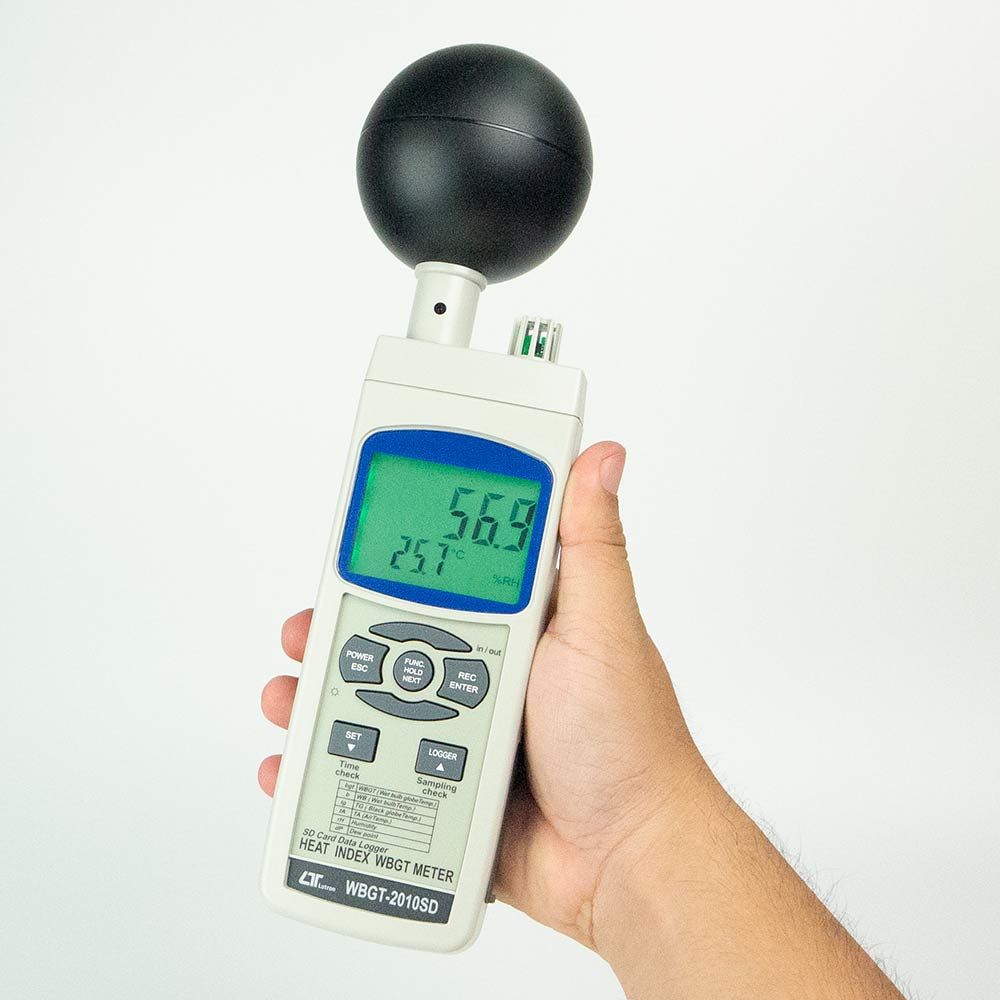

Lutron WBGT-2010SD Heat Index WBGT Tester – SD Card Data Logger

Lutron WBGT-2010SD 4 in 1 Measurement: WBGT value (Indoor/ Outdoor Wet bulb globe), Temperature, Humidity, Globe Temp, Dew point and Wet bulb. Adjustable WBGT alarm setting, Hold data, Records Min./ Max., Auto Power Off, RS232/USB PC interface.

Real Time data logger both Auto and Manual with SD Memory Card (supports 1 to 16 GB), The innovation and easy operation, no need to setup software, just put the SD Card into the computer. You can open file data as Excel directly. Sampling Time setting range from 1 to 3600 seconds with Built-in Clock & Calendar will show with the value.

▼ EXCEL data screen (for example)

Features Lutron WBGT-2010SD Heat Index WBGT Tester :

Measurement : WBGT value (Indoor/Outdoor Wet bulb globe temperature), Black globe temperature, Humidity, Air temperature, Wet bulb temperature, Dew point Temp.
Adjustable WBGT alarm setting, if the WBGT value over the alarm threshold, the buzzer will sound along with the flashing Display
Using to control and monitor of physical activity in hot environment to limit the danger of heat related injuries
Globe temperature measurement use the Pt sensor, high accuracy
Fast humidity measuring response time
Direct measurement of the radiation effect with a brass black ball in 75 mm dia
Sensor protecting mechanism
Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds
Manual datalogger is available (set the sampling time to 0), during execute the manual datalogger function, it can set the different position (location) No. (position 1 to position 99)
LCD with green light backlight, easy reading
Can default auto power off or manual power off
Data hold, record max. and min. reading
Microcomputer circuit, high accuracy
Power by UM3/AA (1.5 V) x 6 batteries or DC 9V adapter
RS232/USB PC COMPUTER interface

Specifications Lutron WBGT-2010SD Heat Index WBGT Tester :

Measurement	Range	Resolution	Accuracy
WBGT (Indoor)	0 to 59ºC	0.1ºC	± 1ºC (15 to 59ºC), ± 1.5ºC
WBGT (Outdoor)	0 to 56ºC	0.1ºC	± 1.5ºC (15 to 56ºC), ± 2ºC
Temperature	0 to 50ºC	0.1ºC	±0.8ºC
TG (Black Globe Temp.)	0 to 80ºC	0.1ºC	± 0.6ºC
Humidity	5 to 95% R.H.	0.1% R.H.	± 3% RH (< 70% RH) ± (3% reading + 1% RH)
Dew point	-25.3 to 48.9ºC	0.1ºC	—
Wet bulb	-21.6 to 50.0ºC	0.1ºC	—
Circuit	Custom one-chip of microprocessor LSI circuit
Sampling time	1 second
Data storage	SD memory card 1 to 16 GB
Interface	RS232, USB PC interface
Functions	Data hold, Record max./ min., Auto power off
Power requirements	Battery AA x 6
Dimensions/ Weight	177 x 68 x 45 mm/ 489 g

Standard Accessories included:	Instruction manual 1 PC Black brass ball ( with sensor ) 1 PC Soft carrying case, CA-05B 1 PC
Optional Accessories:	Batere AA (1.5Volt)= 6pcs SD Card AC to DC 9V adapter. USB cable, USB-01. Data Acquisition software,SW-U801-WIN
