Product Description

Benetech GT230 Film Coating Thickness Gauge

Karya Mandiri Techindo has a wide range of Benetech products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

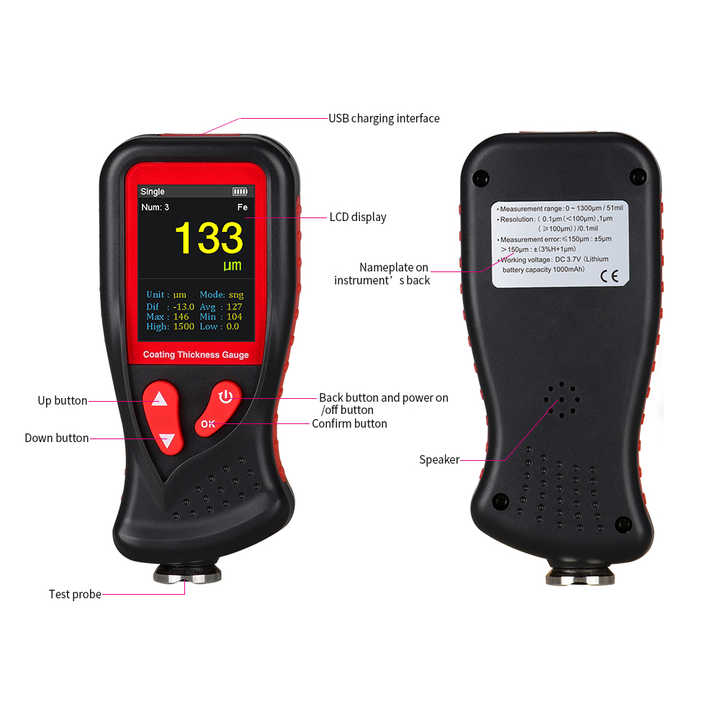

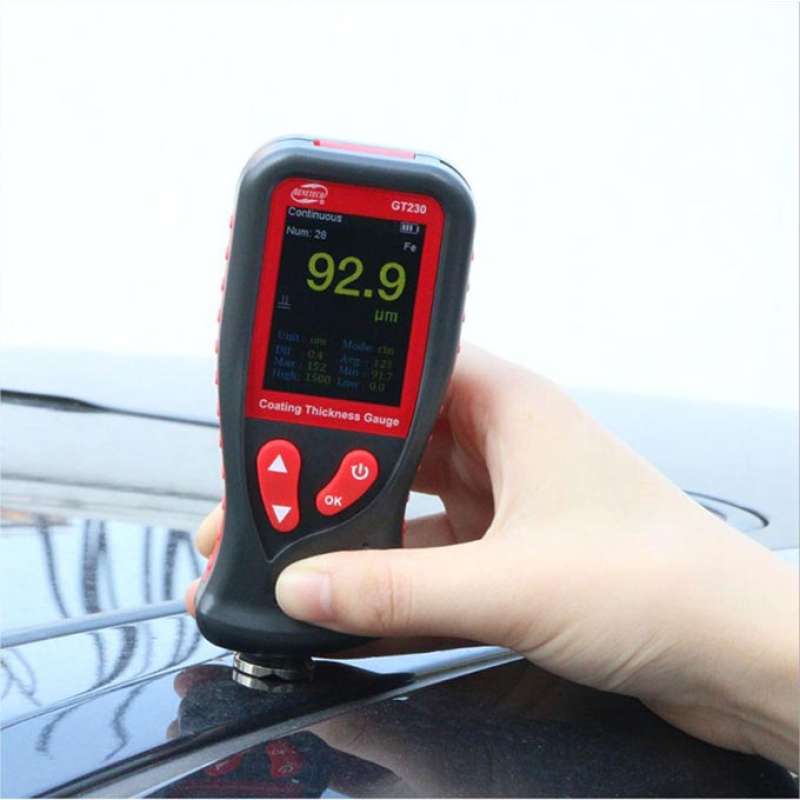

This product is a color-screen portable coating thickness gauge with highdefinition display, which can quickly, non-destructively and accurately me-asure non-magnetic coating thickness on magnetic metal substrates and non-metallic coating thickness measurement on non-magnetic metal sub-strates. At the same time it can automatically identify magnetic metal substrate and non-magnetic metal substrate, and is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing areas.

Features Benetech GT230 Film Coating Thickness Gauge

Menu operation and color-screen HD display
Thickness measurement of non-magnetic coating on magnetic metal substrate surface and non-metallic coating on non-magnetic metal substrate
Two measurement methods: single measurement, continuous measurement
Basic calibration and Zero-point calibration available
Metric/imperial unit and storage function
Screen rotation, charge protection, multi-interface displays, screen brightness selection
Automatic shutdown

Specifications Benetech GT230 Film Coating Thickness Gauge

Measurement range	0 ~ 1300um/51mil
Resolution	( 0.1μm(<100μm),1μm( ≥100μm))/0.1mil
Measurement error	≤150μm ±5μm
Measurement error	＞150μm ±(3%H+1μm)
Minimum diameter of magnetic metal substrate	12mm
Minimum thickness of magnetic metal substrate	0.5mm
Minimum radius of curvature for magnetic convex substrate	2mm
Minimum radius of curvature for magnetic concave substrate	11mm
Minimum diameter of non-magnetic metal substrate	50mm
Minimum diameter of non-magnetic metal substrate	50mm
Minimum thickness of non-magnetic metal substrate	0.5mm
Working voltage	DC 3.7V (Lithium battery capacity 1000mAh)
Size	52.926117mm
Weight	102.4g(including battery)
