Product Description

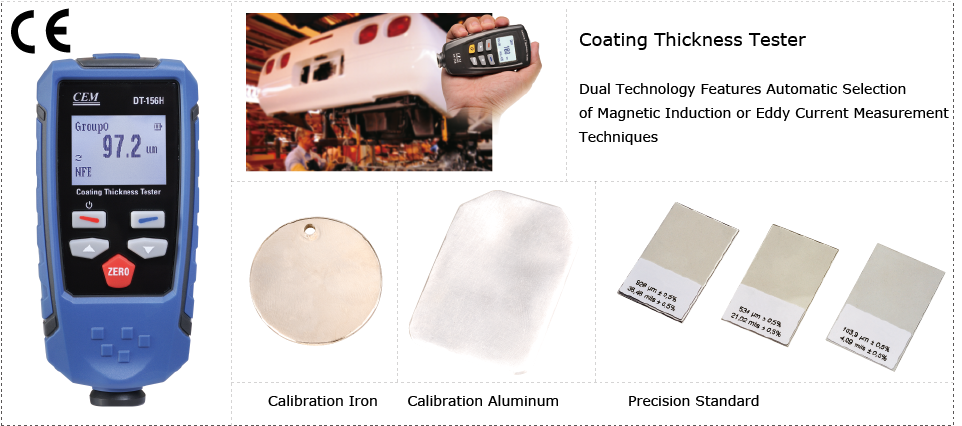

CEM DT-156H Coating Thickness Gauge
Karya Mandiri Techindo has a wide range of CEM products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Dual Technology Features Automatic Selection of Magnetic Induction or Eddy Current Measurement Techniques
Non-magnetic coatings (e.g. paint, zinc) on steel
Insulating coatings (e.g. paint) on no-ferrous metals
No-ferrous metals coatings on insulating substrates
Menu operation system
Two working modes: DIRECT and GROUP mode
One point calibration, two points calibration and basic calibration easily
Delete single readings and all group readings easily
Low battery, error indication
USB interface for PC software
Features CEM DT-156H Coating Thickness Gauge
| Features |
DT-156 |
DT-156H |
| Non-magnetic coatings (e.g. paint, zinc) on steel |
* |
* |
| Insulating coatings (e.g. paint) on no-ferrous metals |
* |
* |
| No-ferrous metals coatings on insulating substrates |
* |
* |
| Menu operation system |
* |
* |
| Two measuring modes: CONTINUE and SINGLE mode |
* |
|
| Two working modes: DIRECT and GROUP mode |
* |
* |
| Statistic Display: AVG, MAX, MIN, NO., S.DEV |
* |
|
| One point calibration, two points calibration and basic calibration easily |
* |
* |
| Memory for 400 readings (80 DIRECT and 320 GROUP readings) |
* |
|
| Memory for 1500 readings ( 30 GROUP readings) |
* |
|
| Delete single readings and all group readings easily |
* |
* |
| High alarm and Low alarm for all working modes |
* |
|
| Low battery, error indication |
* |
* |
| USB interface for PC software |
* |
* |
| 4 levels of battery indication |
* |
|
| Error indication |
* |
|
| Easily adapt to lighting conditions with 8 levels of backlight |
* |
Specifications CEM DT-156H Coating Thickness Gauge
| Specifications |
DT-156 |
DT-156H |
||
| Sensor probe |
F |
N |
F |
N |
| Working principle | magnetic induction | Eddy current principle | magnetic induction | Eddy current principle |
| Measuring range | 0~1250um | 0~1250um | 0~1350um | 0~1350um |
| Guaranteed tolerance (of reading) | (+/- 3%+1)um | (+/- 3%+1.5)um | (+/- 2.5%+2)um | (+/- 2.5%+2)um |
| Repeatability | (+/- 1%+1)um | (+/- 1%+1)um | (+/- 1%+1)um | (+/- 1%+1)um |
| Low range Precision | 0.1um | 0.1um | 0.1um | 0.1um |
| Minimum curvature radius | 1.5mm | 3mm | 1.5mm | 3mm |
| Diameter of Minimum area | 7mm | 5mm | 7mm | 5mm |
| Basic critical thickness | 0.5mm | 0.3mm | 0.5mm | 0.3mm |
CEM DT 156H – Manual
