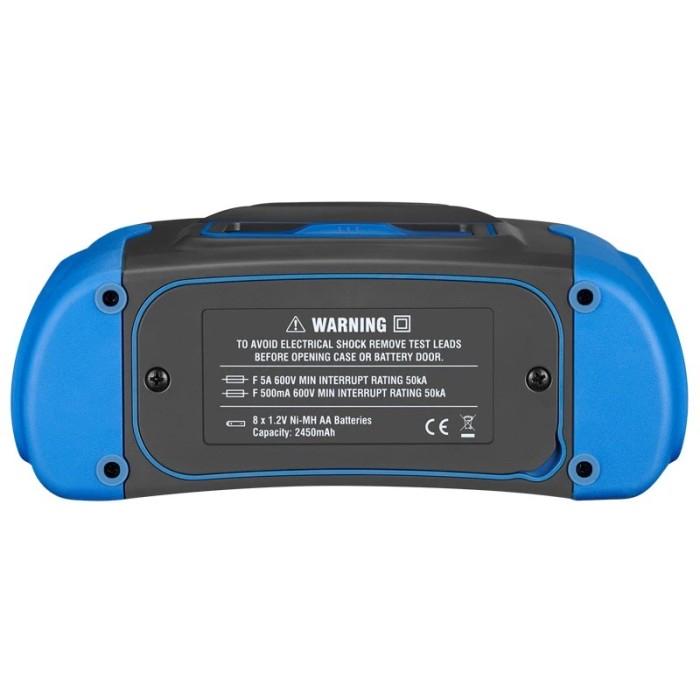

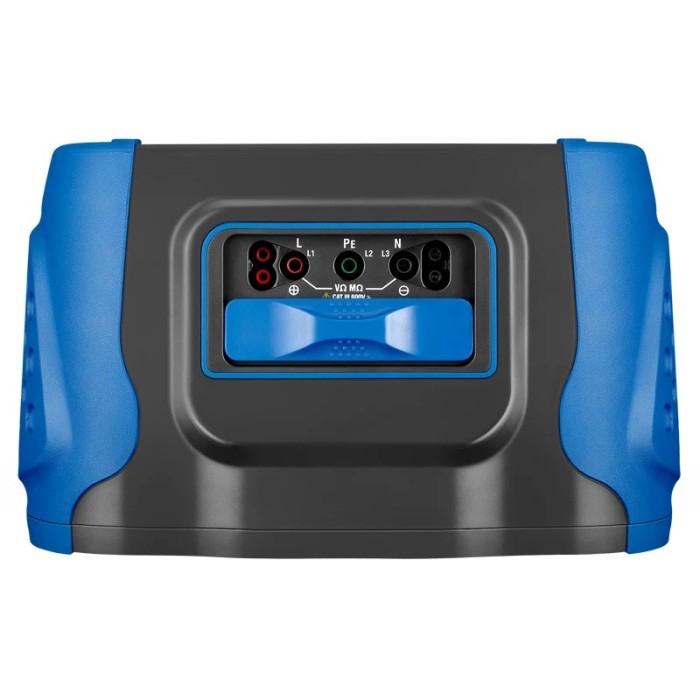

CEM DT-6650 Multifunction Installation Tester

Karya Mandiri Techindo has a wide range of CEM Instruments products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

DT-6650 rugged Multifunction Installation Tester with 3.5″ TFT color LCD display, provides insulation resistance, earth resistance, loop impedance, voltage, RCD, PFG and PSC testing. It is designed with software system and ensure the safety of electrical installations in domestic, commercial and industrial applications. 6650 series can ensure the fixed wiring is safe and correctly installed. It’s fast sampling and dual display, clear symbols and exceptionally wide viewing angle are for easy and safe readings.

Features CEM DT-6650 Multifunction Installation Tester

3.5″ TFT color LCD display with 320×240 pixels
Fast high current loop test
Variable RCD current mode for customized settings
PASS/FAIL indication for RCD tests
Select voltage measurement between L-N, L-PE and N-PE
Support SD memory and USB and Bluetooth interface
Internal Memory
Safe Earth Volt Touchpad detects raised earth voltages >50 V, indicating potential dangerous situations.
Slim probes designed with test button
For easy, always reliable and accurate compensation of test leads and mains cords.

Specifications CEM DT-6650 Multifunction Installation Tester

Insulation
Terminal Voltage	Range	Max Resolution	Accuracy	Test Current	Short circuit current
125V (0% ~ +10)	0.125~4000MΩ	0.001MΩ	±(2%+10)	1mA@load 125kΩ<span “=”” style=”box-sizing: border-box; margin: 0px; padding: 0px; cursor: default;”>	≤1mA
250V (0% ~ +10)	0.250~4000MΩ	0.001MΩ	±(2%+10)	1mA@load 250kΩ<span “=”” style=”box-sizing: border-box; margin: 0px; padding: 0px; cursor: default;”>	≤1mA
500V (0% ~ +10)	0.500~4000MΩ	0.001MΩ	±(2%+10)	1mA@load 500kΩ<span “=”” style=”box-sizing: border-box; margin: 0px; padding: 0px; cursor: default;”>	≤1mA
1000V (0% ~ +10)	1.000~4000MΩ	0.001MΩ	±(3%+10)	1mA@load 1MΩ<span “=”” style=”box-sizing: border-box; margin: 0px; padding: 0px; cursor: default;”>	≤1mA
Low OHM
Range	Resolution	Accuracy		Max. open Circuit Voltage	Overload Protection
4.000Ω	0.001Ω	±(1.5%+30)		5.8V	250Vrms
40.00Ω	0.01Ω	±(1.5%+3)
400.0Ω	0.1Ω
Continuity Beeper
Range	Resolution	Operation Resistance		Max. open Circuit Voltage	Overload Protection
Continuity	0.01Ω	Resistance≤35Ω		5.0V±1VDC	250Vrms
Short circuit current		≥200mA
LOOP Resistance
L-PE (Hi-Amp)
Range (Ω)		Max. Resolution (Ω)			Accuracy
0.00~999		0.01			±(4% of reading+6 digits)
L-PE(No Trip): Measuring Current:15mA / Range of the Voltage Used: 195V a.c.~260V a.c.(56,60Hz)
Range (Ω)		Resolution (Ω)			Accuracy
0.00~999		0.01			±(5% of reading+6 digits)
L-N: Measuring Current:2.0A / Range of the Voltage Used:195V a.c.~260V a.c.(56,60Hz)
Range (Ω)		Max. Resolution (Ω)			Accuracy
0.00~999		0.01			±(4% of reading+4 digits)
RCD Testing
Test current				Accuracy
x1/2, x1, x2, x5				1.5%~ -9%
Voltage and Frequency
Measurement Range (V)/ AC-DC		Resolution			Accuracy
80-500V/(45-400Hz)		1V			±(2% of reading+2 digits)
